Dynalink DL-WRX36 User Manual

5. SPECIFY ROUTER SETTINGS VIA WEB BROWSER
42
5.3.3 LAN

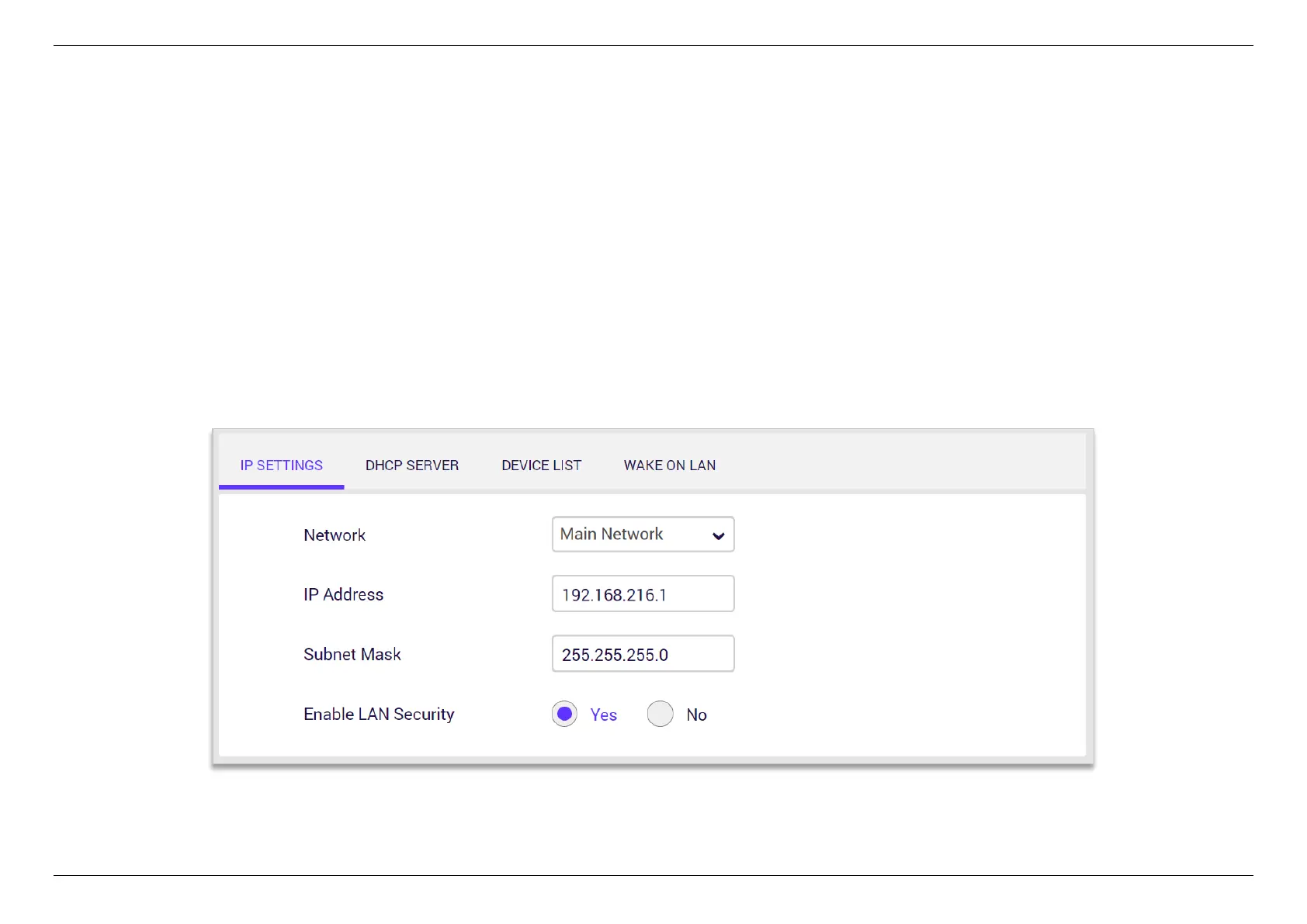

5.3.3.1 IP Settings
Manage IP settings for your local area network.
1. Network: Select Main Network or Guest Network to configure LAN settings.
2. IP address: Specify an IP address. The default IP address of Main Network is “192.168.216.1” and “192.168.217.1” is for Guest Network.
3. Subnet Mask: Modify the subnet mask or remain default settings “255.255.255.0”.
4. Enable LAN Security: Select the radio button to enable or disable LAN security function.

Dynalink DL-WRX36 Specifications

System Memory

flash memory	256 MB
RAM	1 GB DDR4

Ports & Interfaces

wireless interface	2.4GHz and 5GHz Dual-Band Concurrent
LAN ports	4 Gigabit LAN Port
WAN port	One 2.5 Gigabit WAN Port

Wireless Specifications

wireless standard	IEEE802.11a/b/g/n/ac/ax
frequency range 2.4 GHz	2.412 GHz ~ 2.4835 GHz
frequency range 5 GHz	5.15 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.85 GHz

Antenna

antenna for 2.4 GHz	4-internal
antenna for 5 GHz	4-internal
maximum output power 2.4 GHz	29 dBm
maximum output power 5 GHz	29 dBm

Power

operating voltage	12V/2.5A DC adaptor (100V~240V, 50 Hz ~ 60 Hz)
maximum power consumption	26.8 Watts

Operating Environment

operating temperature	0°C ~ 40°C
storage temperature	-40°C ~ 85°C
operating humidity	5% ~ 90% RH
storage humidity	5% ~ 95% RH

Weight and Dimensions

width	100 mm
height	230.25 mm
depth	150 mm
