Dynalink DL-WRX36 User Manual

8. TROUBLESHOOTING
123
Can’t access local network printer or file server by WiFi

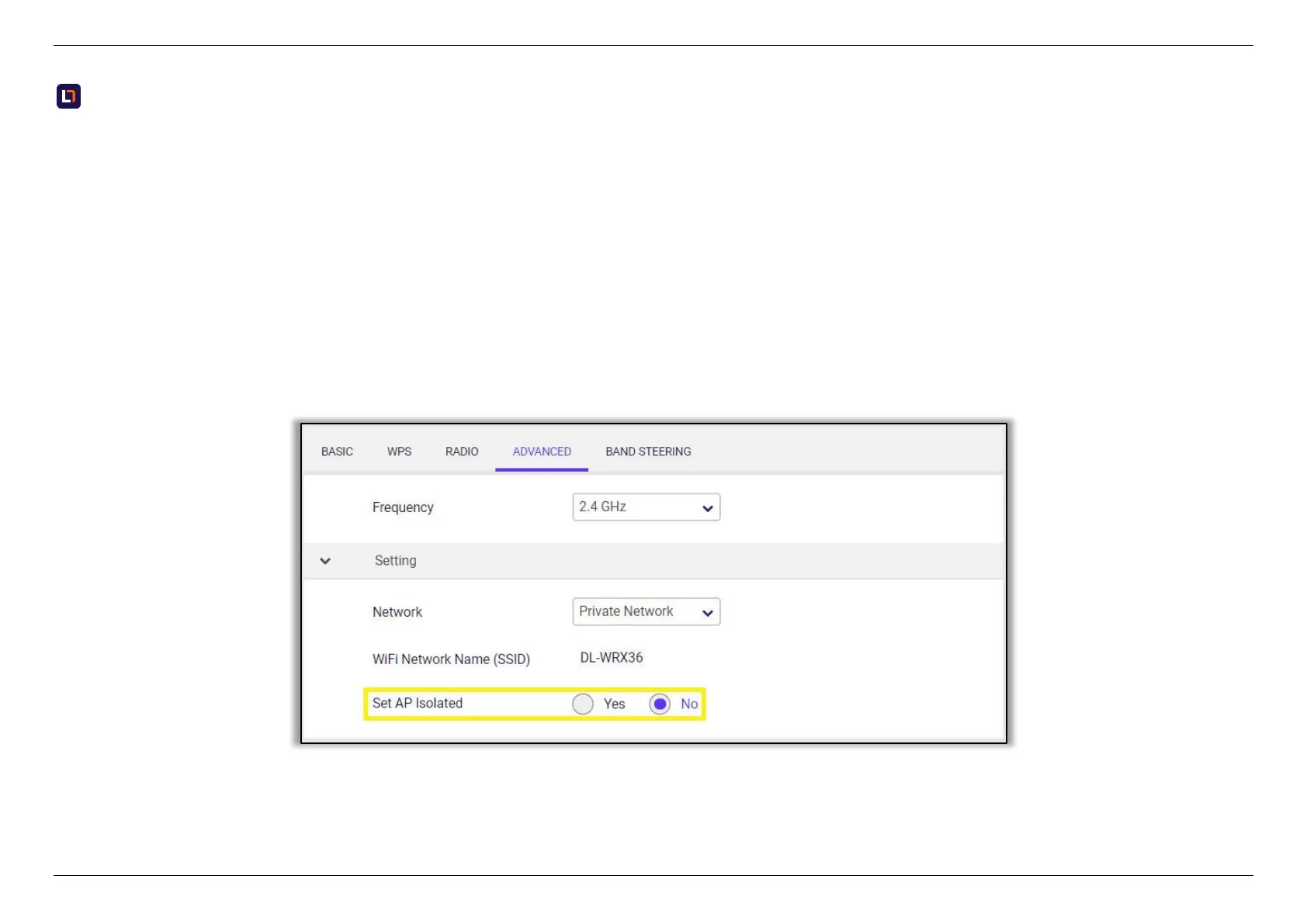

Click Network > WiFi > ADVANCED Please check the setting Set AP Isolated (The default is set to disable (No)) if it’s enable (Yes), If
enabling this setting, this will block all traffic between devices on WiFi or LAN, the traffic is only allowed to go out to the Internet.
1. After AP isolation is set, can a wireless terminal communicate to a wired terminal?
Yes, AP isolation only restricts the communication between wireless devices, not the communication with wired terminals.
2. After AP isolation is set, does the dual-band router allow communication between 2.4GHz and 5GHz?
Yes, AP isolation only affects the wireless terminals connected to the same frequency band, any wireless terminals connected to different frequency
bands can communicate with each other.

Dynalink DL-WRX36 Specifications

System Memory

flash memory	256 MB
RAM	1 GB DDR4

Ports & Interfaces

wireless interface	2.4GHz and 5GHz Dual-Band Concurrent
LAN ports	4 Gigabit LAN Port
WAN port	One 2.5 Gigabit WAN Port

Wireless Specifications

wireless standard	IEEE802.11a/b/g/n/ac/ax
frequency range 2.4 GHz	2.412 GHz ~ 2.4835 GHz
frequency range 5 GHz	5.15 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.85 GHz

Antenna

antenna for 2.4 GHz	4-internal
antenna for 5 GHz	4-internal
maximum output power 2.4 GHz	29 dBm
maximum output power 5 GHz	29 dBm

Power

operating voltage	12V/2.5A DC adaptor (100V~240V, 50 Hz ~ 60 Hz)
maximum power consumption	26.8 Watts

Operating Environment

operating temperature	0°C ~ 40°C
storage temperature	-40°C ~ 85°C
operating humidity	5% ~ 90% RH
storage humidity	5% ~ 95% RH

Weight and Dimensions

width	100 mm
height	230.25 mm
depth	150 mm
