HYDRAULIC SCREW COMPRESSORS
OPERATING PRINCIPLES

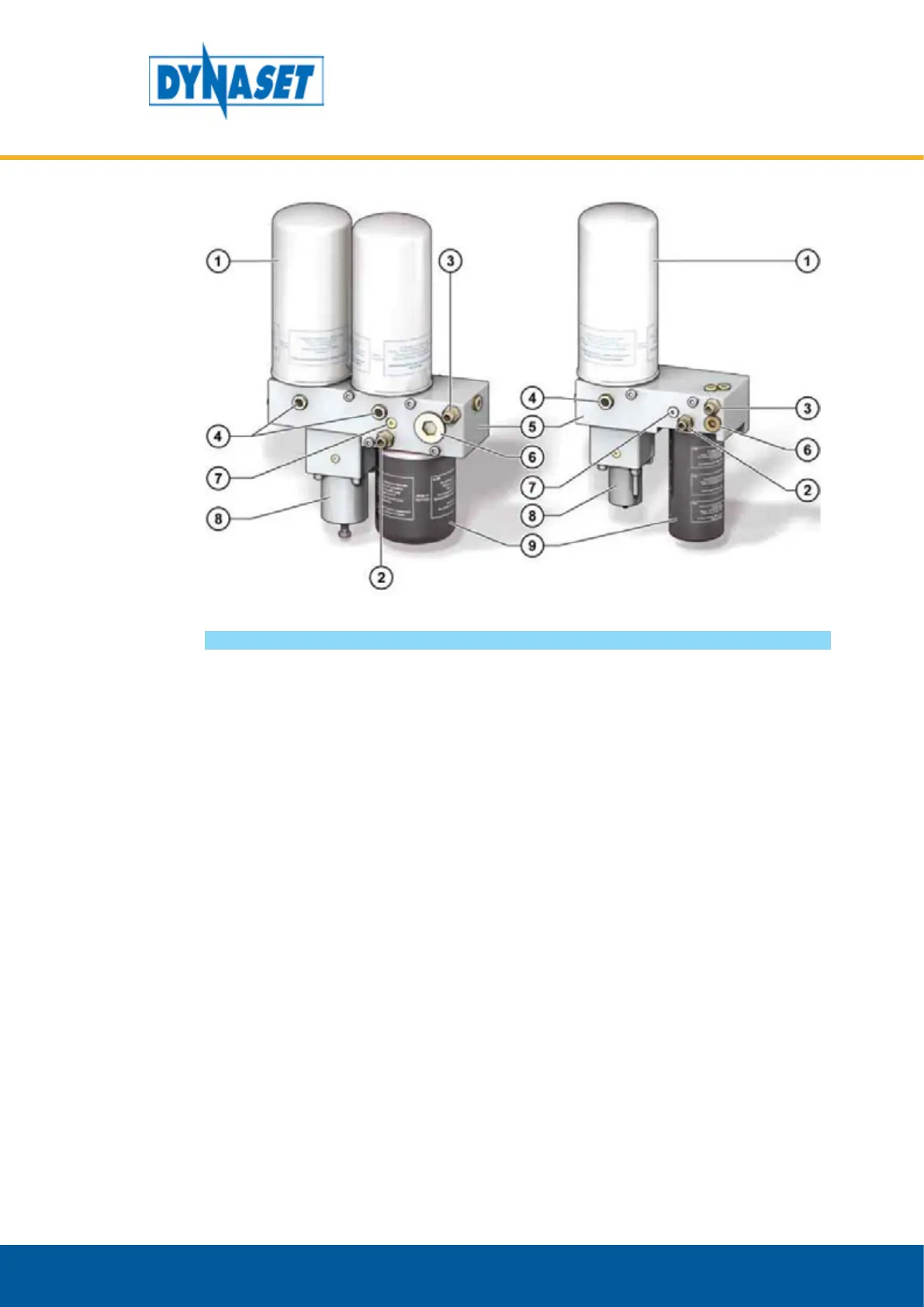

Picture 11: Multiblock of HKR 4000 and HKR 5000 - HKR 7500
1. Air-oil separating element(s)
2. Oil circulation connection Inlet
3. Oil circulation con-
nection Outlet
4. Oil return line check /
sight glass and nozzle
5. Housing
6. Oil thermostat
7. Oil separation return line
(integrated non return valve)
8. Minimum pressure valve
9. Oil filter
