Dynaset HKR 2000 - Picture 22: Connection Figure for Hydraulic System with Fixed Discplacement Pump

33
Dynaset Oy | Menotie 3, FI-33470 Ylöjärvi, Finland | tel: +358 3 3488 200 | info@dynaset.com | www.dynaset.com
HYDRAULIC SCREW COMPRESSORS
INSTALLATION
P
CF
T
LS
T
P
P
LS
4 2.1
657
12.232

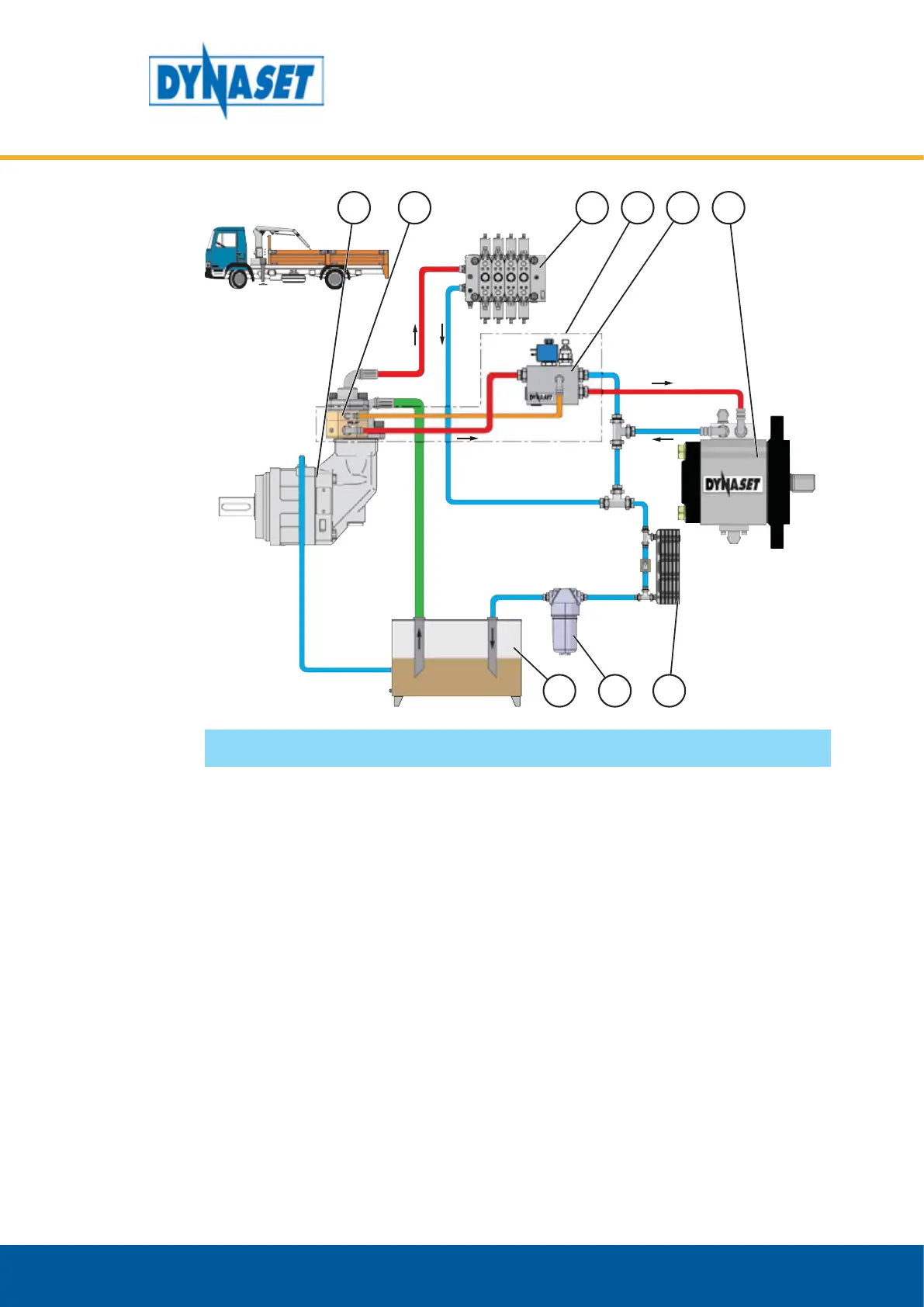

Picture 22: Connection figure for hydraulic system with fixed discplacement
pump
1. DYNASET hydraulic equipment
2. DYNASET Priority valve PV-SAE
2.1. DYNASET PC-SAE
pressure compensator
2.2. DYNASET LSV Load
sensing valve
3. Base machines fixed
displacement pump
4. Open centre directional
control valves
5. Oil cooler
6. Oil filter
7. Oil tank
