Dynaset HKR 2000 - Picture 20: Connection Figure for Closed Centre Hydraulic System with Load Sensing Variable Displacement Pump

31
Dynaset Oy | Menotie 3, FI-33470 Ylöjärvi, Finland | tel: +358 3 3488 200 | info@dynaset.com | www.dynaset.com
HYDRAULIC SCREW COMPRESSORS
INSTALLATION
4 3
7 68
125
P
CF
T
LS
T
P

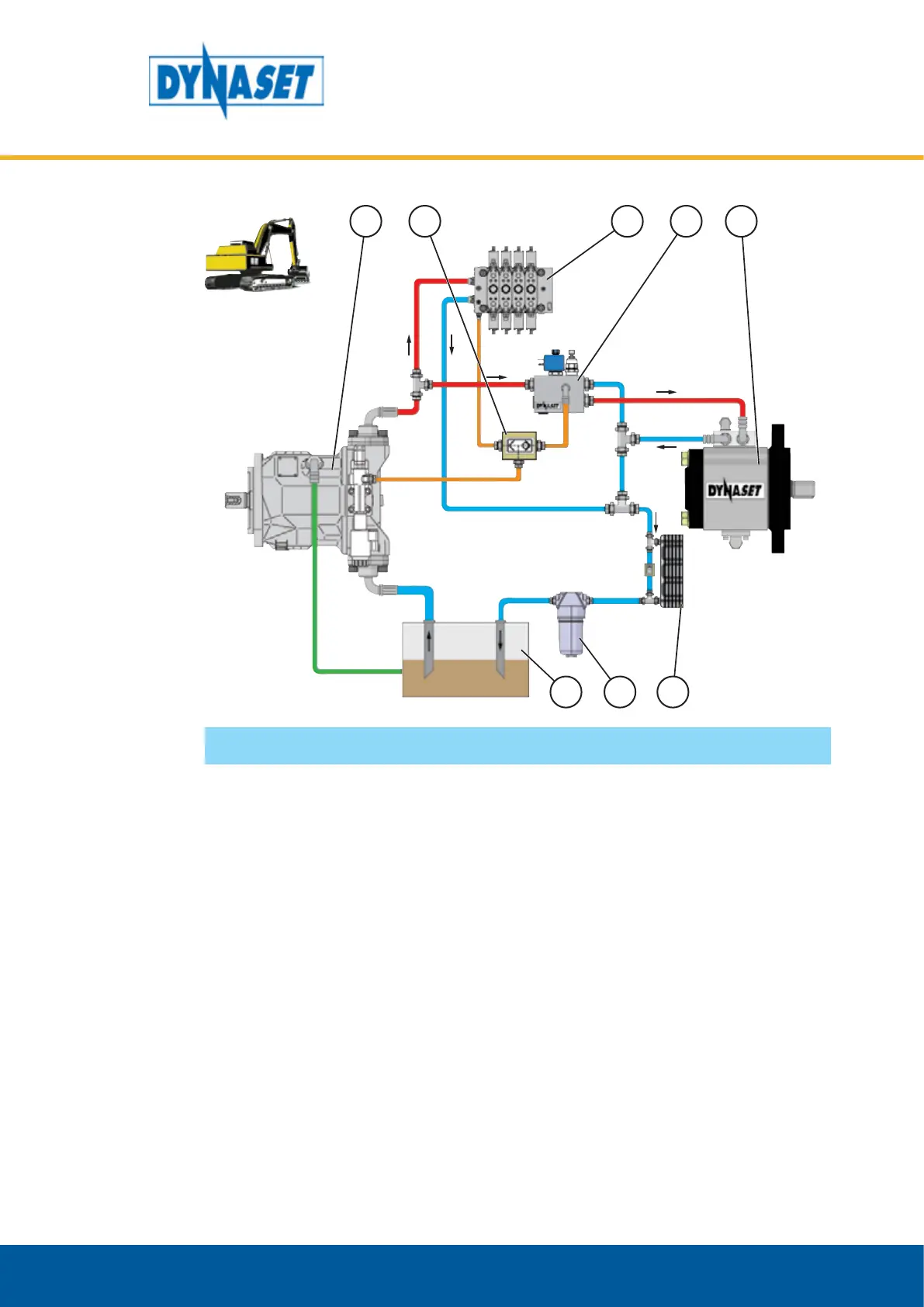

Picture 20: Connection figure for closed centre hydraulic system with Load
Sensing variable displacement pump
1. DYNASET hydraulic equipment
2. DYNASET LSV Load
sensing valve
3. DYNASET Shuttle valve
4. Base machines variable
displacement pump
5. Closed centre directional
control valves
6. Oil cooler
7. Oil filter
8. Oil tank
