HYDRAULIC SCREW COMPRESSORS
INSTALLATION
4.3.2. CONNECTION TO THE AIR SUPPLY SYSTEM
Compressor can be connected to the air supply system with a proper fitting and
cut-off valve (options).

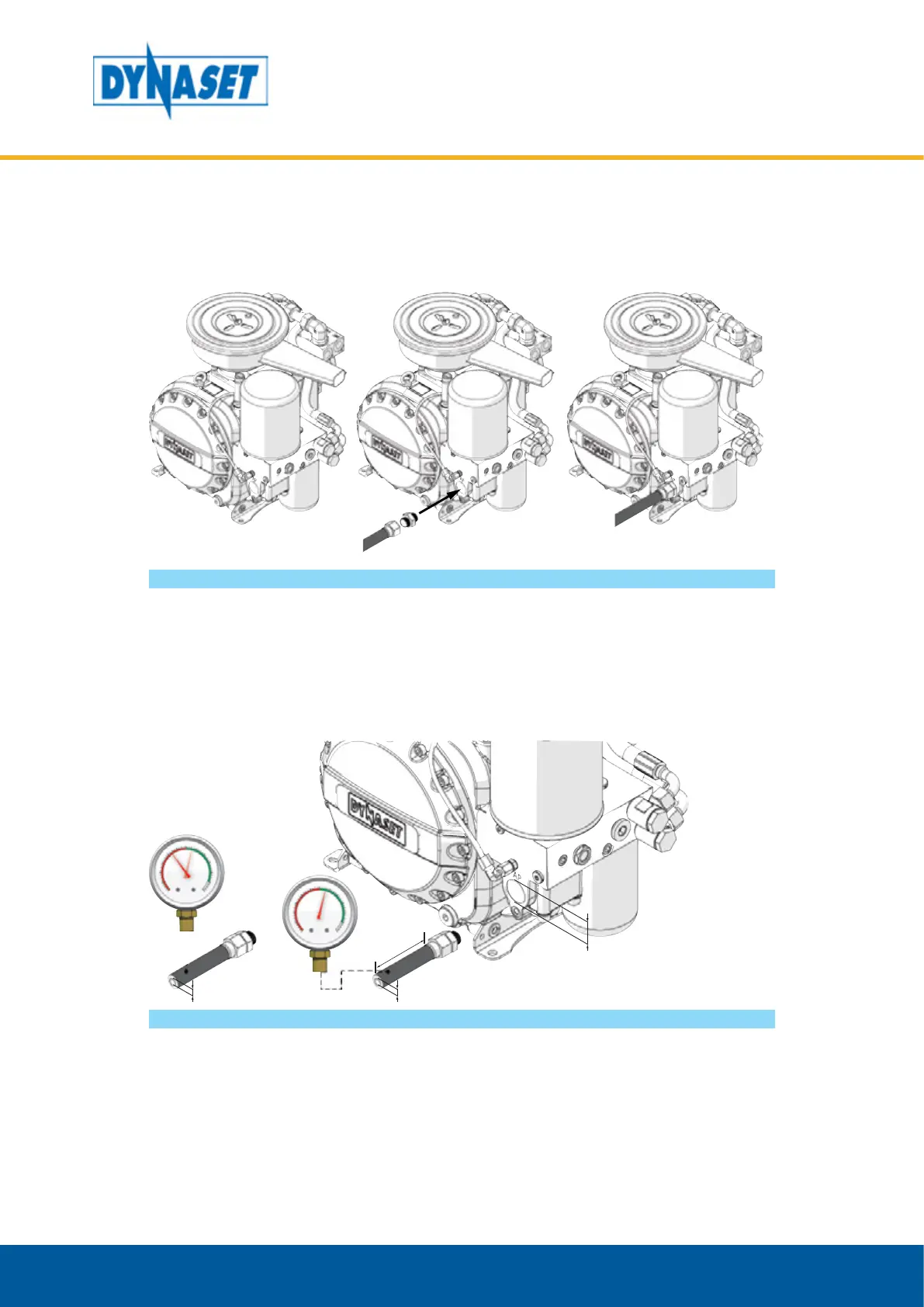

Picture 31: Air supply system connection
The inner diameter of pipe / hose used for compressor’s connection should be at
least equal to AP-port to keep the pressure drop minimal.
The length of a pipeline, with the pipe of same diameter as AP-port, can be 50 m
as maximum. For longer lines use larger diameter.
Max 50m
ø
AP
ø = ø
AP
ø < ø
AP
PSI
BAR
MIN MAX
PRESSURE
PSI
BAR
MIN MAX
PRESSURE
Picture 32: Air supply line hose diameter and length
