HYDRAULIC SCREW COMPRESSORS
OPERATING PRINCIPLES
3.6. OIL NONRETURN VALVE
The oil non-return valve prevents oil flooding from air-oil separating element(s).
The oil tend to flow from air-oil separating element(s) to screw compressor due
to the pressure difference in the system when the screw compressor system is
switched off.
1 2 3
HKR 500 - 7500

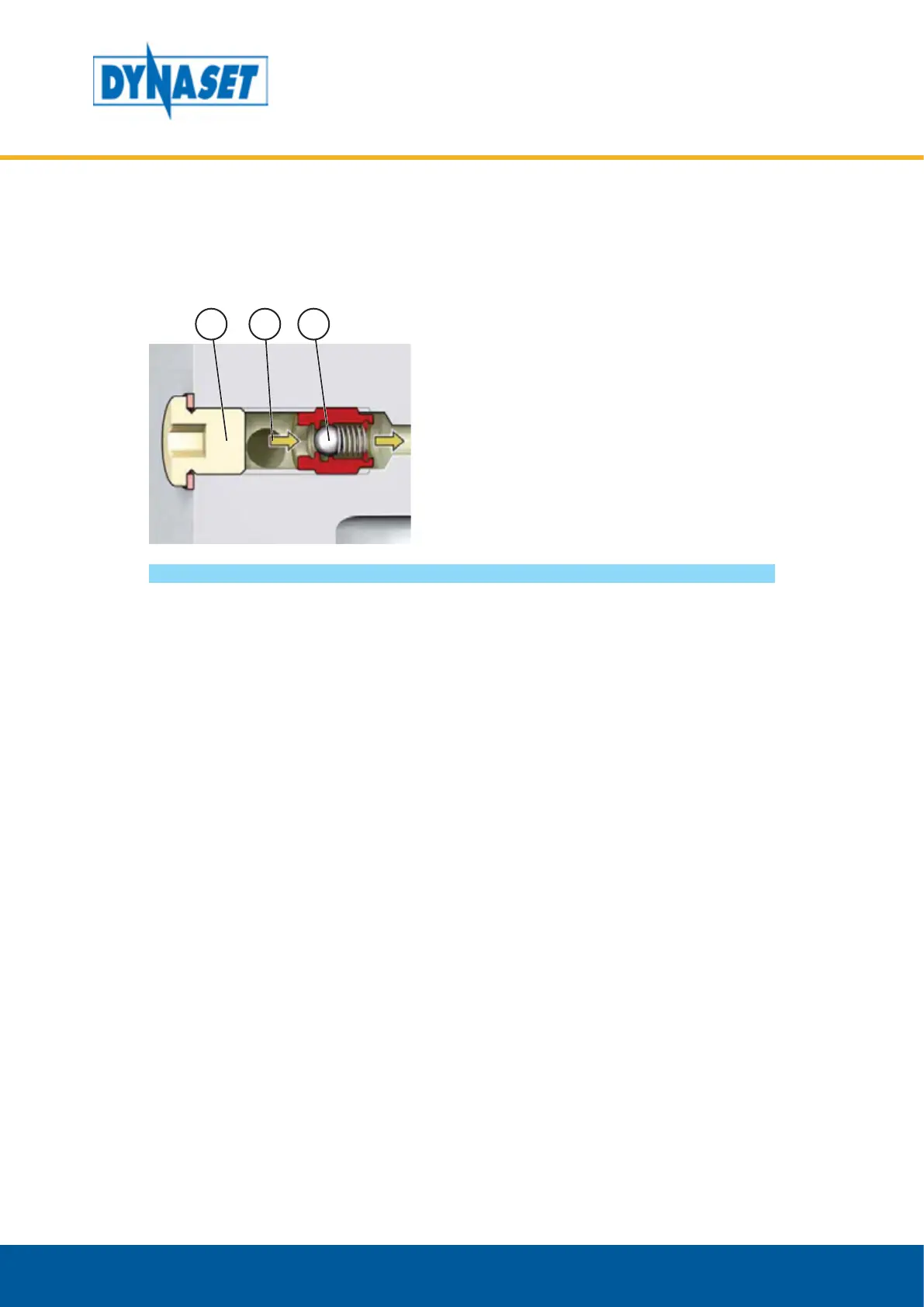

Picture 12: Operating principle of oil non-return valve
1. Screw plug
2. Return line for oil separation
3. Non-return valve
