HYDRAULIC SCREW COMPRESSORS
OPERATING PRINCIPLES
3.9. OIL FILTER
The filter mesh size is 20 µm.
The filter has a bypass valve which opens when oil is cold and high-viscosity or
when the filter is heavily soiled and pressure difference is 2.5 bar. This allowes oil
flow to the screw compressor.

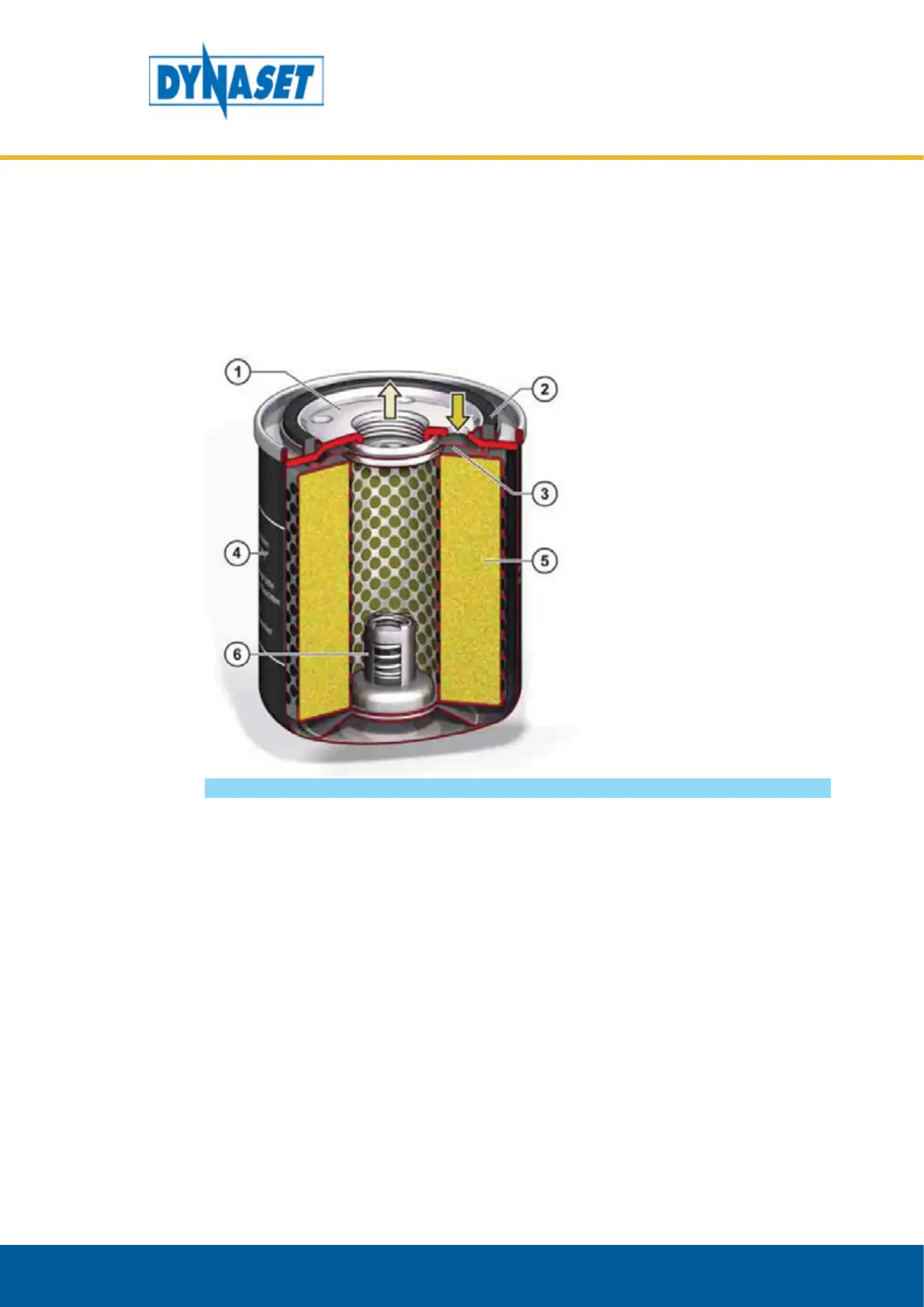

Picture 15: Operating principle of oil filter
1. Cover
2. Seal
3. Return line shut-off valve
4. Filter housing
5. Filter element
6. Bypass valve
