DH200F User Manual
©Dyness reserves the copyright of this document.

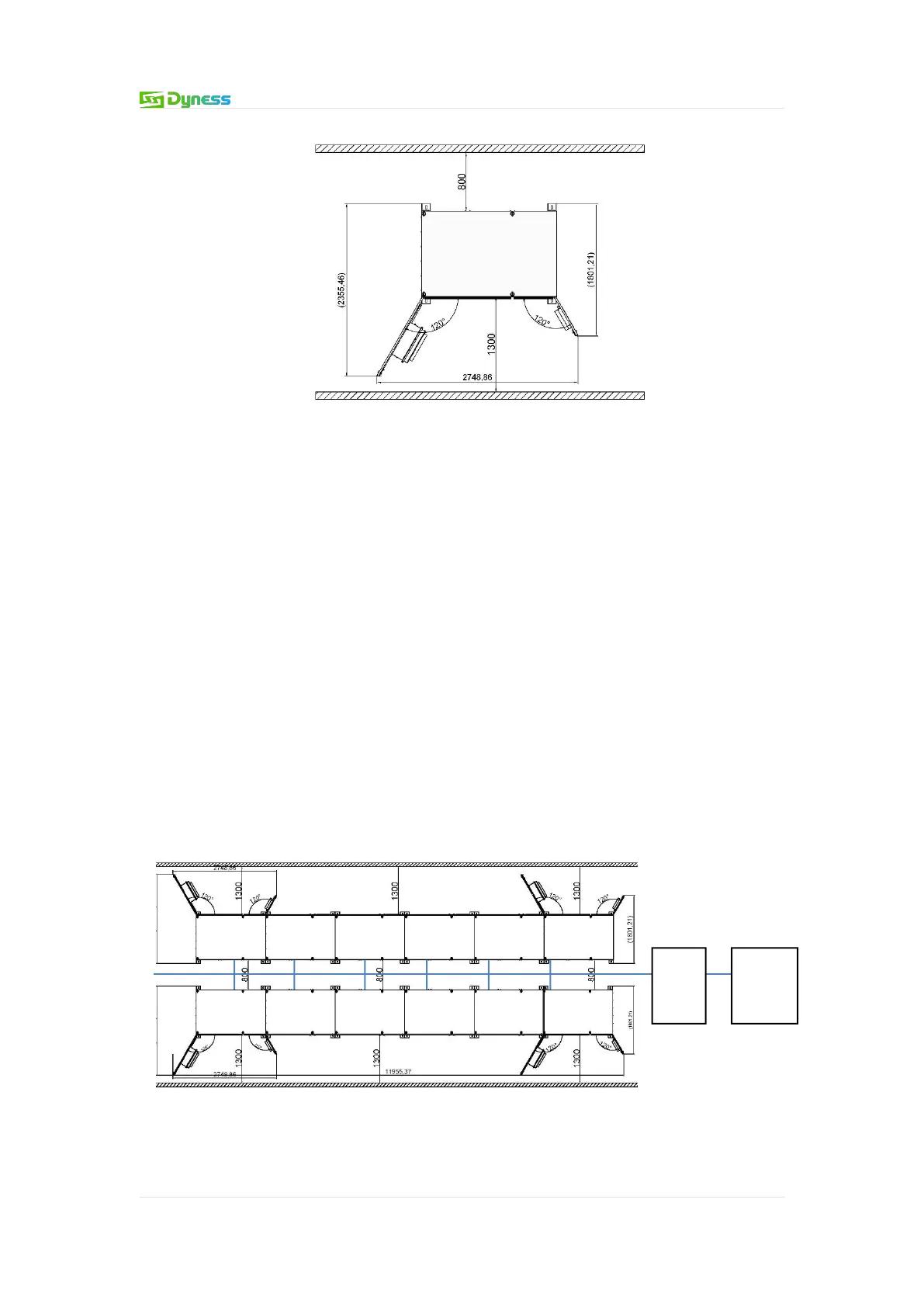

Figure 5-2 Illustration of rack fixing
The capacity of BESS integrated cabinet can be freely configured according to demand
and can be expanded to MW level. The parallel installation has different layout according
to on-grid and off-grid schemes, and the installation space requirements are as follows:
In the on-grid solution, the space requirements for parallel installation are as follows:
Up to 12 units of the BESS integrated cabinet can be parallelly installed, expandable up
to 2.5 MWh.
The BESS integrated cabinet can be seamlessly interconnected on both sides.
When arranged in a single row, the reserved space in front of the parallel BESS
integrated cabinets should not be less than 1300mm, and the rear space should be no
less than 800mm.
When arranged in two rows, the reserved space in front of the parallel BESS integrated
cabinets should not be less than 1300mm for each row, and a minimum of 800mm
space should be reserved between the two rows for maintenance and inspection by
technicians.
Figure 5-3 BESS parallel installation space requirements (on-grid scheme)
