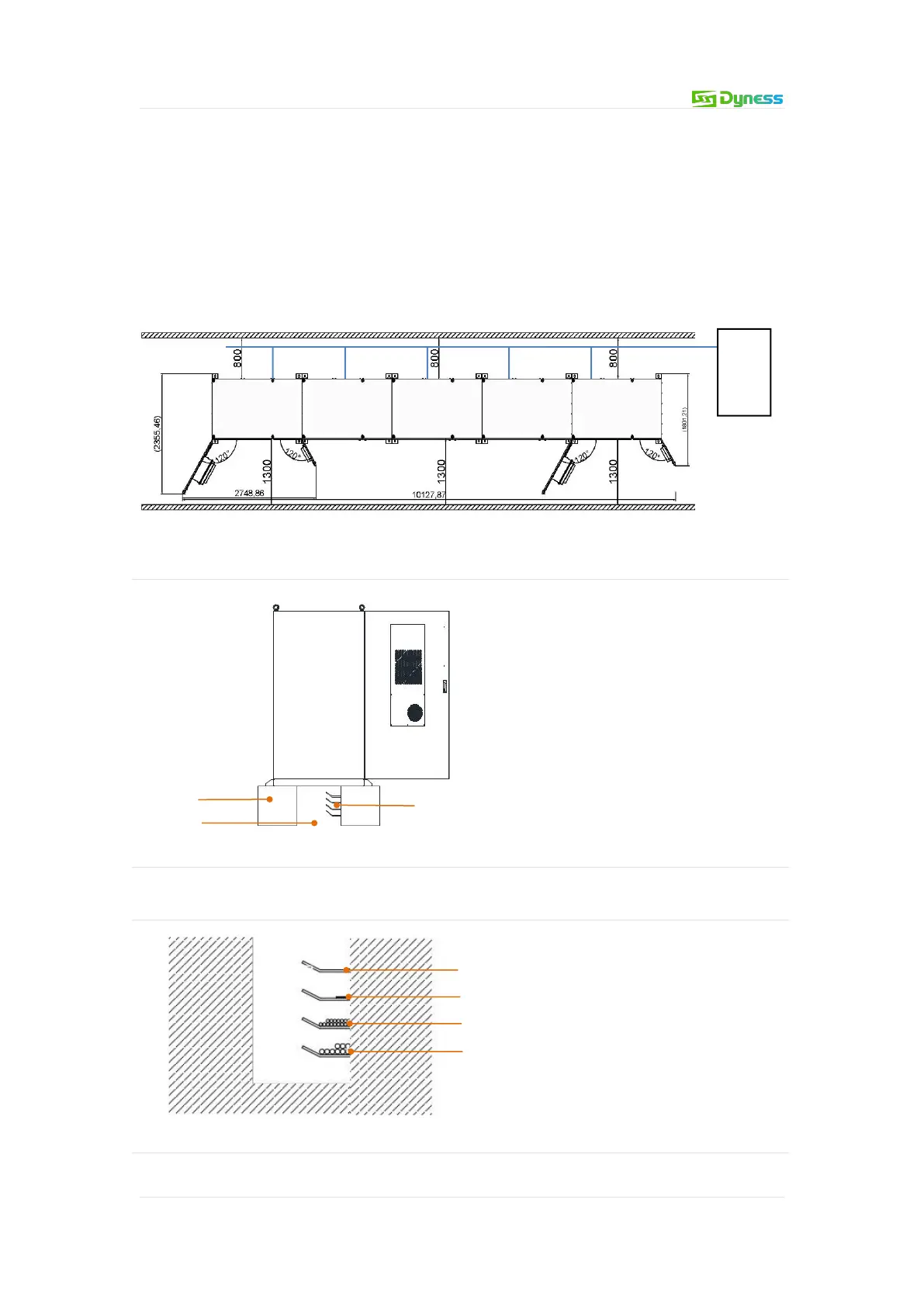

In the off-grid solution, the space requirements for parallel installation are as follows:

Up to 5 units of the BESS integrated cabinet can be parallelly installed, expandable up
to 1 MWh.

The BESS integrated cabinet can be seamlessly interconnected on both sides.
 There should be a minimum clearance of 1300mm at the front of the BESS integrated
cabinet where the cabinet doors open.
 There should be a minimum clearance of 800mm at the back of the BESS integrated
cabinet for proper spacing.
BESS 1
BESS 2
BESS 3
BESS 4
BESS 5
Combiner
box
Figure 5-4 BESS parallel installation space requirements (off-grid scheme)
1
2
3
1.Foundation
2.Trench
3.Cable bracket
Figure 5-5 Illustration and description of the trench interface
1
2
3
4
1.Cable bracket
2.Control cable
3.DC cable
4.AC cable
Figure 5-6 Schematic and description of cable bracket
