service manual
Issued 05/05
25

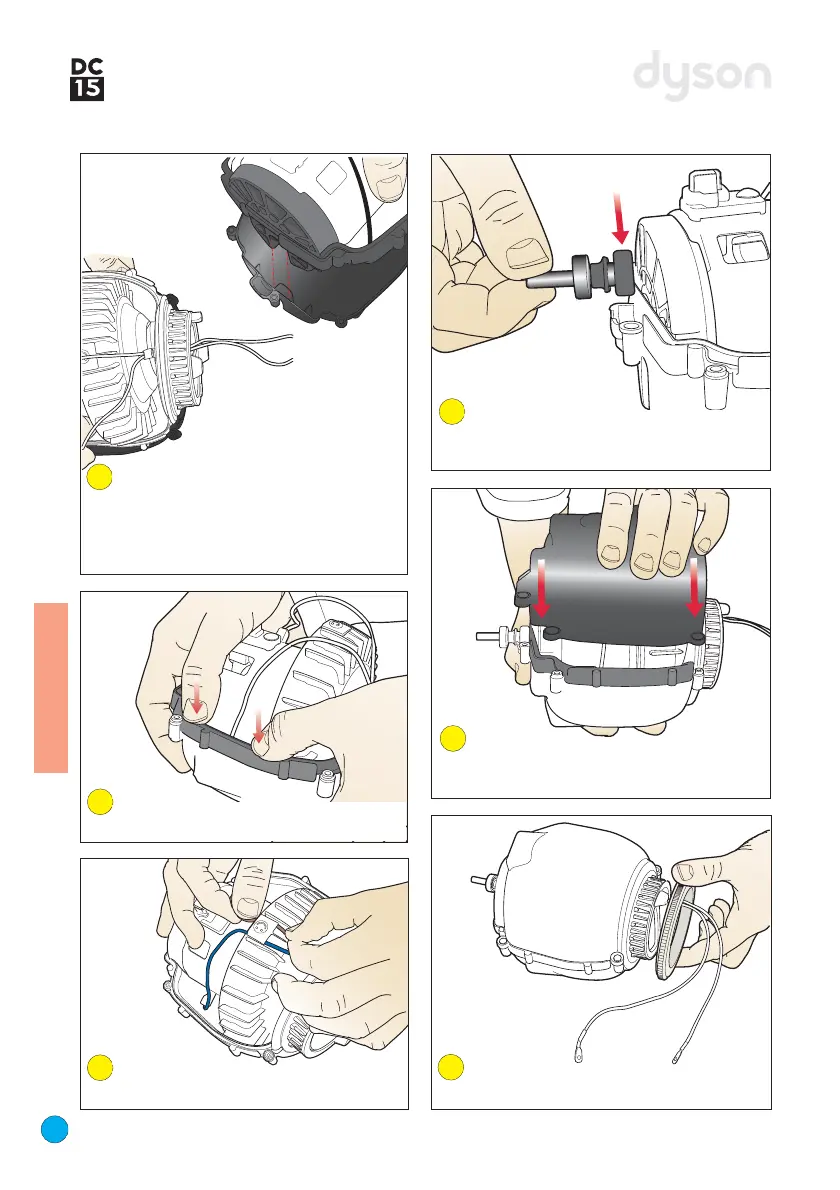

Fitting notes
Lower the channel on the motor mount
onto the detail inside the front of the motor
bucket base. Lower the rear of the motor
bucket seal into the channel in the rear of the
motor bucket base.
Tuck both wires behind the ‘smiley’ face
on the fancase seal.
Slide the small bearing onto the motor bucket
axle. Lower both parts into the front of the motor
bucket base.
Fit the motor bucket top onto the base.
Ensure the seal covers all edges of both parts.
Refit the five screws.
Slide the large bearing (teeth first) onto the
rear of the motor bucket.
Fit the motor bucket seal around the
edges of the motor bucket base.
103
106
105
108
107
104
