Dyson DC15 Service Manual

service manual
Issued 05/05
40

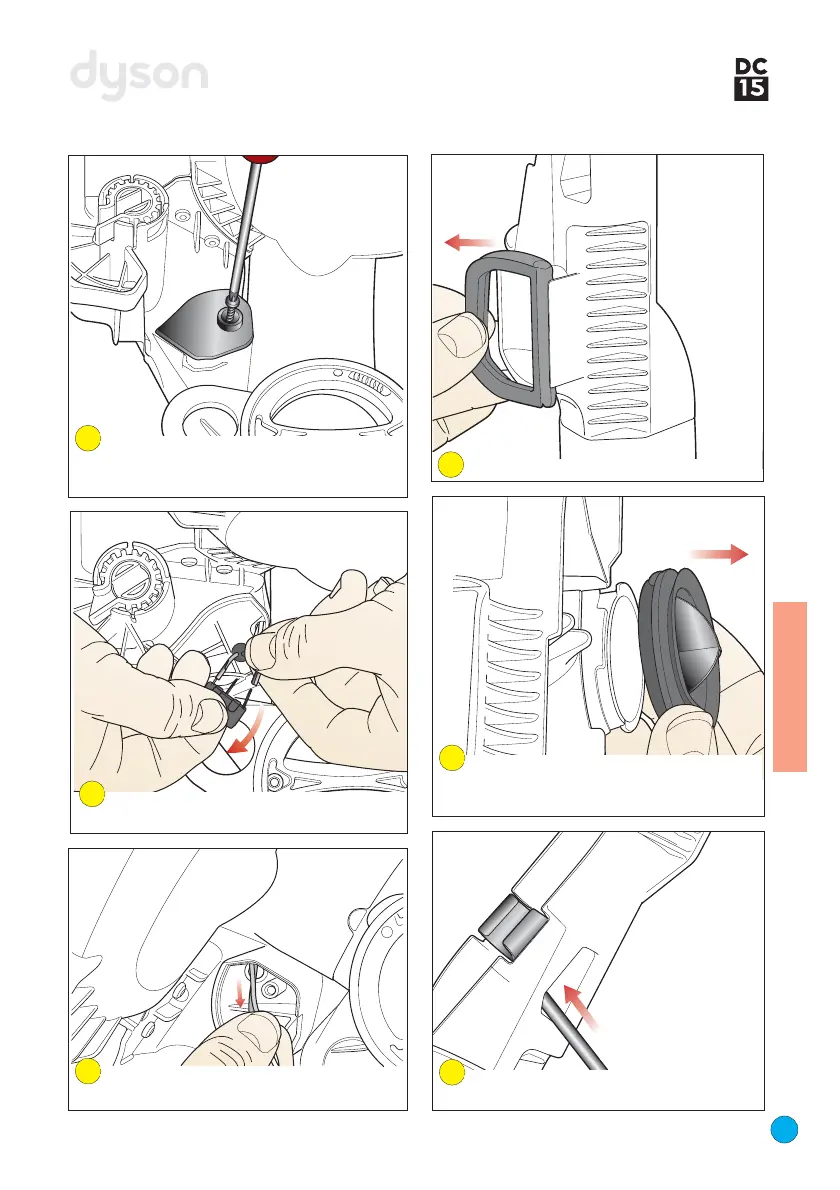

Fitting notes
Undo the long screw on the inside of the
duct. Remove the upright switch cover and
upright switch actuator.
Carefully detach the upright switch from the
upright switch loom.
Release the upright switch loom from the
duct.
Push the crevice tool clip out from the duct
using a Torx screwdriver.
Carefully pull the exhaust seal and filter
duct assembly off the side of the duct. Peel the
seal of the duct filter.
Peel the inlet seal off the side of the duct.
186
187
189
190
191
188

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
