EA Technology UltraTEV Plus
2
Operating Manual 2388L015
Page 33 of 66

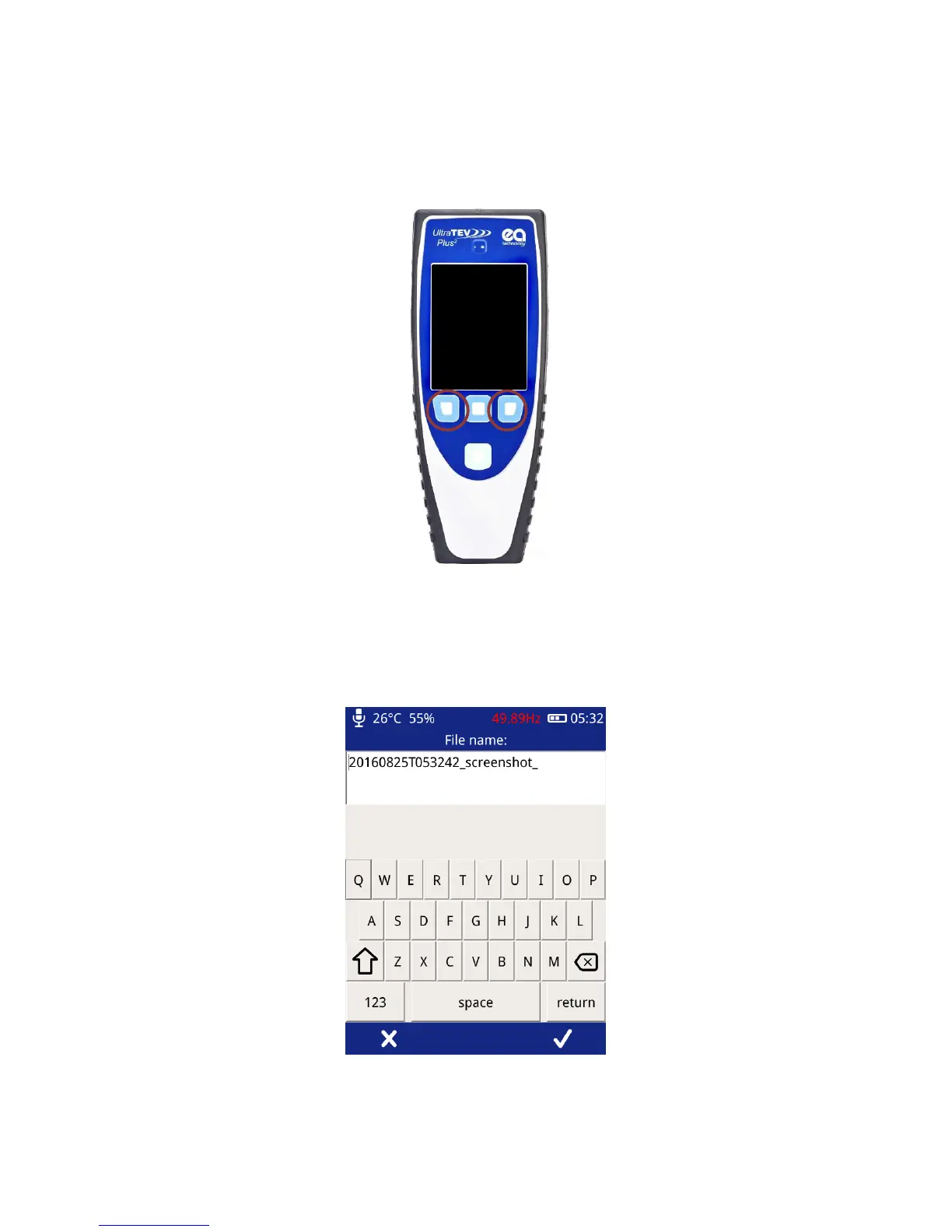

5.11 Screenshot
The UltraTEV Plus² allows the user to capture an image of the screen at any time. To initiate a capture
press both the left and right hand buttons simultaneously for two seconds.
Once capture completes a pop up window will appear providing the opportunity to rename the file
from the default as shown below. Selecting the tick in the bottom left hand corner of the image
stores the file to the removable microSD Card. The files are stored at \data and can be verified
through the file browser
To view the saved image the microSD card must be removed from the UltraTEV Plus² and connected
to a PC or similar device. Once connected the screenshots may be viewed by navigating to \data and
opening the relevant .png file.
