EA Technology UltraTEV Plus
2
Operating Manual 2388L015
Page 43 of 66
7. Reviewing Results
Data collected during Survey mode or though ad-hoc recording is stored on the UltraTEV
Plus²’s MicroSD card. To facilitate viewing of the data the UltraTEV Plus² provides three
methods of connection:
Wi-Fi – Allows a direct connection from the UltraTEV Plus² to a Wi-Fi enabled PC or
tablet.
USB – Direct connection from the UltraTEV Plus² to a Windows based machine.
Removal of the MicroSD card for viewing on a Windows/Linux/ Mac OS X based
machine.
7.1 Wi-Fi & USB Connection
The UltraTEV Plus² provides an inbuilt web server to support data management and
analysis. Once connected the UltraTEV Plus² home page can be reached by navigating to
192.168.10.1 in a web browser such as Google Chrome, Mozilla Firefox or Microsoft
Edge/Internet Explorer.

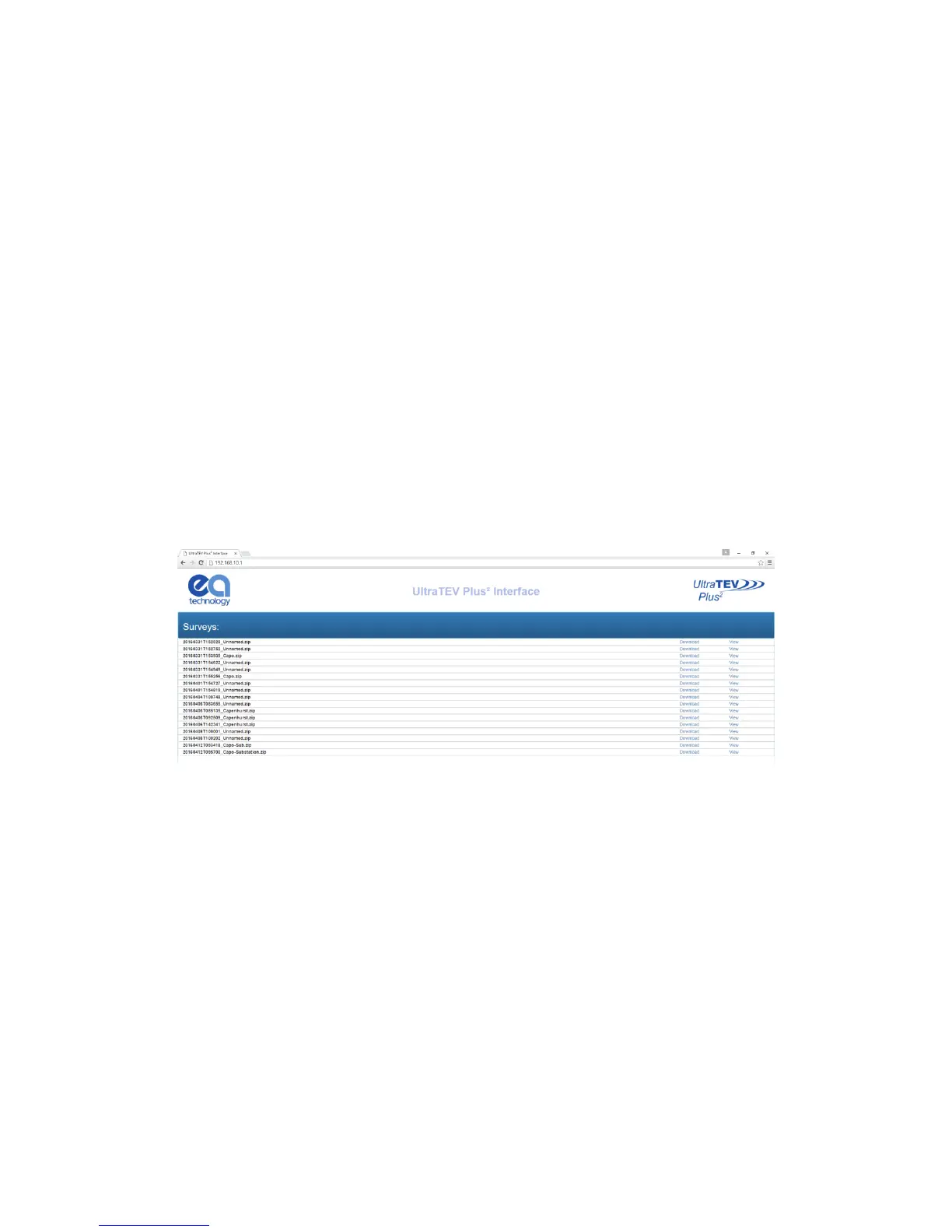

The home page, shown below displays a list of all Surveys stored on the UltraTEV Plus²’s
MicroSD Card.
The index of surveys on the UltraTEV Plus² can be used to quickly identify the site of interest
allowing the user to navigate either directly to the data analysis (view button) or to
download a zip file (compressed folder) containing the raw data (download button).
Clicking the view button takes the user to the data analysis screens detailed overleaf.
7.2 MicroSD Card & Data Zip Files
An alternative method of viewing the data held on the UltraTEV Plus² is by direct file access.
This can either be from a previously downloaded data zip as above or by accessing the
MicroSD card directly.
To directly access the MicroSD card ensure the UltraTEV Plus² is powered down, then locate
the MicroSD card at the base of the instrument and gently push on the card to eject it.
The MicroSD card will contain a separate .zip file (compressed folder) for each survey and
ad-hoc measurement undertaken. Inside each folder there is an html page named
