6.7 Recording Data

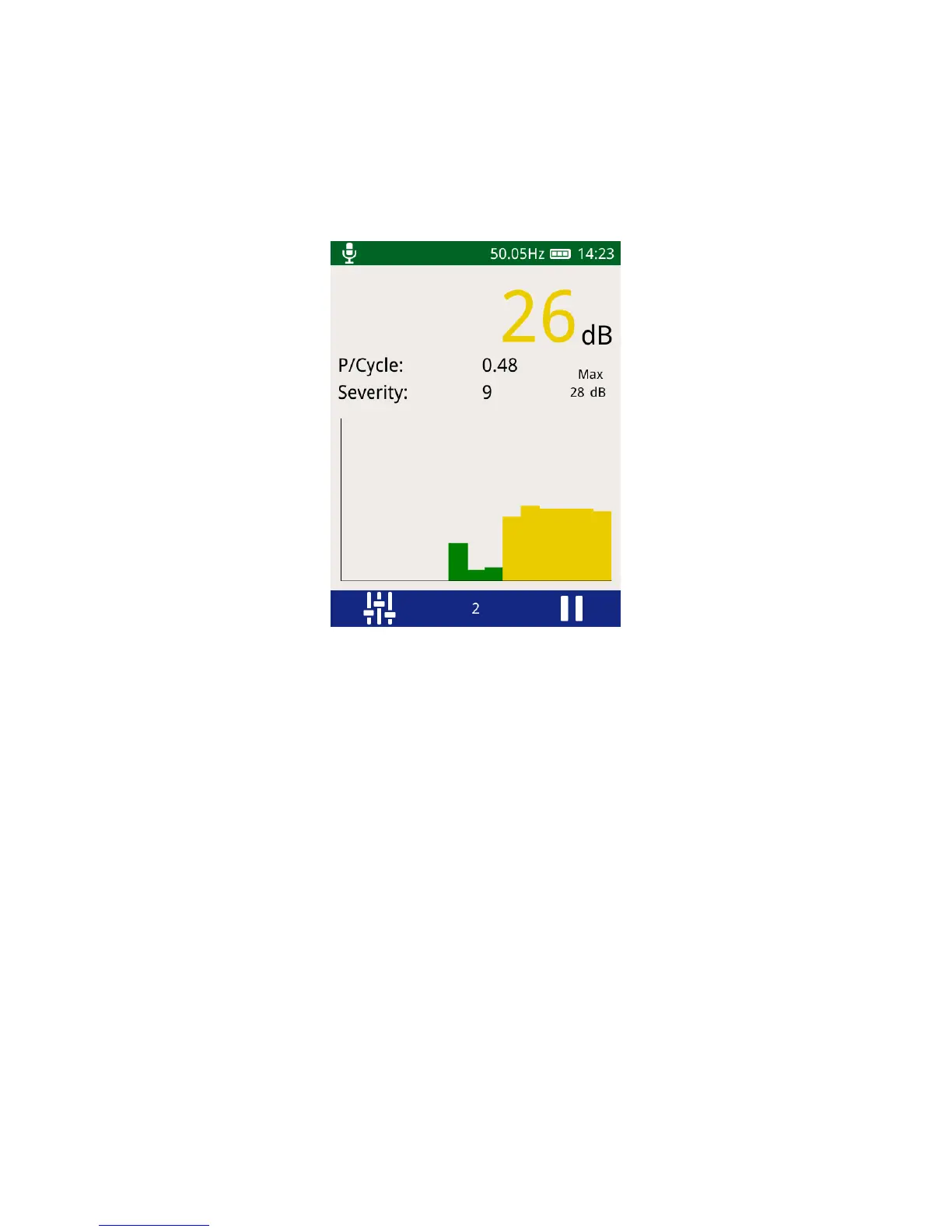

Once a survey has been started data can be recorded from any TEV, Cable PD or Ultrasonic
displays. The same data is recorded for TEV or Cable PD independent of which TEV/Cable
PD screen is currently displayed. To record data, simply press the record icon visible on the
menu bar, which will then start a 10 second period of data capture.
Different data is recorded for the different measurement modes as summarised below:
6.7.1 TEV recorded data
When recording data in any of the TEV modes, the following data is recorded and stored:
 Event data including phase angle, cycle count, amplitude, pulse width and rise time
 TEV Waveforms
6.7.2 Cable PD recorded data
When recording data in any of the Cable PD modes, the following data is recorded and
stored:
 Event data including integral, pulse width and rise time
 Cable PD Waveforms
6.7.3 Ultrasonic recorded data
When recording data in Ultrasonic measurement modes, the following data is recorded and
stored:
 Raw Ultrasonic audio
 Heterodyned Ultrasonic audio
 Processed Ultrasonic audio
