Eaton easyE4 series User Manual

5. Programming on the device
5.4 Working with contacts and coils
5.4.1 Entering and modifying contacts

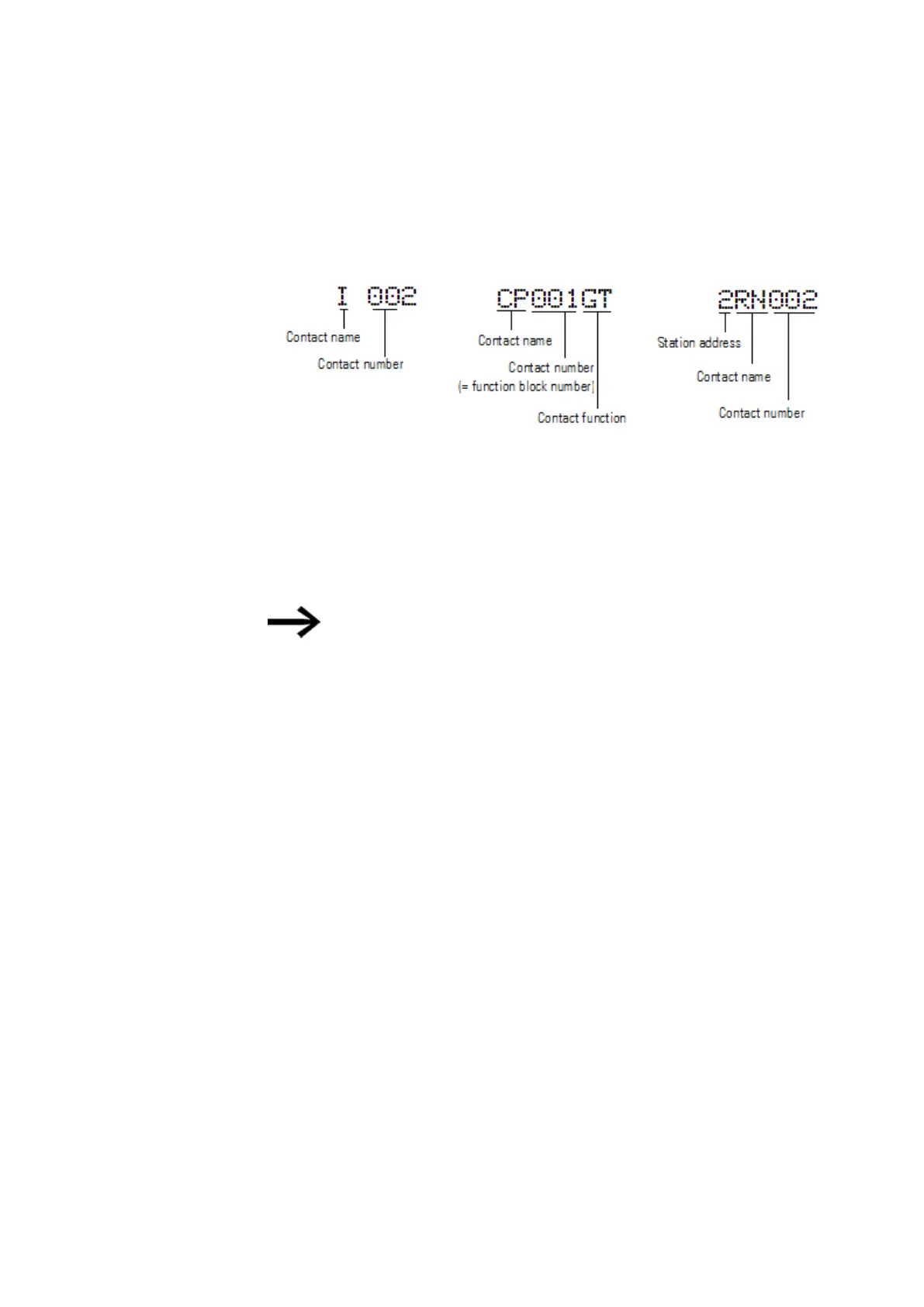

Figure 78: Contact legend
You choose an input contact in the easyE4 device by means of the contact name and
the contact number.
Example: Base device input contact or function block contact consists of the abbre-
viated function block name, the number, and the contact function.
Example: Contact of "comparator" function block
For more information on how to add and configure a function
block as a contact or coil in a circuit diagram, please refer to →
Section "Working with contacts and coils", page 133 on →
"Working with contacts and coils", page 133.
If a NET station's contact is used in a circuit diagram, the station's NET-ID (address)
will be placed before the contact name, ￫"Wiring another NET station's contact or coil
in a circuit diagram" section, page 121.
Example: Contact of a NET station
134
easyE4 11/18 MN050009 EN www.eaton.com
