Eaton easyE4 series User Manual

6. Function blocks
6.1 Manufacturer function blocks
The year time switch HY01 is required to switch on at 00:00 on day 1 of each month and
switch off at 00:00 on day 29 of each month.
The HY year time switch must be assigned the following parameters:
Programming view/HY01/Year time switch parameters tab

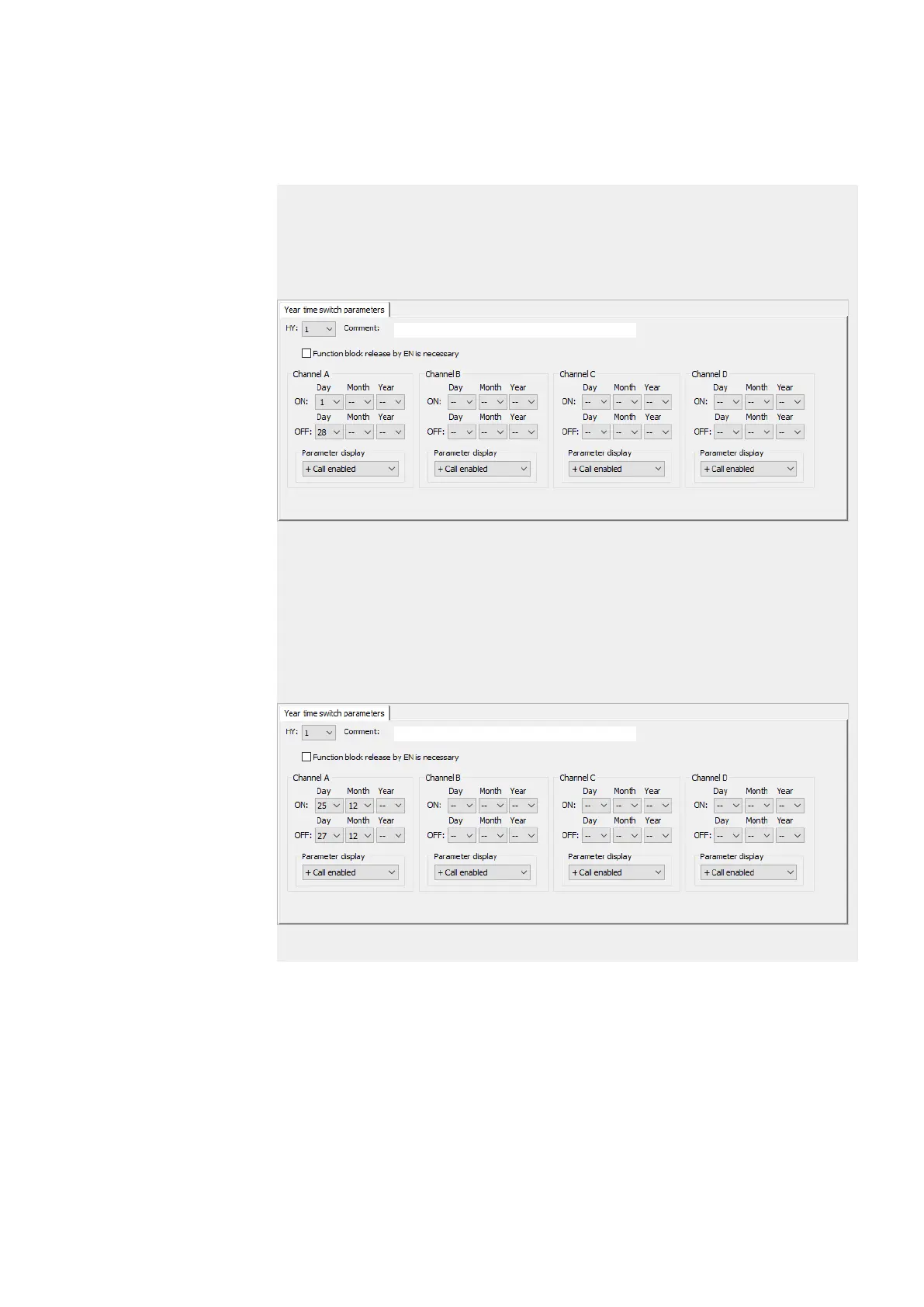

Figure 109: Figure: Entry screen in the programming software
Example 4: Select “public holidays"
The year time switch HY01 is required to switch on at 00:00 on day 5.12 of each year
and switch off at 00:00 on day 28.12 of each year.
The HY year time switch must be assigned the following parameters:
Programming view/HY01/Year time switch parameters tab
Figure 110: Figure: Entry screen in the programming software
easyE4 11/18 MN050009 EN www.eaton.com
185
