6. Function blocks
6.1 Manufacturer function blocks

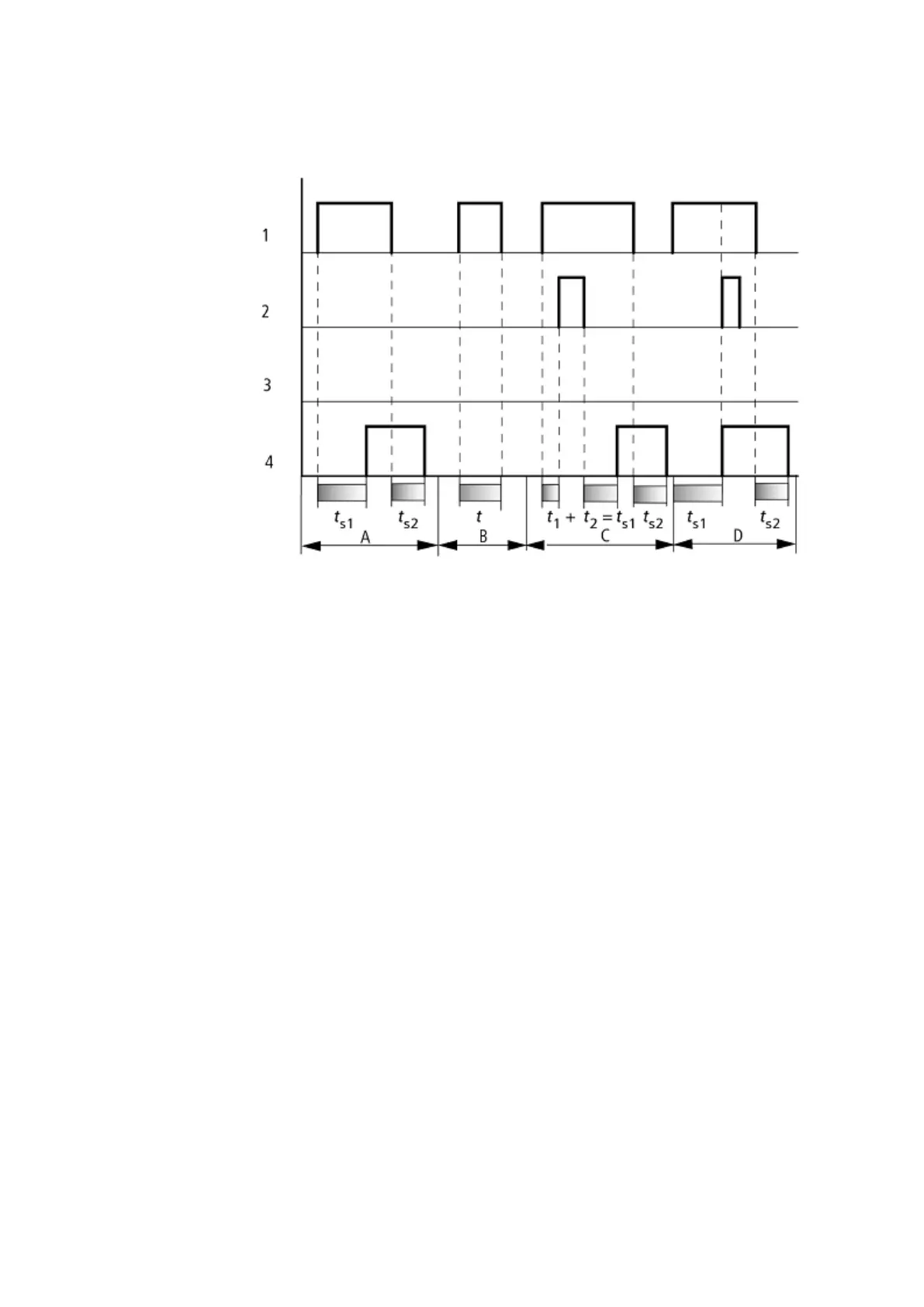

Figure 118: Operational diagrams timing relay, on and off delayed 1
1: Trigger coil T…EN
2: Stop coil T…ST
3: Reset coil T…RE
4: Switching contact (N/O contact) T…Q1
ts1: Pick-up time
ts2: Drop-out time
Range A: The relay processes the two times without any interruption.
Range B: The trigger coil drops out before the on-delay is reached.
Range C: The stop coil stops the timeout of the on-delay.
Range D: The stop coil has no effect in this range.
204
easyE4 11/18 MN050009 EN www.eaton.com
