8.4 Setting a splash screen for the EASY-E4-...-12...C1 display
8.4 Setting a splash screen for the EASY-E4-...-12...C1 display
You can create your own custom monochromatic image externally in any program. Sim-
ply make sure that the image is in BMP format and is named boot.bmp.
The size is set at 128 x 96 pixels (width x height) or, alternatively, 128 x 64 pixels. You
can use two colors, which will be shown as shades of gray.
Make sure that the file always keeps the name boot.bmp!

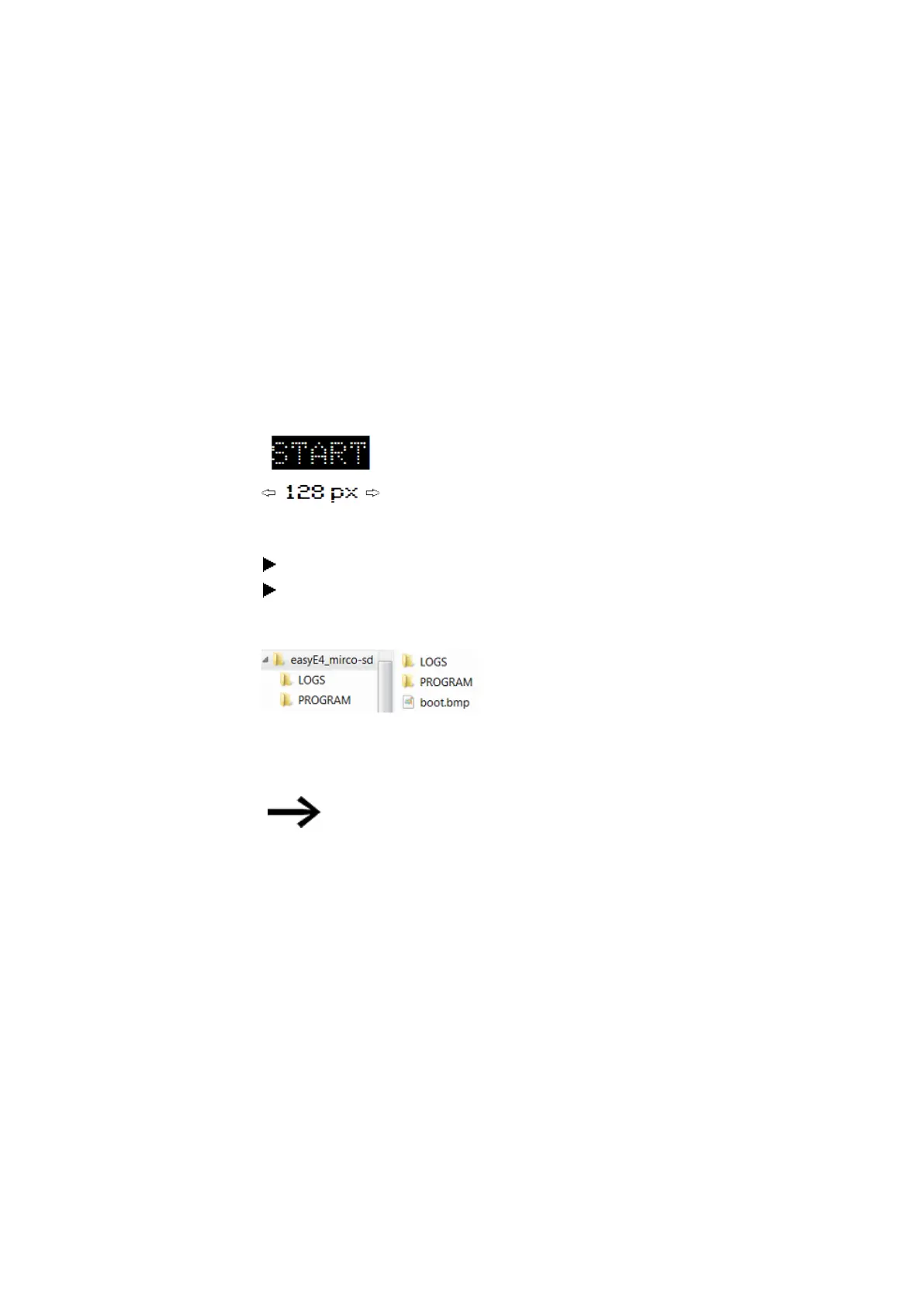

Splash screen
Figure 235: boot.bmp
Transfer the image to the microSD memory card.
Store the boot.bmp file directly on the memory card.
microSD memory card on the PC
Figure 236: Storing the boot.bmp file
As soon as the easyE4 device is switched on,
the boot.bmp will be shown as a splash screen for the defined duration.
In order for the splash screen to keep working, the microSD
memory card must remain in the device.
See also
→ Section "Transfer program to the easyE4 device", page 114
→ Section "Transferring programs from and to a memory card", page 150
→ Section "Overview of switch-on behavior", page 85
→ Section "DL - Data logger", page 380
