6. Function blocks
6.1 Manufacturer function blocks
Example 2: Switching at specific times
The time switch is required to switch from Mondays to Fridays between 6:30 and 9:00
and between 17:00 and 22:30.

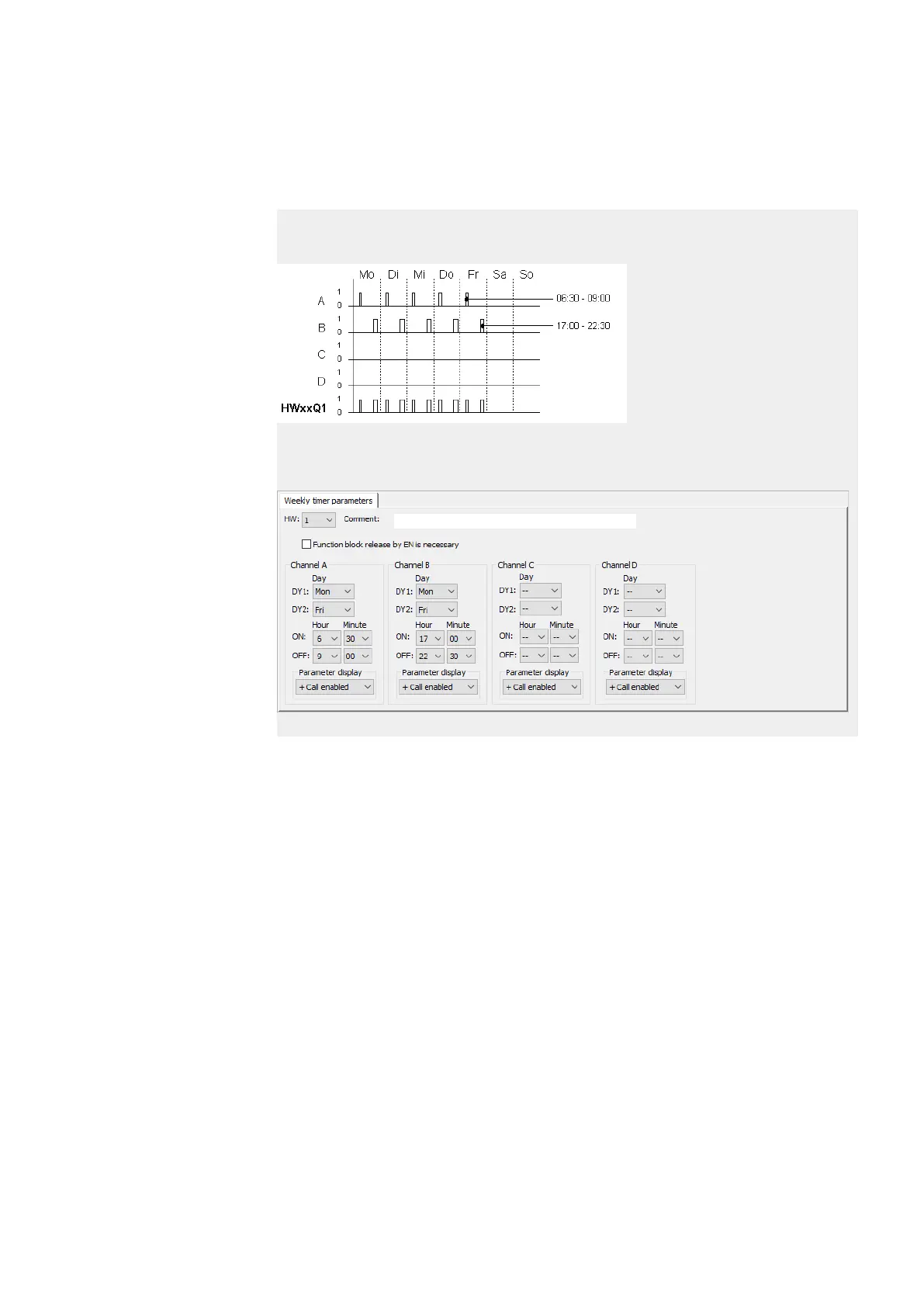

Figure 97: Signal diagram
The HW time switch must be assigned the following parameters:
Figure 98: Figure: Tab with parameters in the Programming view
