Eaton PowerXL DM1 Series - Figure 24. DM1 Pro FR2 with NEMA 1 Kit Dimension Drawing

77
Appendix C—Dimension drawings
POWERXL SERIES VFDS MN040060EN—September 2020 www.eaton.com
Approximate dimensions in inches (mm).

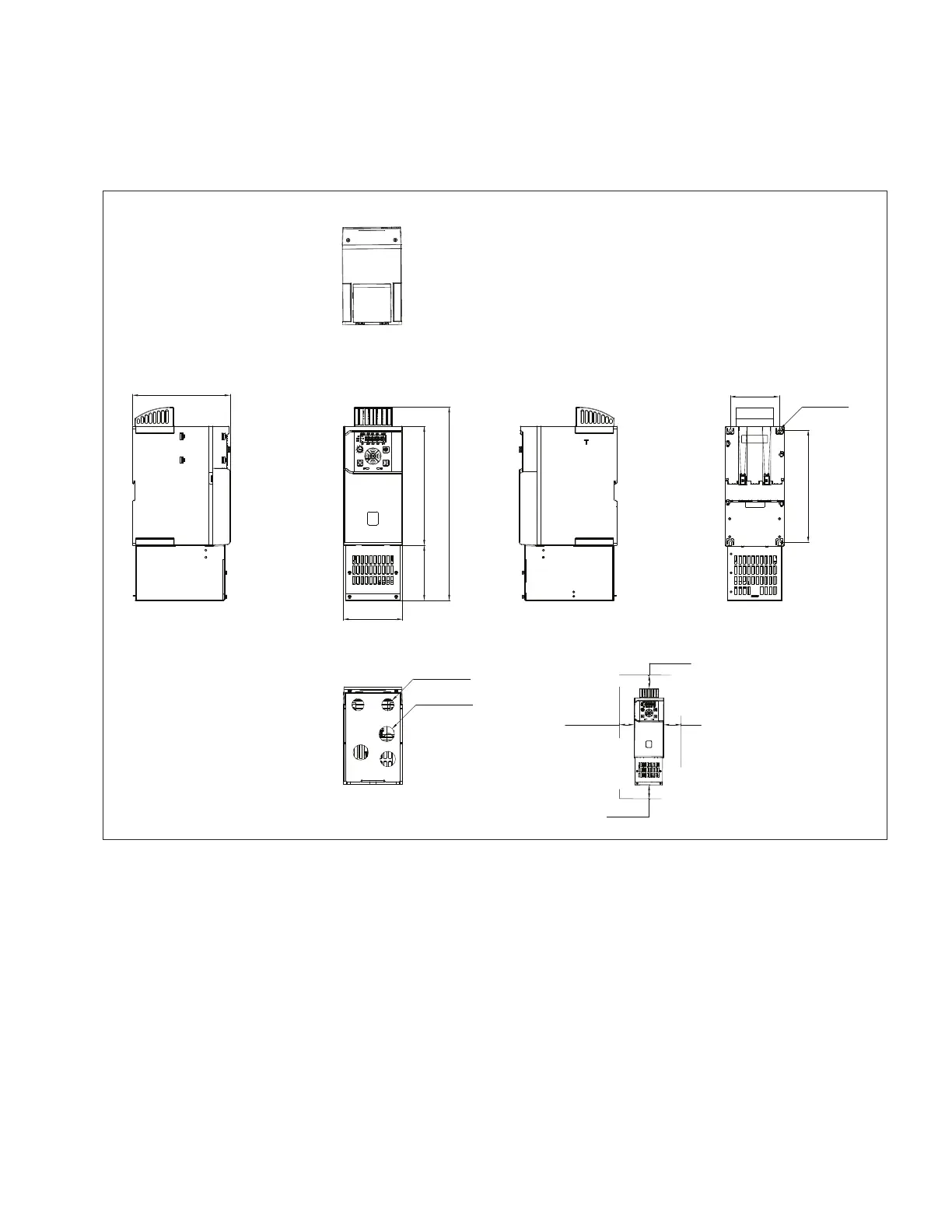

Figure 24. DM1 Pro FR2 with NEMA 1 kit dimension drawing.
DM1 PRO FR2 With NEMA 1 Kit Dimension Drawing
Minimum Dimensions:
A = Free space on the left of drive
B = Free space on the right of drive
C = Free space above drive
D = Free space below drive
Notes:
A=0 for drive without option card
A=70mm for drive with option card
356.5 [14.046]
2-Ø22.5 [Ø0.887]
3-Ø28.3 [Ø1.115]
Ø5.5 [Ø0.217]
207 [8.156]
180 [7.092]
C(50[1.969])
A(0/70[2.756])
B(0)
D(80[3.150])
90.5 [3.566]
220 [8.668]
101.5 [3.999]
109 [4.306]
