XS series operating manual
XS user manual v0.55 - 49 -
7 Insulation resistance measurement
Press on the MEGOHM function key if displayed or from the initialization menu press on FUNCTION
then MEGOHM.
The main test parameters are recalled on the bottom line of the LCD screen..

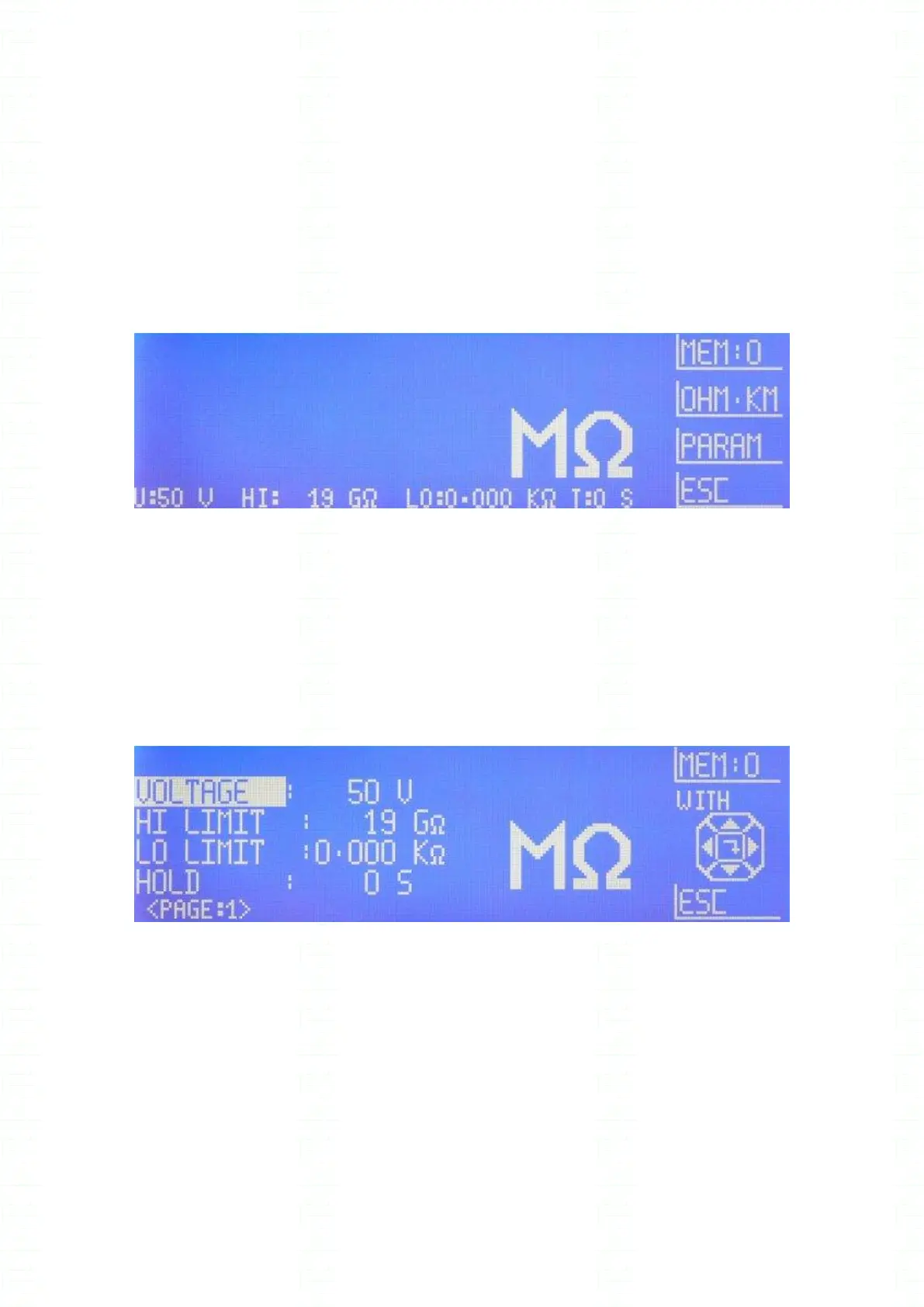

Fig 7.1
Parameter setting
Press on the PARAM function key to enter the parameter setting screen.
If the message [ACCESS DENIED] is displayed, please refer to PARAMETER ACCESS CONTROL
section
Fig 7.2
