P.30
PM10U
EBARA
CORPORATION
A : For model EV-SA20-2 (1Phase 200V)
Use the power cable with ground. Insert the power cable in the grounding power outlet.

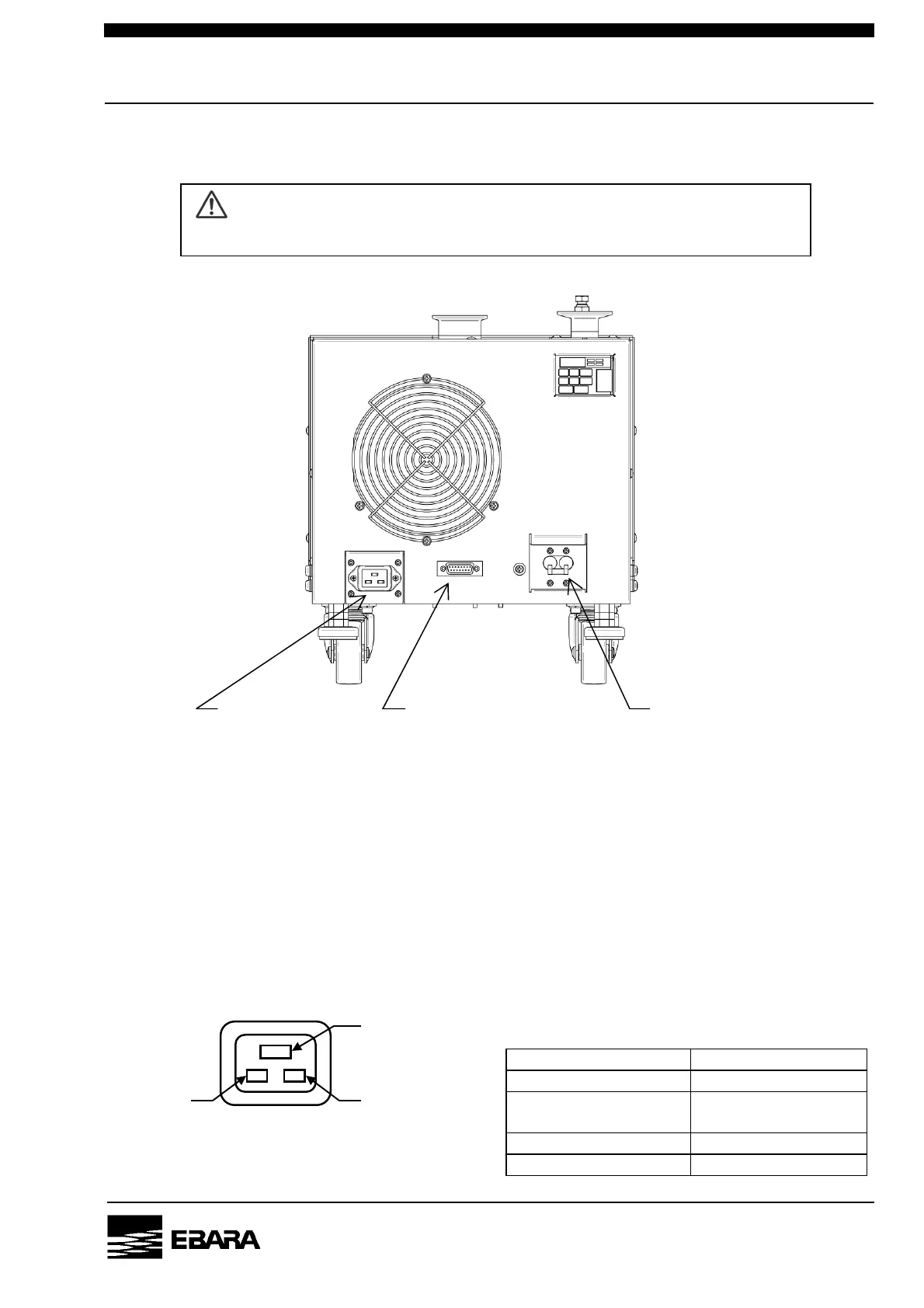

Fig. 3.1 shows details of the front panel of model EV-SA20-2.
Connect the power connector for the main power supply (1Phase, 200-240V±10% and 50/60Hz).
The power connector type is “IEC 60320-C20”. Fig. 3.2 shows the pin assignment of the power
cable. Table 3.1 shows the receptacle and plug specifications.
The connector type of the power cable is “IEC 60320-C19”.
Use the power cable which suits “IEC 60320-C19”.
Transit overvoltage on power supply : Installation category 2 of “IEC 60364-4-443”.
Receptacle type PX0596/63
Recep. Manufacture BULGIN
Recommended adapted
plug type
PX0599
Suitable wire AWG #14
Power capacity [kVA] 3.0
Power connector
: IEC 60320-C20
Control connector
: D-sub 15Pin (Female)
Circuit protector
Fig. 3.1 Details of the front panel of model “EV-SA20-2”
WARNING
Do not use the power cable adapter.
Fig. 3.2 Power Supply Receptacle
(As seen from connecting side)
L N
GND
Table 3.1 Receptacle and Plug
specifications
To Next Page
