P.31
PM10U
EBARA
CORPORATION
B : For model EV-SA20-3 (3Phase 200V)

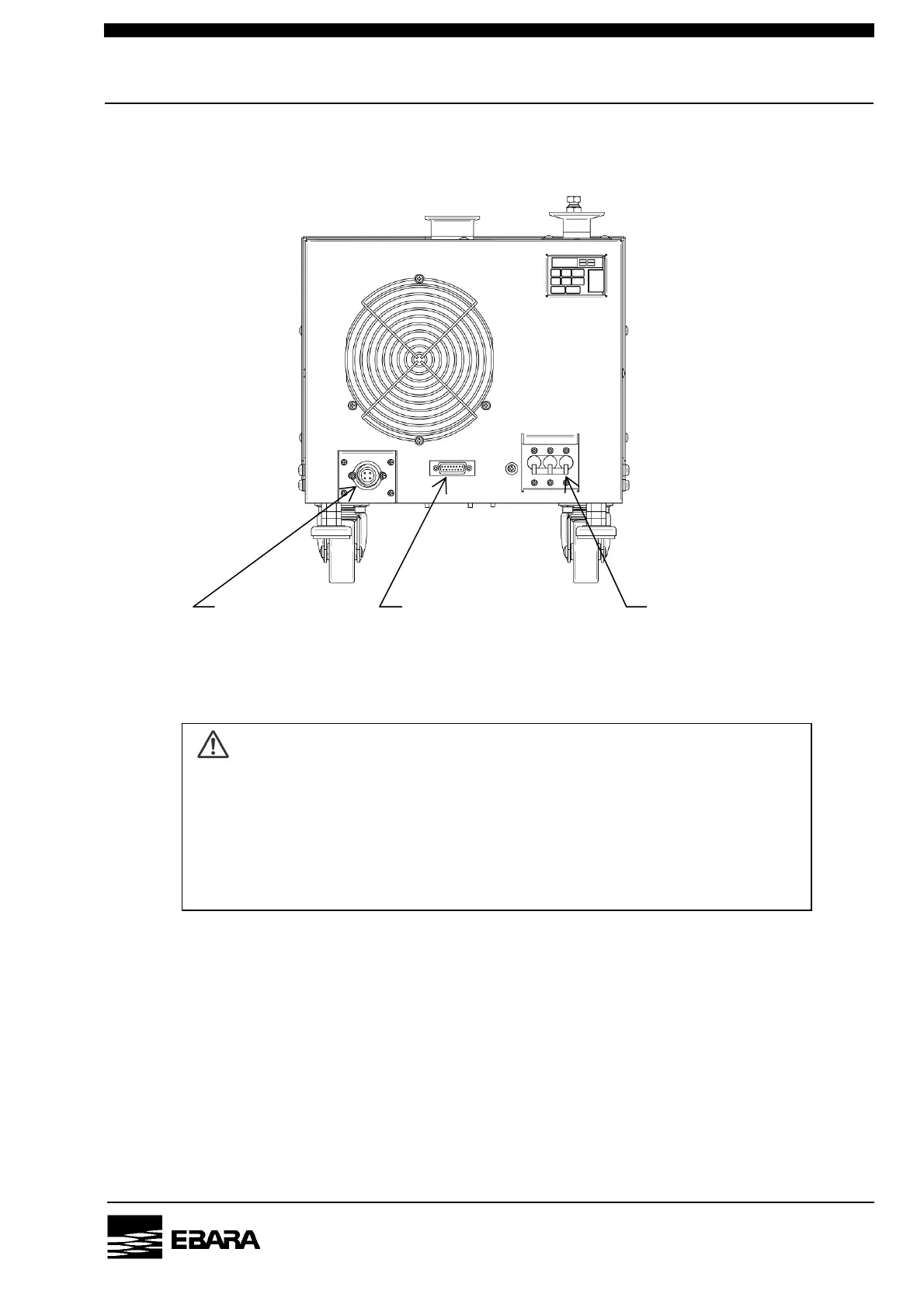

Fig. 3.3 shows details of the front panel of model EV-SA20-3.
Fig. 3.3 Details of the front panel of model “EV-SA20-3”
Power connector
: Amphenol
C016 20C003 100 12
Control connector
: D-sub 15Pin
Female
Circuit protector
WARNING
Model EV-SA20-3 must be connected to electrical supply with a suitable circuit breaker
(CB); 3-Pole, 15A.
CB shall meet the relevant requirements of IEC 60947-1 and IEC 60947-3.
It must be suitably located and easily reached, and marked as the disconnecting device
for the pump.
