Chengdu Ebyte Electronic Technology Co.,Ltd E180-Z6907A User Manual
Copyright ©2012–2019，Chengdu Ebyte Electronic Technology Co., Ltd.
7-26
Note: Only the connected device holding the same link key (LinkKey) as the trust center (coordinator) can it connect to
the network of the trust center (coordinator), and the trust center (coordinator) transmits the network key to the connected
device , The connected device completes the process of joining the network to obtain the network key for normal
communication.
6.6.28 firmware version number
Firmware_version: 82 69 01
82 69 means 8269 chip of Telink
01 means firmware version number
7. Quick start
7.1 Establish a ZigBee network quickly
Quickly and easily establish a ZigBee network via PC software（Create network by E180-ZG120A / B). The steps
are as follows:
(1) Connect Zigbee ad hoc module via USB to UART converter, open host computer software

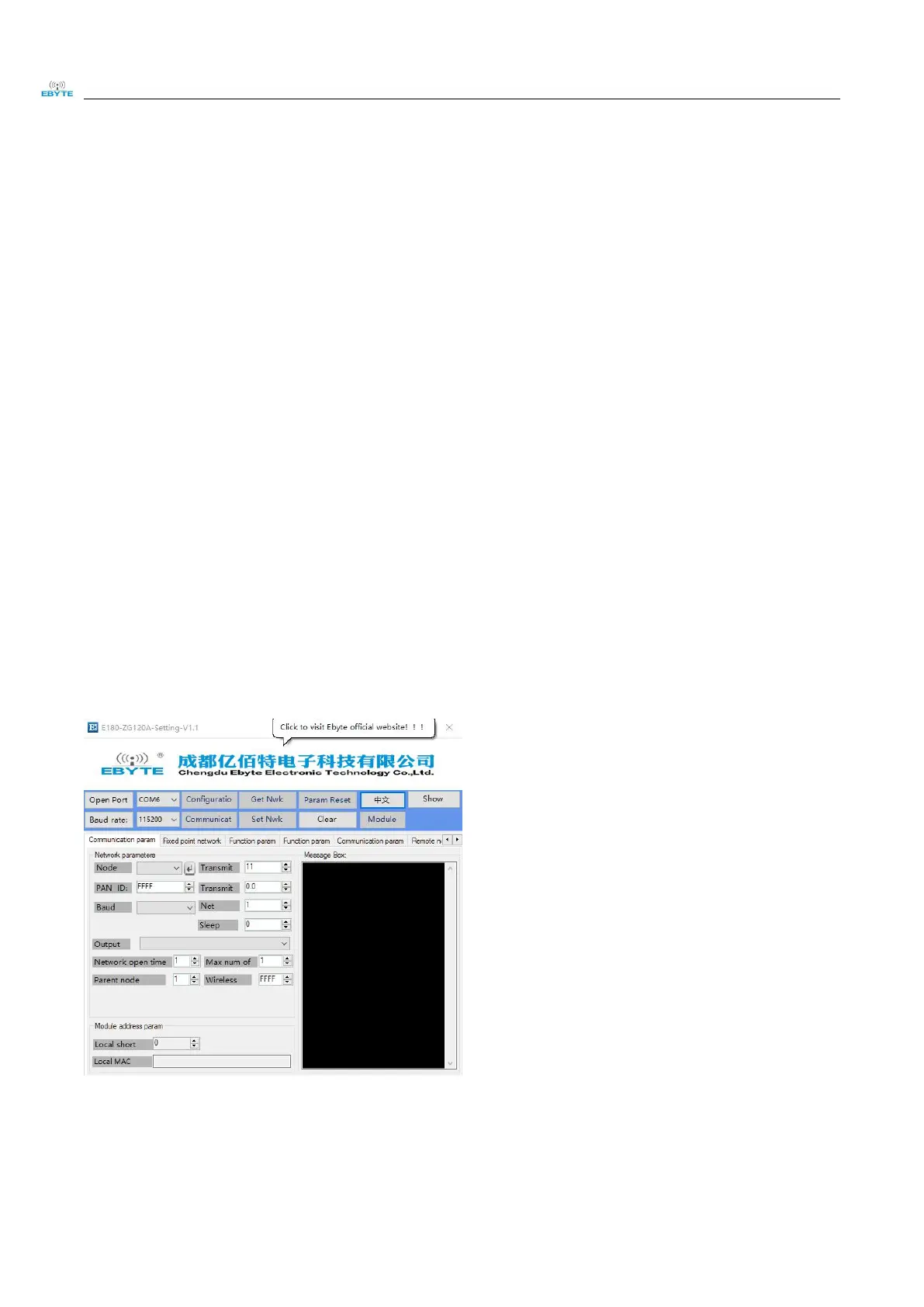

“E180-ZG120A-Setting v1.2” , as shown in the screenshot below, select port number and set baud rate as
115200(default), then open port.
(2) After the serial port is opened, first click “Enter Configuration Mode”, the message box prompts “Enter the
configuration status successfully, read parameter successfully”. The main network parameters include: the node type
