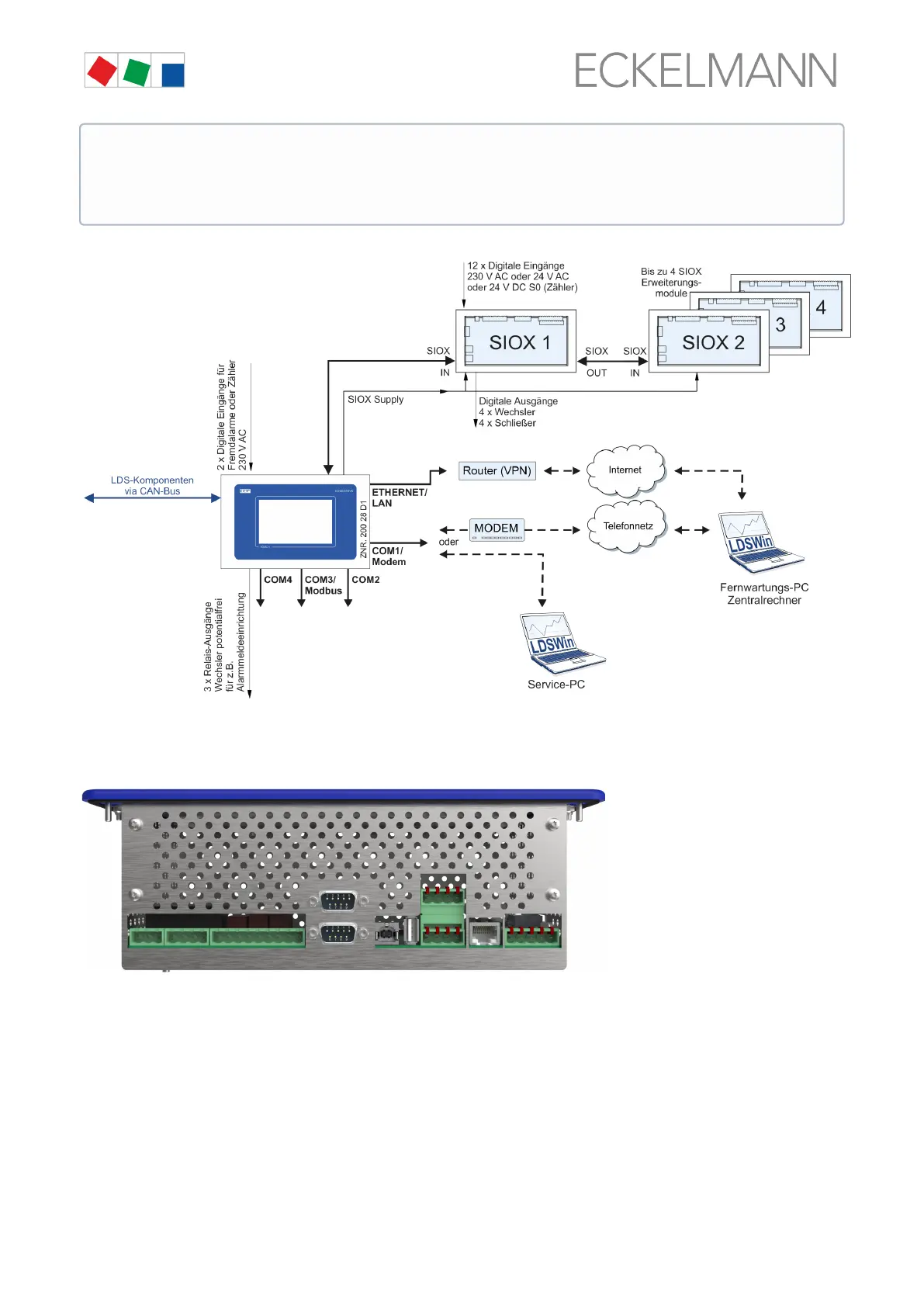

The system centre (complete design) in the E*LDS system:
3.2 Connections in the complete design
Inputs and outputs - bottom
2 x digital inputs 230 V AC, floating as alarm and signal inputs (external alarms) and meter reading
3 x relay outputs 230 V AC, floating:
2 x bistable changeover contacts for signalling alarm of PRIO 1 and PRIO 2, e.g. for connection to a
telephone dialling device
1 x changeover contact (AUX) for, e.g. an audible signalling unit
The system centre can be expanded with up to max. 4 SIOX extension modules. For each SIOX, 12
additional digital inputs (for meters, alarms etc.) and 8 additional relay outputs (for week timers, load
shedding) are available.
For details, see chapter SIOX extension module - for DIN rail mounting, page 47 DIN rail mounting - SIOX
Extension Module.
The CI 4000 series does not have any direct interfaces to the old LDS1 system (VS 1000 / VS 2000
and CI 320 / CI 322)! LDS1 gateways that are connected via the COM3/MODBUS interface are
requiredfortheinclusionofLDS1casecontrollers.Formoredetails,seethe“LDS1 Gateway”
operating manual.

