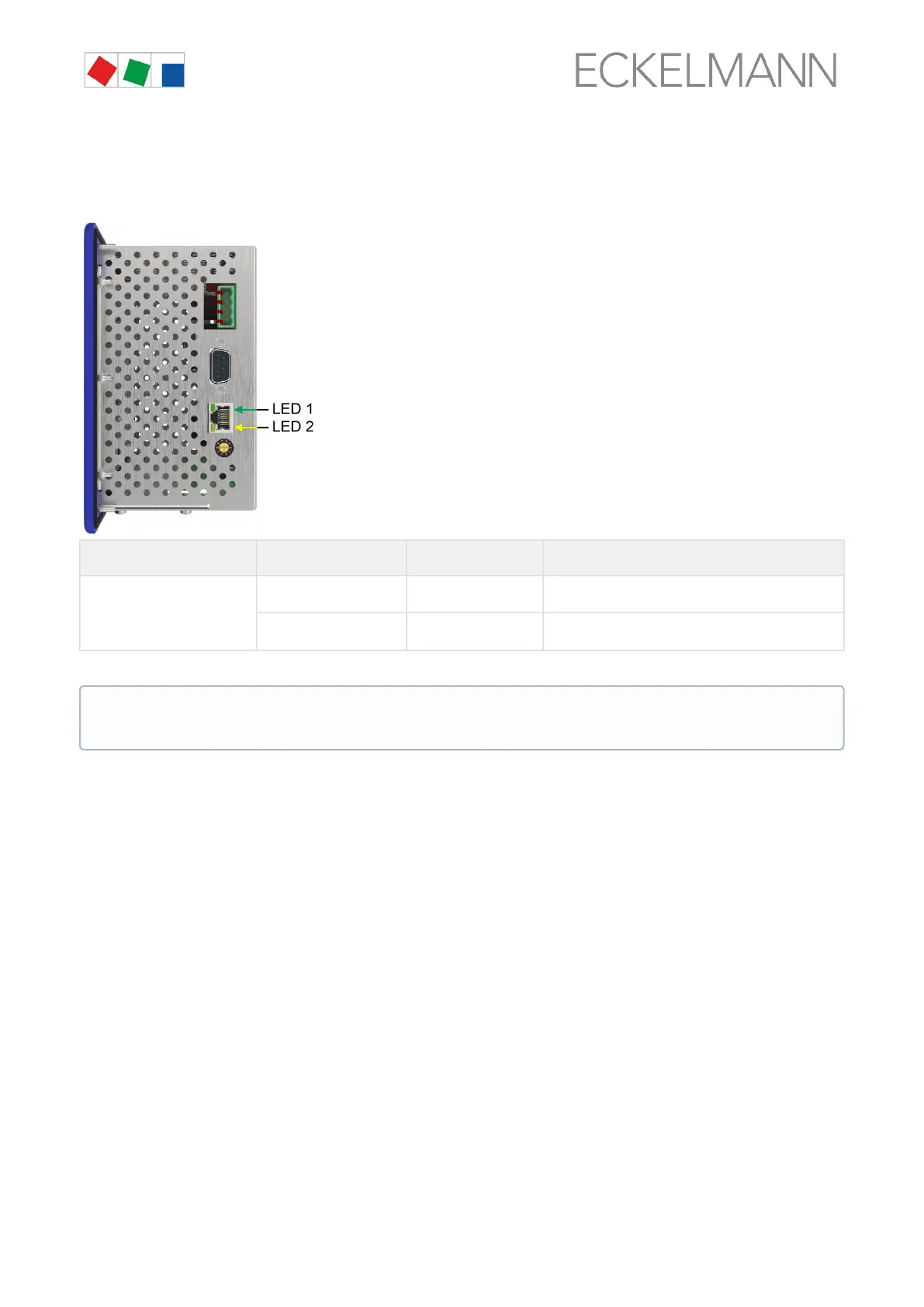

6.8.1 Status LEDs Ethernet
Function Colour LED Description
Ethernet

green LED 1
ON: Ethernet connection present
Flashing: data transfer
yellow LED 2
ON: 100 MBit/s
OFF: 10 MBit/s
Information for the precise terminal assignment can be found in chapter System centre terminal
diagram.

