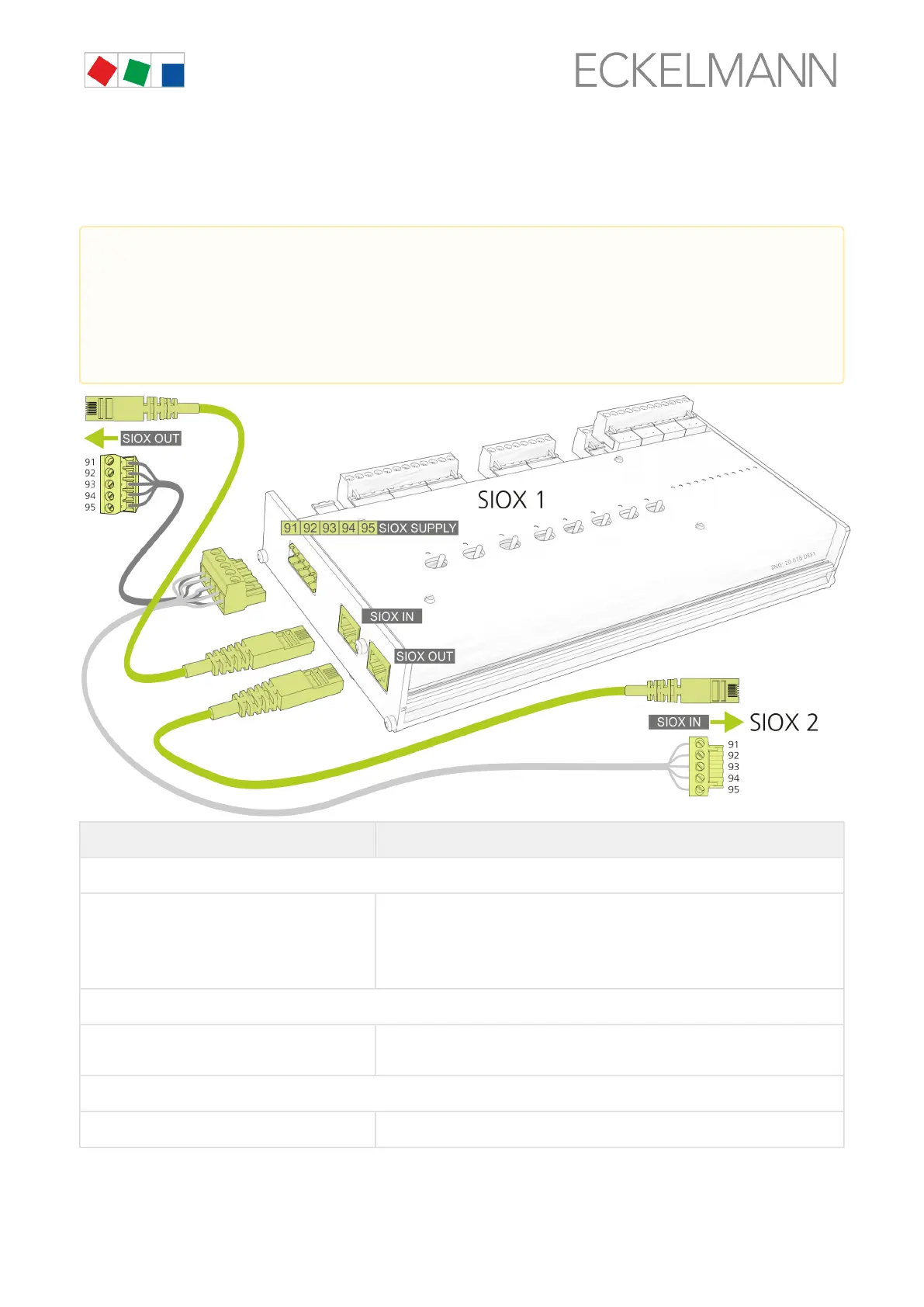

7.2.3 SIOX - Terminal assignment of the interfaces
The SIOX supply cables and the SIOX data cables are used for the the connection of a SIOX extension module
to the system centre and/or to another SIOX. The interfaces are located on the left on the device.
Terminal No. Function
Power supply - SIOX-SUPPLY *
91
92
93
94
95
Ground of 9 V
+9 V DC
Ground of 24 V
+24 V DC
SHLD (shield)
Data port - SIOX IN *
RJ45 female connector Input of the SIOX data cable from the system centre (connection "SIOX OUT") or
from a previous SIOX (connection "SIOX OUT")
Data port - SIOX OUT *
RJ45 female connector Output of the SIOX data cable to the next SIOX (connection "SIOX IN")
Danger of destruction of components! SIOX extension modules may only be connected to each
other or the system centre when no voltage is present! In the event of an Ethernet network cable with
PoE (Power over Ethernet) being used instead of the SIOX data cable (RJ45) damage can occur to
participating network devices! Maximum 4 extension modules can be connected to the system centre.
Only components approved by Eckelmann AG may be connected to the SIOX extension bus (terminals
SIOX OUT / SIOX IN or terminals 91..95)! The total length of the cabling for the SIOX cables and the
SIOX data cables is maximum 30 m in each case!
