ECKELMANN CI 4000 Series - Alarm Suppression During Manual Shutdown of Case Controllers

Firmware V6.6.9
29.07.2020
35/147
E*LDS components CAN bus addresses Max. number of E*LDS components in the
CAN bus
Case controllers
UA 300 and UA 400 series
1 .. 99 99
Pack controllers
VS 3010 / VS 3010 BS / VS 3010 CT / VS 3010 WP /
FS 3010 / VS 300 / VS 3010 C / VS 3015 C / VS
3015 CT
101 .. 109 9
System centre of the CI 4000 series 111
127
1 system centre and
1 integrated LAN gateway
AL 300 operator terminal 112 .. 116,
117 .. 120
9 or max. 5, if 4 receiver modules are present in
the system.
Receiver module WR 300
for wireless sensors TS 30 W / TS 30 XW
117 .. 120 4(onlypossibleifNOAL300operatorterminal
uses these CAN bus addresses)
DDC modules of the GLT (building control) 122 .. 125 max. 4 if no Modbus TCP master gateways are
present in the system.
LDSWin PC via CAN bus to PC adapter 126 1
LDSWin PC via LAN gateway (version 1.1c and
higher)
126 or 127 1

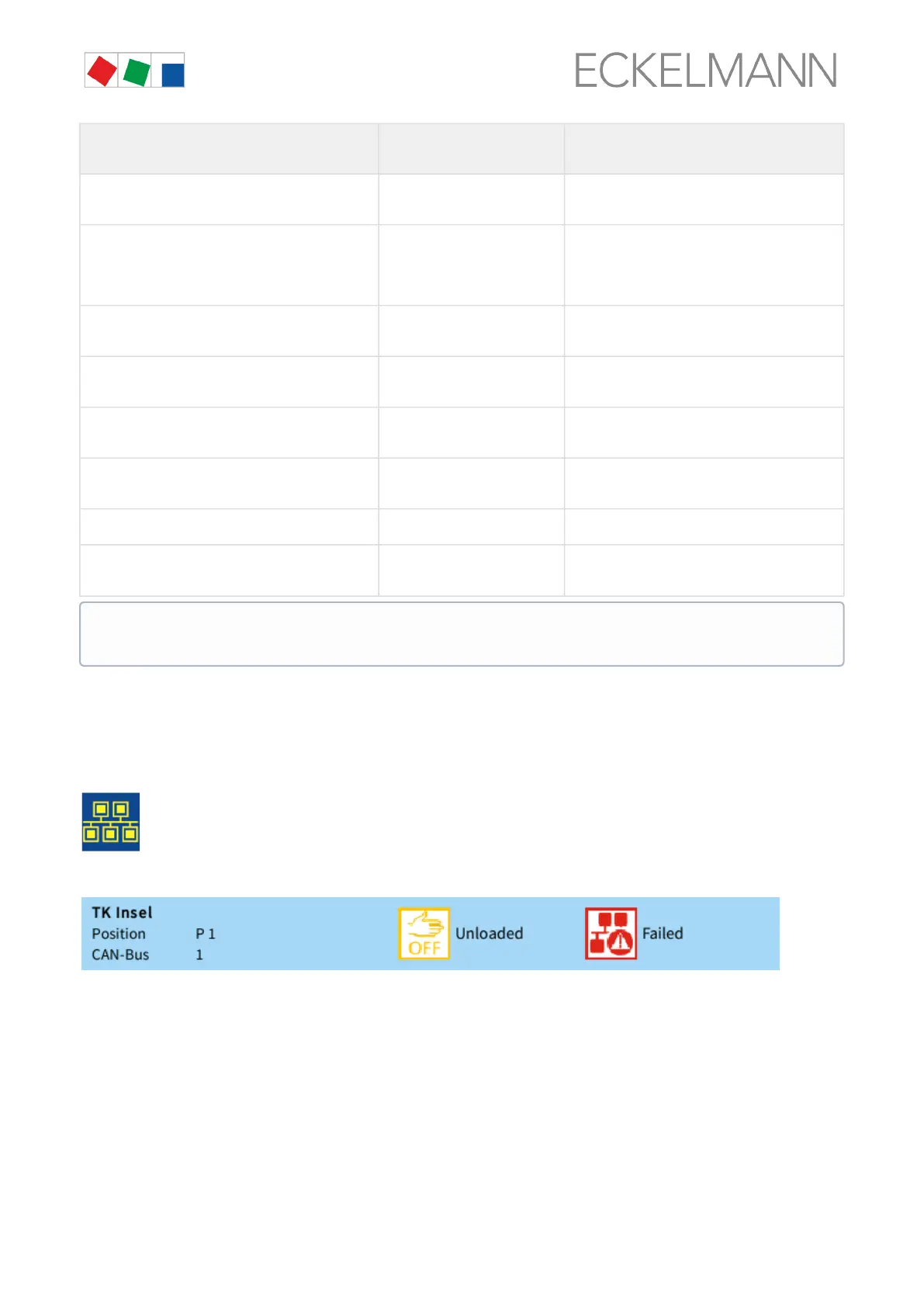

5.7.9.1 Alarm suppression during manual shutdown of case controllers
If a case controller is switched off, e.g. for cleaning purposes, or it has failed,, this is detected as failed by the
station monitoring. The following symbol is then shown in the status bar at the top right in the display of the
systemcentre:
If the user taps on this symbol within 5 minutes (see also chapter Status bar and quick info), he has the
possibilitytodeclaretherefrigerationpointinthefollowingscreenas,e.g."switchedoff":
If the confirmation is made in good time (yellow "Switched off" button), the case controller concerned is
removed from the monitoring and entered in the message list with the message "manual shutdown" and a
yellow warning sign.
If the red "Failed" button has been pressed, an alarm is signalled that the case controller has failed and the
message"Computerfaultxx"witharedwarningsignareenteredinthealarmlist.
If a switched off or failed case controller is switched on again, this is automatically registered in the station
monitoring again. After it has been switched on, the alarm of the failed case controller can then be
acknowledged in the alarm list.
If the system centre fails or is switched off, the operator terminal (if present) with the lowest CAN bus
address takes over the monitoring for the duration of the shutdown!

