7 System centre and SIOX connection / terminal assignment
System centre terminal diagram
SIOX extension module terminal diagram
7.1 System centre terminal diagram

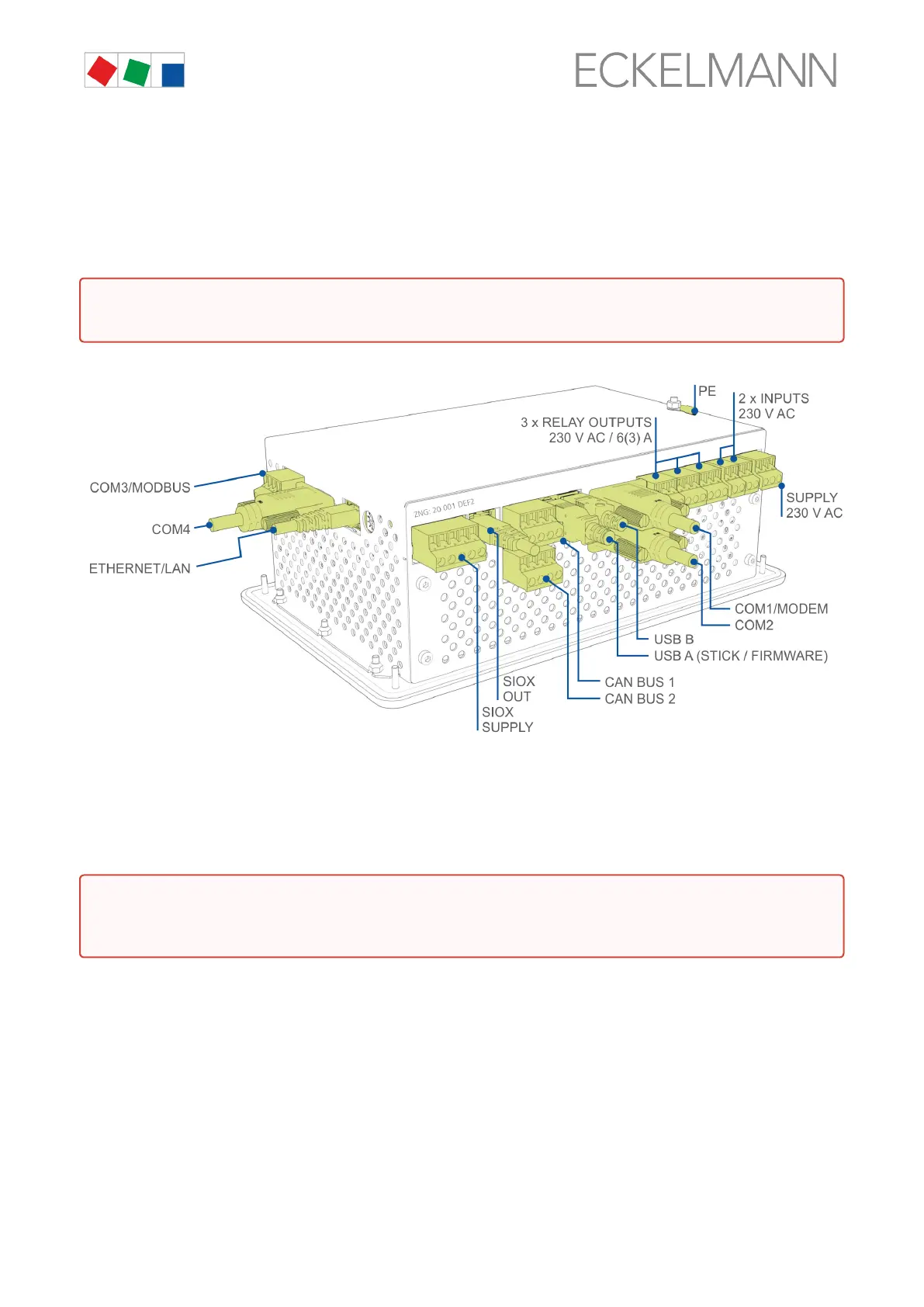

The following figure shows the system centre in its complete design:
The detailed description of the connection and terminal assignments of the system centre and its components
is shown on the following pages.
7.1.1 Terminal assignment of the 230 V AC power supply
The connection is used for the power supply of the system centre and is located at the bottom on the device.
Warning about dangerous electrical voltage! In order to guarantee reverse polarity protection, only
coded mating connectors may be used on the control component connections.
Warning about dangerous electrical voltage! Danger of electric shock! BEFORE connecting and
disconnecting it must be checked that the 230 V AC power supply cable is disconnected from the
power supply! The controller is only permitted to be connected to the intended mains power supply!
