ECKELMANN CI 4000 Series - SIOX - Configuration of Jumpers

Firmware V6.6.9
29.07.2020
43/147
•
•
•
•
•
•
•
Forfurtherinformation,seechaptersTerminal assignment of the SIOX interfaces and SIOX - Terminal
assignment of the interfaces.

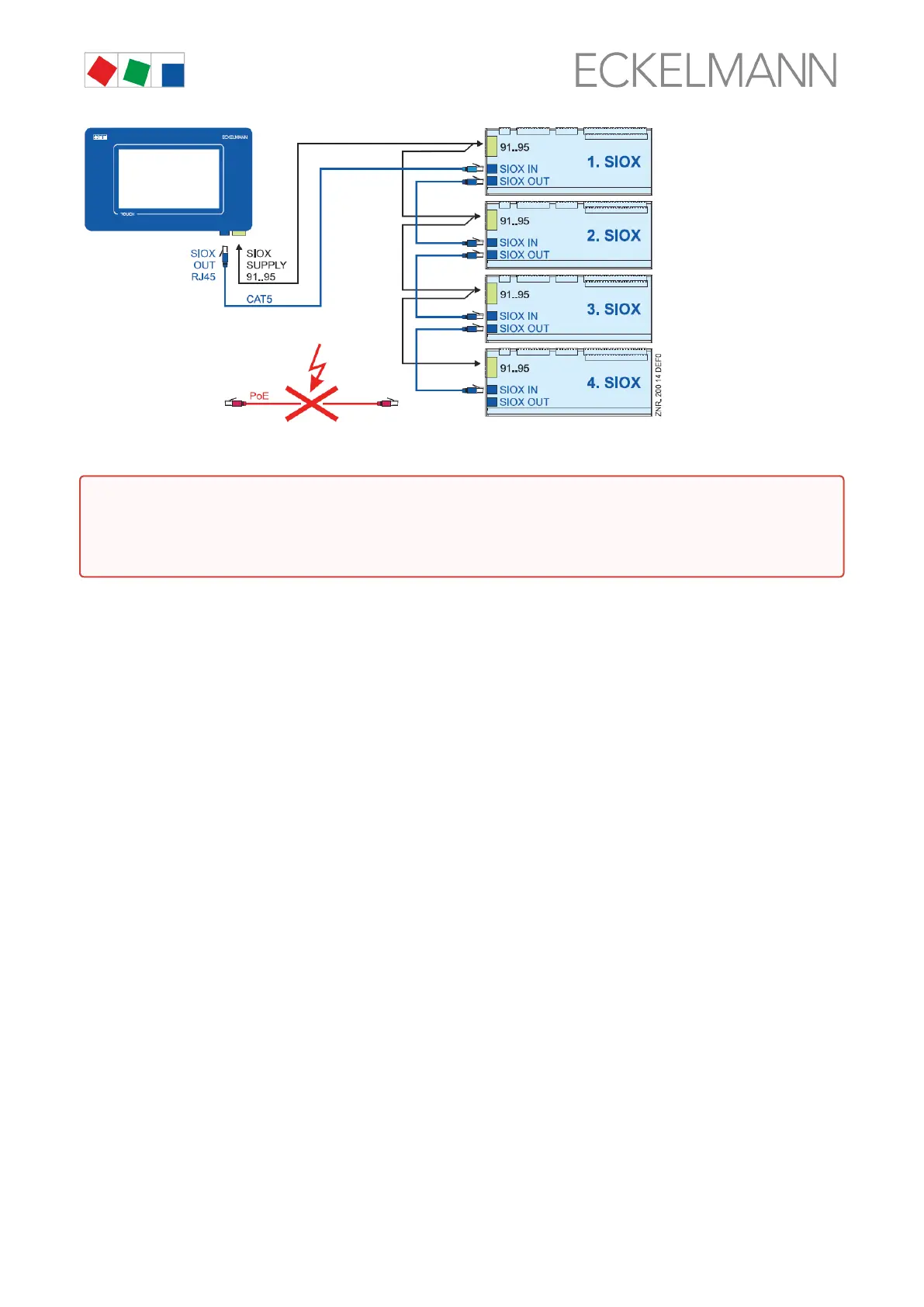

SIOX power supply cables
Shieldedcableswithcrosssection>0.5mm2mustbeusedforthe5powersupplycables(terminals
91-95).Forexample,theuseofLiYCY 4 x 0.75 mm2 with 25 ohm/km is recommended.
Max. permitted cable length is 30 m.
The power supply of the controller is designed for the connection of maximum 4 extension modules.
SIOX data cables
The data cables (SIOX IN / SIOX OUT) should not be routed in the immediate proximity of high voltage or
high frequency cables.
When routing the cables, care must be taken to ensure that the minimum bending radius is complied with
and that the cables are not routed parallel to cables which have the potential to generate strong
interference coupling.
Max. permitted data cable length is 30 m.
CAT5 cables or better must always be used, see chapter Accessories for system centre v6.0.
ATTENTION: DO NOT connect using the Ethernet network cable!
6.2.2 SIOX - configuration of the jumpers
Configuration of the digital inputs
The 12 digital inputs (terminals A1 A2/ ... /L1, L2) of each SIOX extension module can be configured for 24 V
AC/DC/230VACusingjumpers.
Danger of destruction of components! SIOX extension modules may onlybeconnectedtoeach
other or the controller when no voltage is present! In the event of an Ethernet network cable with PoE
(Power over Ethernet) being used instead of the SIOX data cable (RJ45) damage can occur to
participating network devices!

