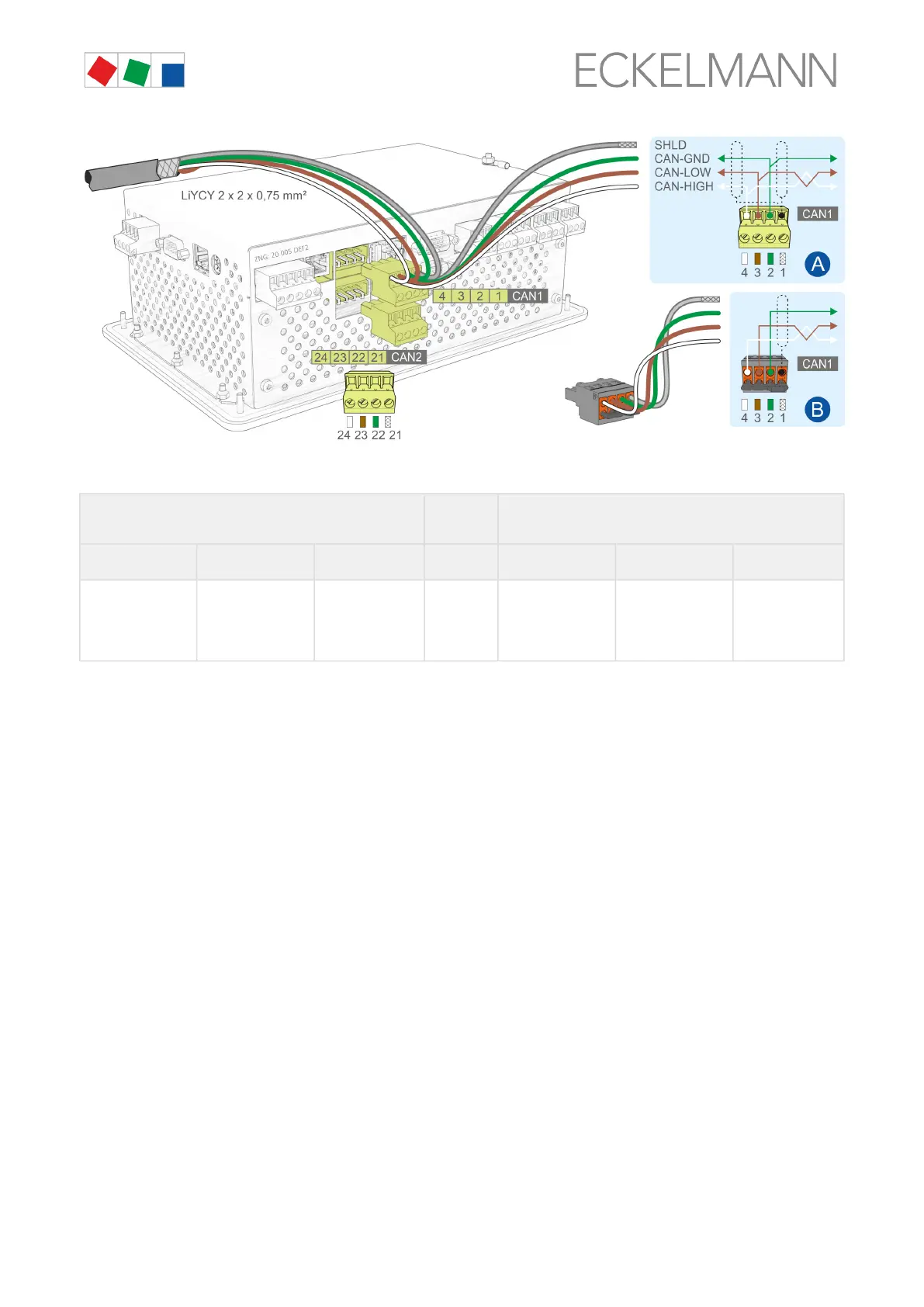

Connection to the CAN bus, shown here using the first CAN bus segment (CAN1) as example. This also
applies for the second CAN bus segment (CAN2).
CAN1 - First CAN bus segment
Standard
CAN2 - Second CAN bus segment
Only CI 5500: Repeate function
Terminal No. Function Wire colour Terminal No. Function Wire colour
1
2
3
4
SHLD (Shield)
CAN-GND
CAN-LOW
CAN-HIGH
shield
green
brown
white
21
22
23
24
SHLD (Shield)
CAN-GND
CAN-LOW
CAN-HIGH
shield
green
brown
white
For details
, see chapter CAN bus - Connection of E*LDS Componentsandoperatingmanual“Basics and general safety
and connection instructions”.
