Section 8. Engines & Fire Protection Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 157
8.4.10 Fuel Flow

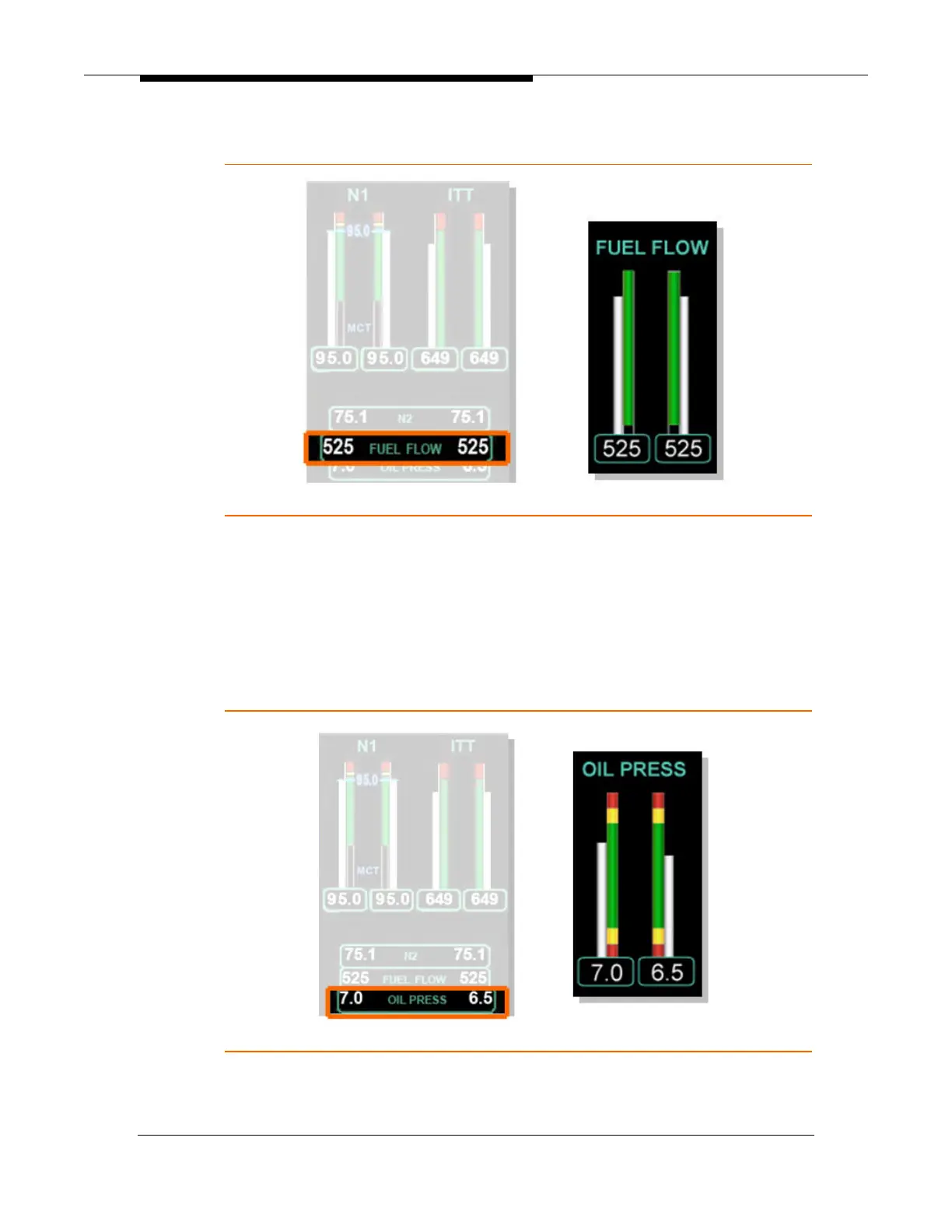

Figure 101. Fuel Flow Displays- Digital and Tape
Fuel flow is continuously displayed on the MFD with a digital readout in pounds per
hour (PPH) and with a white moving tape and digital readout on the engine synoptic
page. The scale of the tape is 0-800 PPH. An adjacent tape displays fuel flow range,
with a green band extending from 60 PPH to the top of the tape. There are no amber
or red bands.
8.4.11 Oil Pressure
Figure 102. Oil Pressure Displays- Digital and Tape
