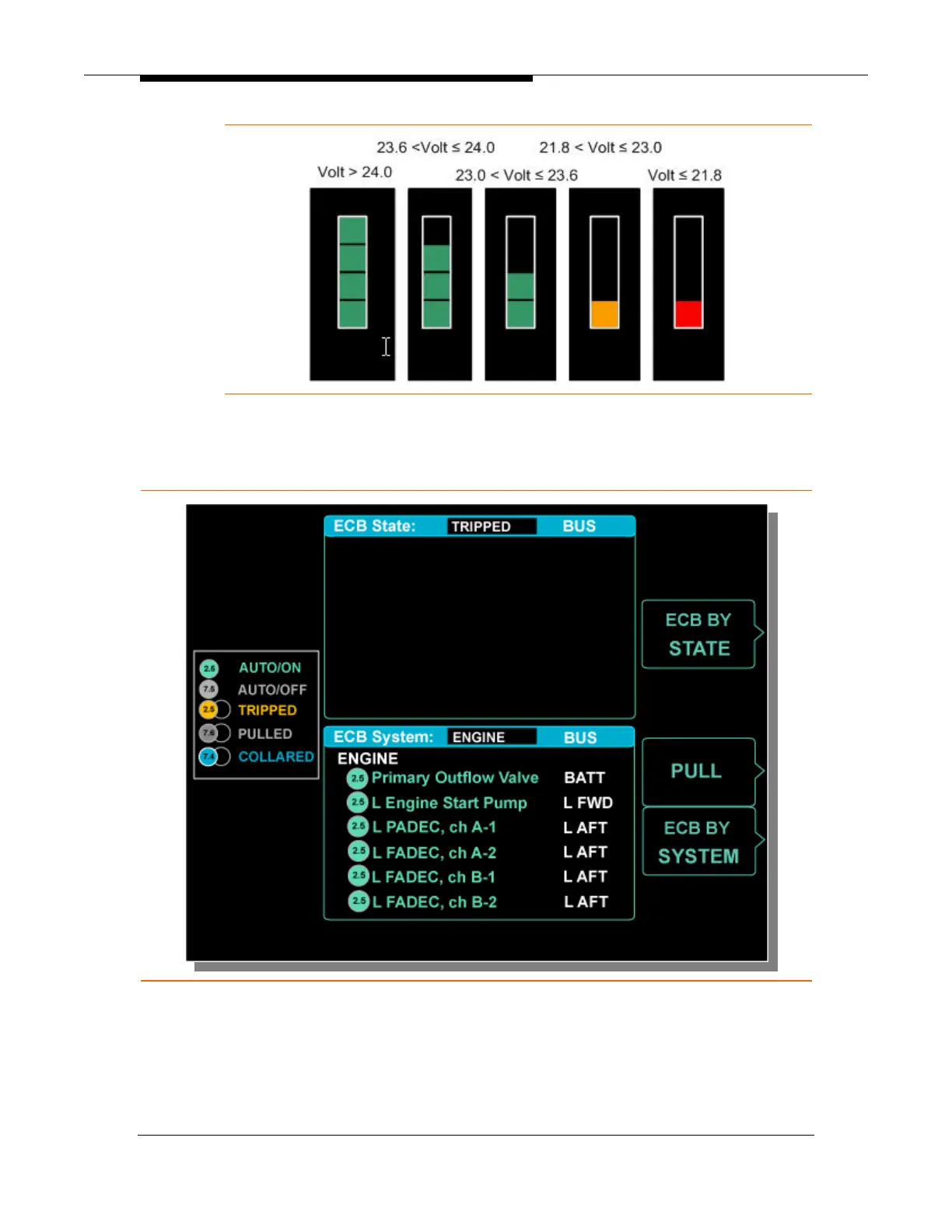

Figure 141. Battery State Display
10.4.3 Electronic Circuit Breaker (ECB) Synoptic
Figure 142. Electronic Circuit Breaker Synoptic
The upper display allows the pilot to select the ECBs by state, out, tripped, pulled or
collared. The lower display allows the pilot to select the ECBs by system.
