COMPASS ROSE
The 360° compass rose consists of a selectable compass rose scale and aircraft
symbol and is selectable to a full or forward looking display. Compass headings are
displayed with two digits, having no leading zeros (ex. 03 for 30 degrees) through the
use of the VIEW/RANGE line select key and left concentric knob.

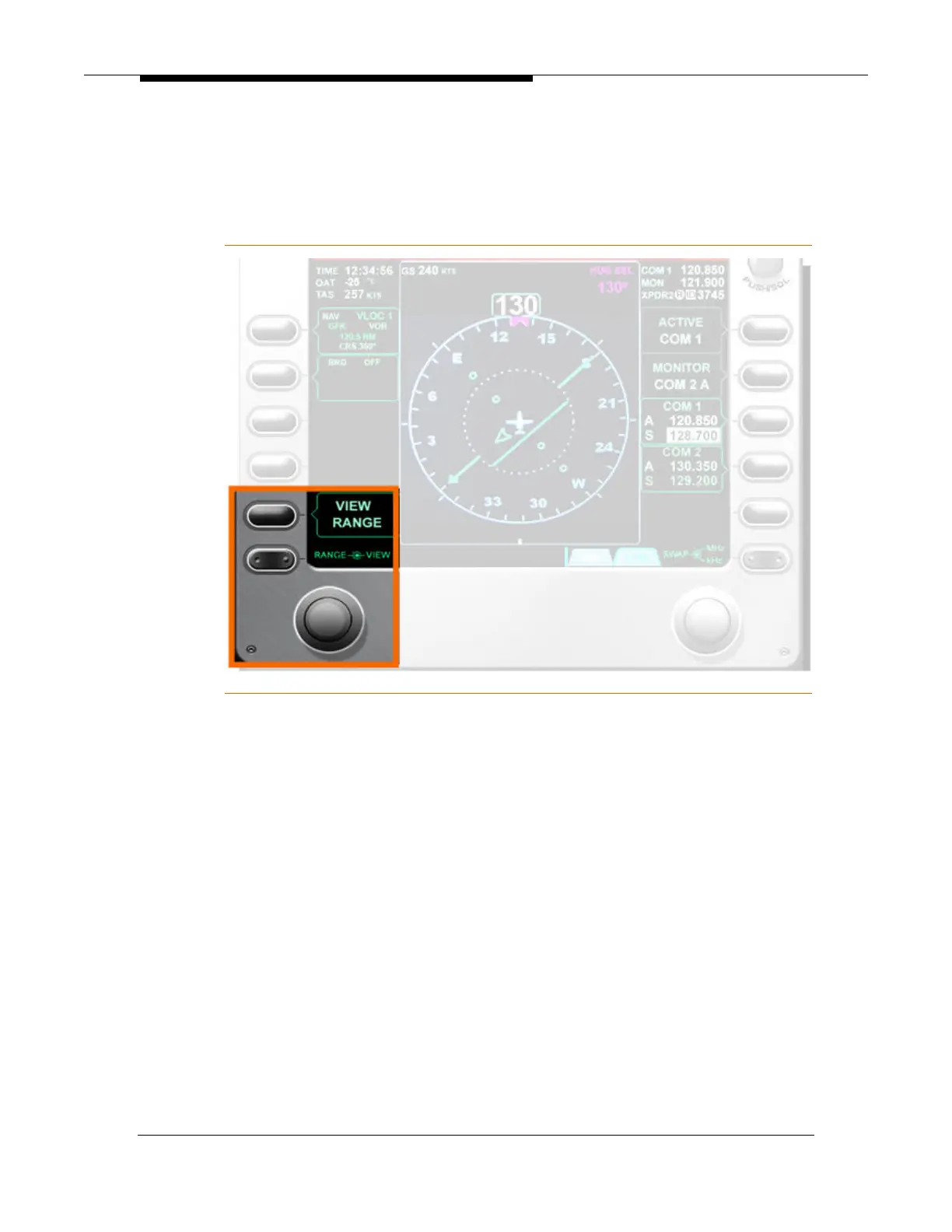

Figure 207. View/Range Selection
View
With the full compass view, 360° with N, S, E, W cardinal headings displayed, the
aircraft symbol is located at the center of the full compass rose scale. Major
graduation marks are located every 10 degrees, beginning at North. It displays
numeric labels for non-cardinal headings every 30 degrees starting from North
and displays N, E, S, or W for the appropriate cardinal headings.
