Section 14. Primary Flight Display (PFD) Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
318 Version 2.0 April 2007

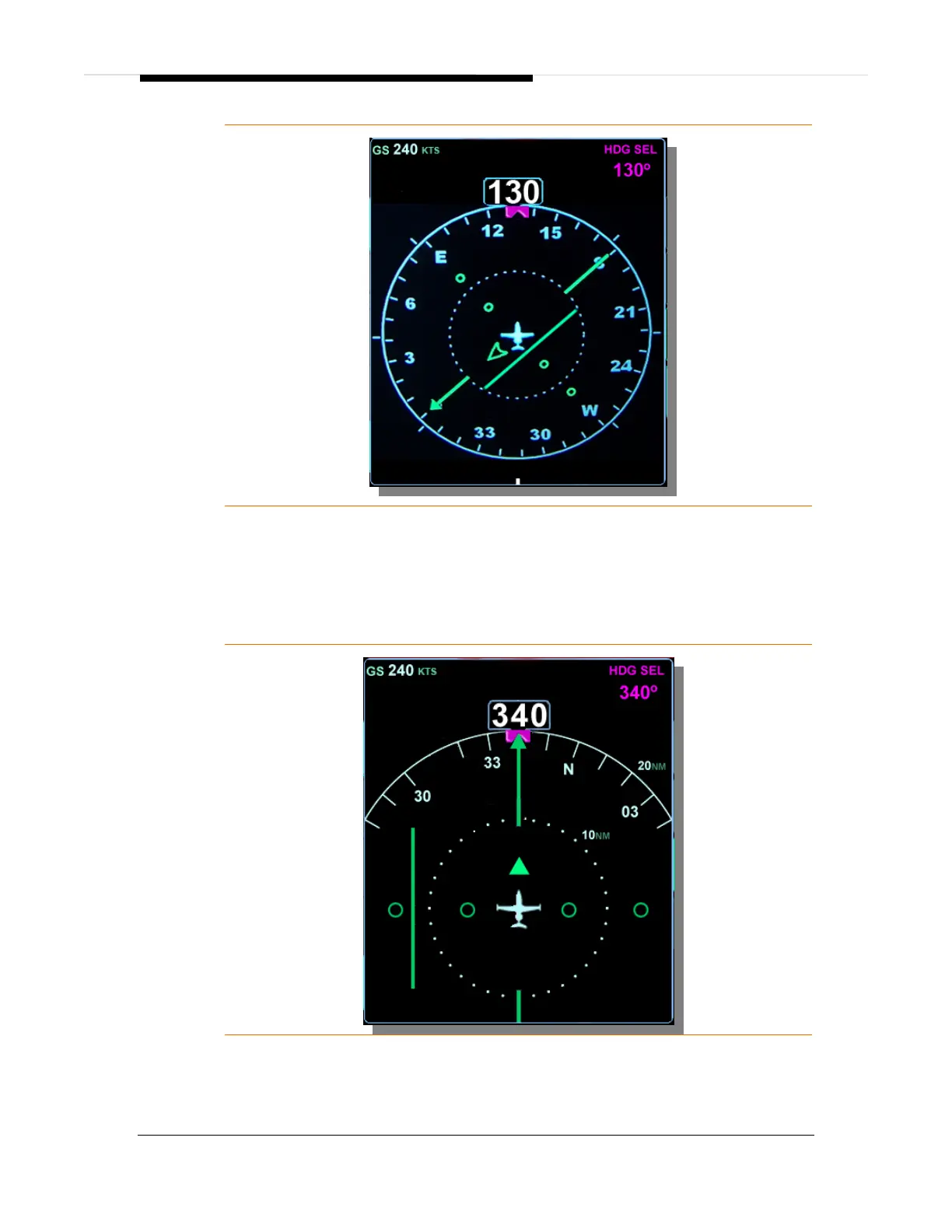

Figure 208. 360 Degree Compass View
The forward-looking arc compass rose scale depicts 120 degrees and maintains the
same graduation scale as the full view. The wing/fuselage intersection of the aircraft
symbol is at the radial center of the forward-looking arc compass rose scale and
points towards the top of the screen.
Figure 209. 120 Degree Arc View
HSI Map Range (NM)
