Section 15. Multi Function Display (MFD) Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
354 Version 2.0 April 2007
15.5 Tile 2 – Engine Instruments

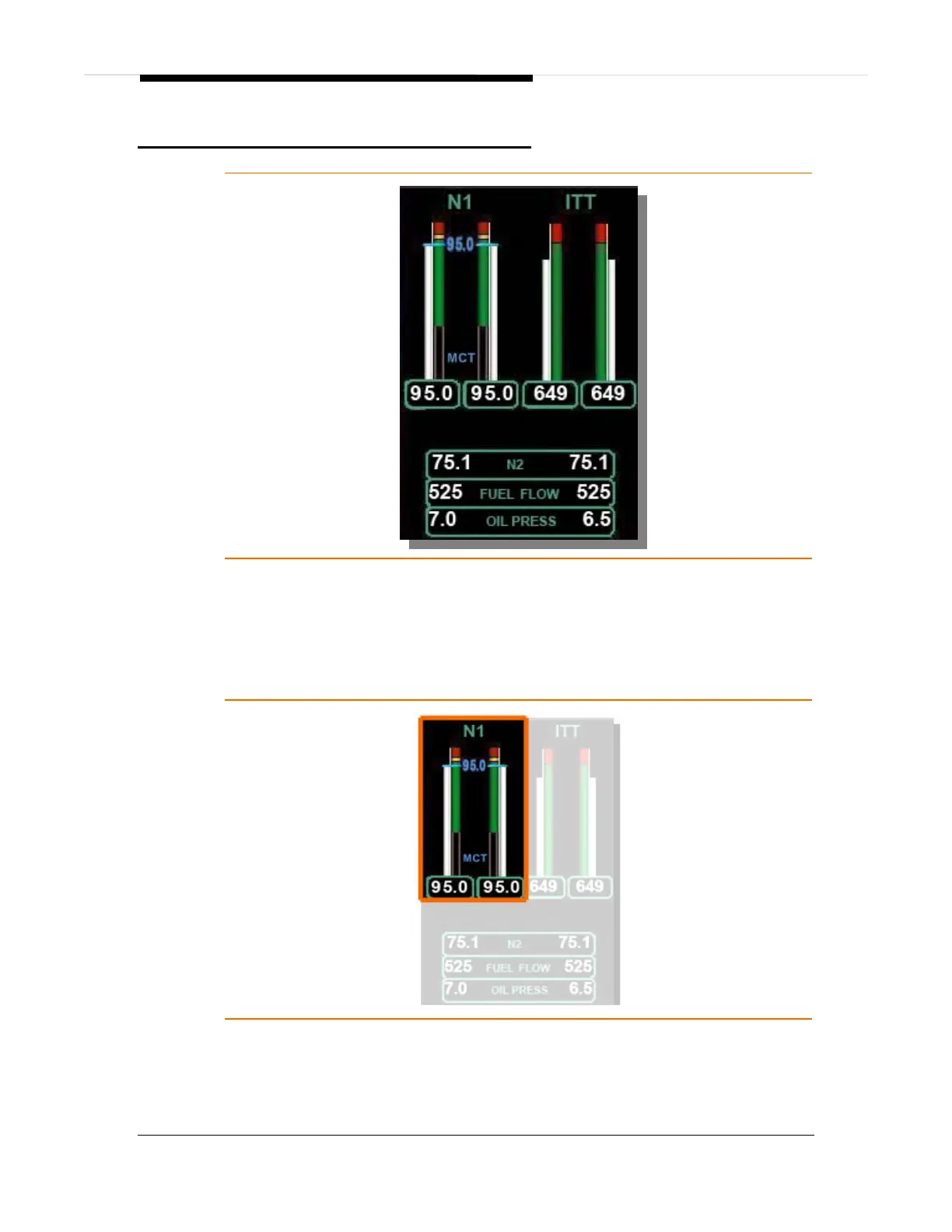

Figure 236. Engine Instruments
Tile 2 displays N1 and ITT tapes, as well as N2, Fuel Flow, and Oil Pressure in digital
format.
15.5.1 N1 RPM
Figure 237. N1 RPM
N1
is continuously displayed on the MFD with a moving tape and digital readout in
percent of maximum RPM. The scale of the tape is 0 to 105%. An adjacent tape
displays N1 limits. A green band on the limit tape extends from approximately 21% to
