Section 15. Multi Function Display (MFD) Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
360 Version 2.0 April 2007
15.6.1 Landing Gear
The Landing Gear position displays the status of the gear by both the color and
shape of the indicator.
A green circle with white border indicates the gear is Down and Locked.

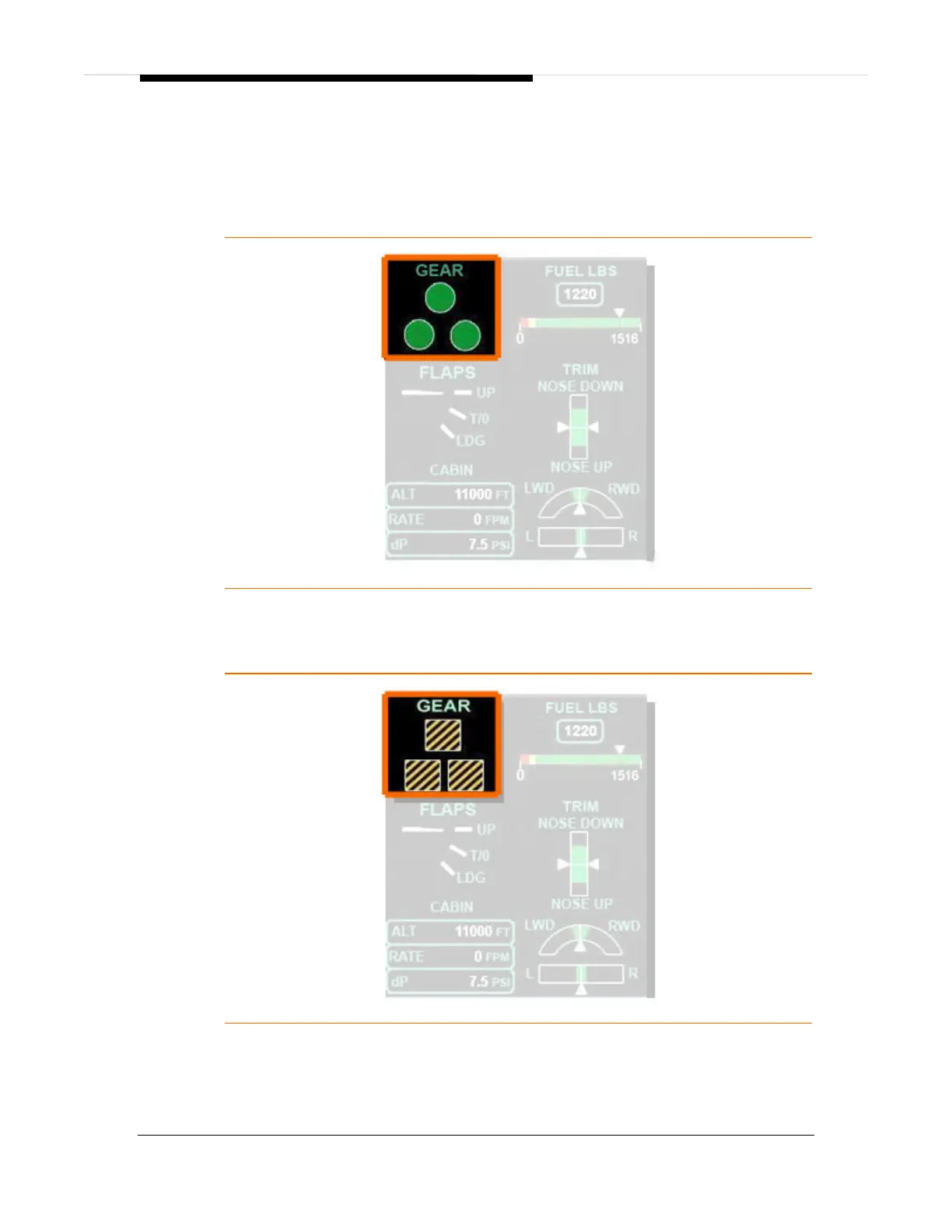

Figure 244. Landing Gear Down Locked Indication
An amber hatched square indicates the gear is in transit
Figure 245. Landing Gear In Transit Indication
A hollow white square indicates the gear is Up and Stowed.
