Section 15. Multi Function Display (MFD) Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 361
When all three landing gear are Up and Stowed for ten seconds, the white
squares will disappear.

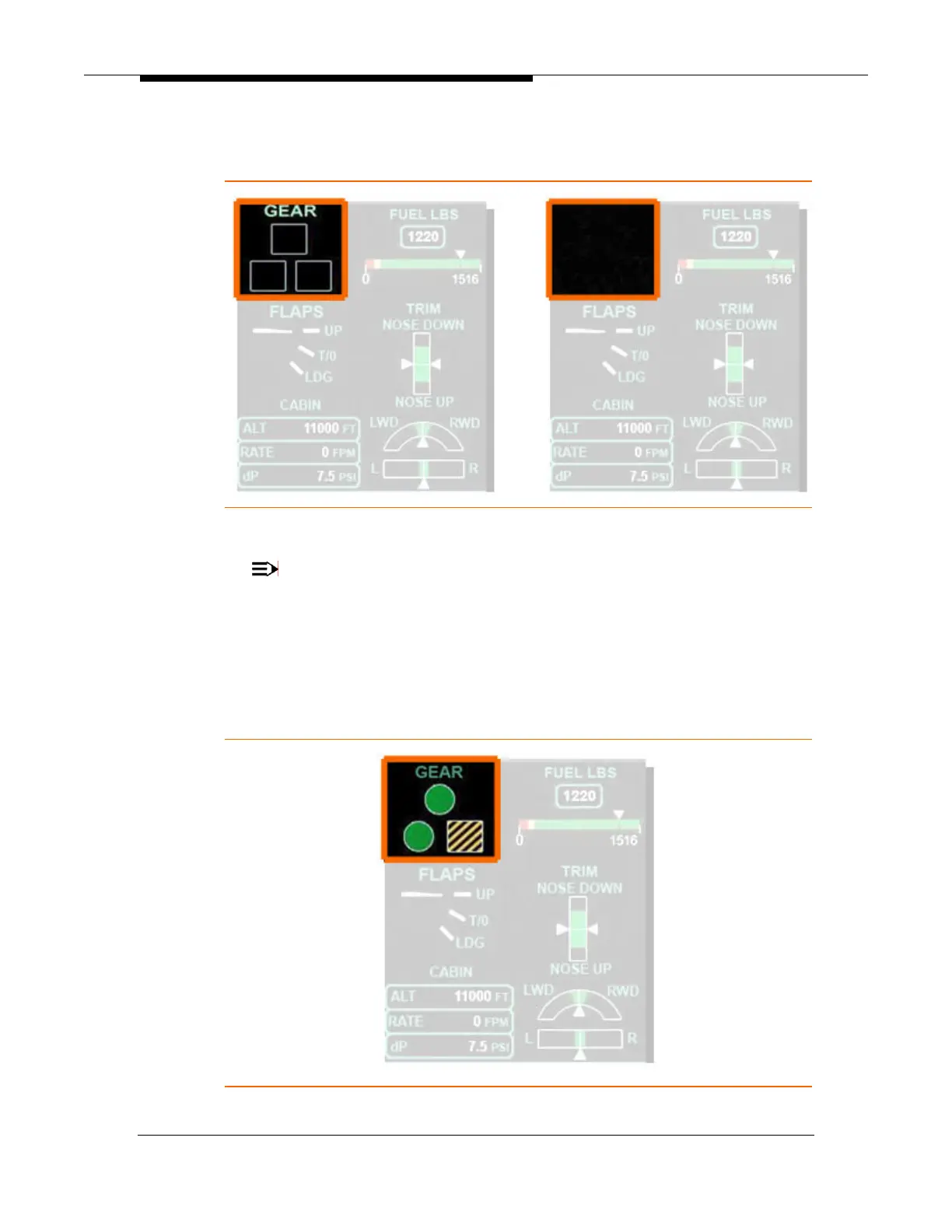

Figure 246. Landing Gear Up and Stowed Indication
NOTE:
During composite mode operation on the PFD, when gear is displayed on
the upper right hand portion of the PFD, gear Up and Stowed position
annunciation does not disappear after ten seconds.
If any indicator is not up and stowed or down and locked, the entire display stays in
view and the failed gear is indicated with amber hatched squares. If any gear is in
transit for more than 15 seconds, a LANDING GEAR FAIL caution message appears
and the in-transit symbol remains displayed.
Figure 247. Landing Gear Fail in Transit Indication
