Section 15. Multi Function Display (MFD) Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 371

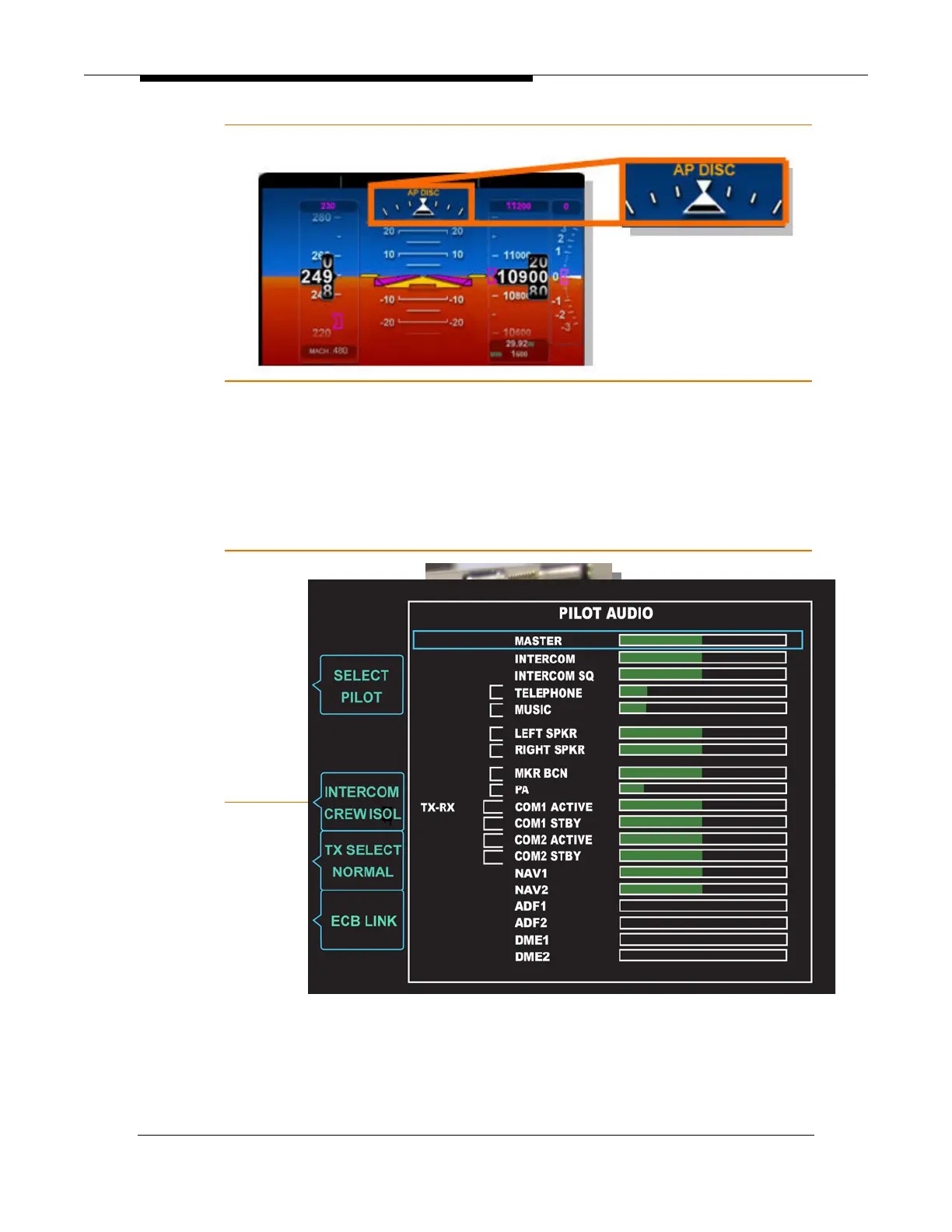

Figure 260. Autopilot Disconnect Display
Fire Warning Alert
⎯ CONDITION — Left or right engine fire detected
⎯ AUDIO — Voice message, “Left Engine Fire!” or “Right Engine Fire!”
⎯ Visual
Figure 261. Fire Armed Button
• Master warning light illuminates, Red FIRE portion of the FIRE/ARMED
button illuminated, L ENG FIRE or R ENG FIRE Warning message.
• The master warning light is extinguished when the pilot presses the
master warning button
• A single press of the FIRE/ARMED
button
ceases fuel flow and automatically closes several engine related control
valves and illuminates the green ARMED portion of the FIRE/ARMED
button.
• A second press of the FIRE/ARMED button discharges extinguishing
agent and prompts a L (R) EXTNGR DSCHG advisory message to
appear.
