5.4 Controls and Indicators
5.4.1 Oxygen Controls

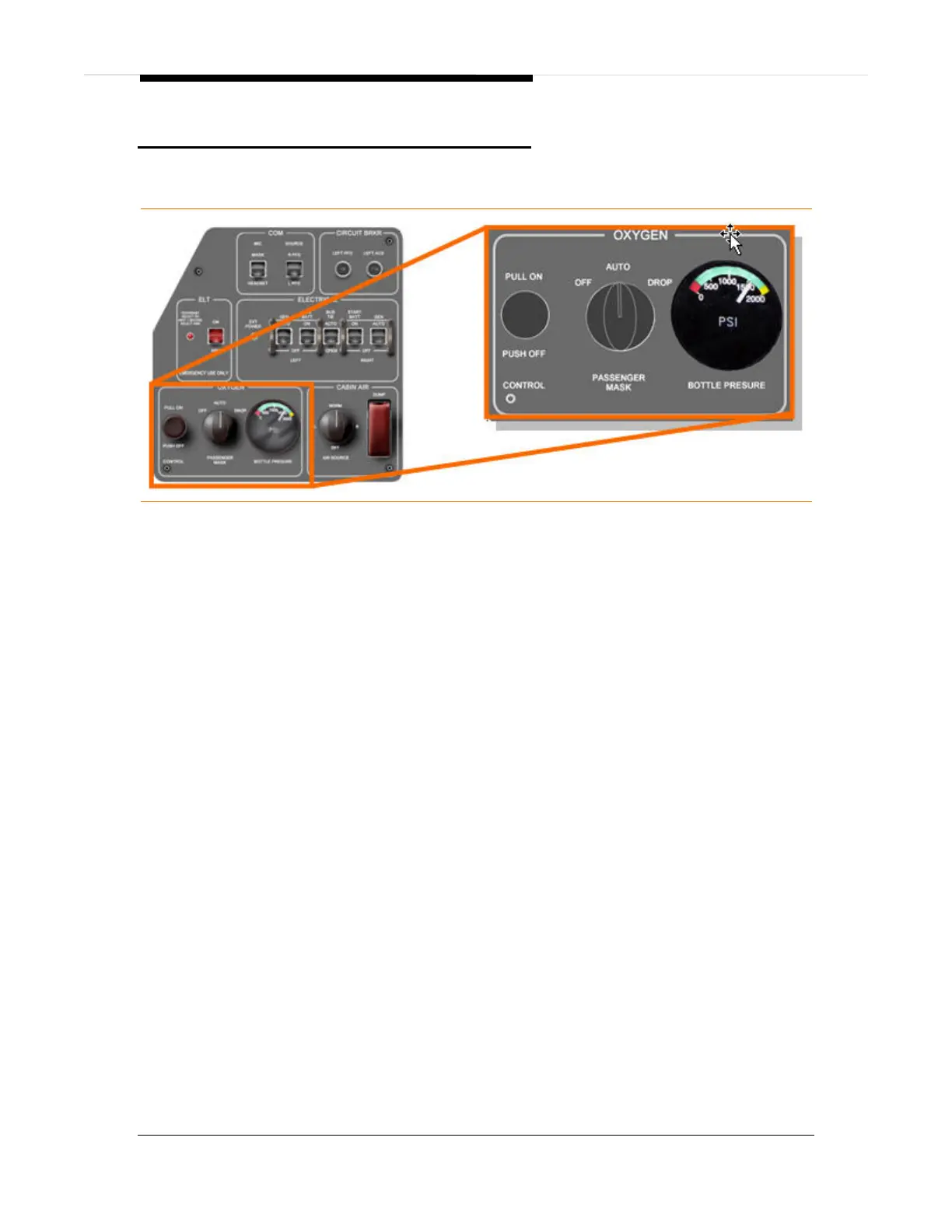

Figure 47. Oxygen Panel Location
OXYGEN CONTROL KNOB
ON .........................Oxygen system is on; pressure-regulated oxygen is available.
OFF........................................................................................ Oxygen system is off.
PASSENGER MASK SELECTOR
OFF........................................................................................ Oxygen system is off.
AUTO.......... Passenger masks automatically deploy at 14,000 foot cabin altitude.
DROP ......................................................... Passenger masks deploy immediately.
OXYGEN BOTTLE PRESSURE GAUGE
Oxygen bottle pressure
