5.5 System Description
5.5.1 Standard Configuration
22 cubic foot oxygen bottle and regulator assembly
Quick-don diluter-demand oxygen mask on the left pilot seat
Five constant flow oxygen masks
⎯ One passenger mask at the right pilot seat
⎯ Four passenger masks
5.5.2 Optional Configuration
40 cubic foot oxygen bottle and regulator assembly
Quick-don diluter-demand oxygen mask on the left pilot seat
Quick-don diluter-demand oxygen mask on the right pilot seat
Five constant flow oxygen masks
⎯ One passenger mask at the right pilot seat
⎯ Four passenger masks
5.5.3 Oxygen Bottle
The airplane is equipped with either a 22 cubic foot or 40 cubic foot oxygen bottle,
located in the left side of the nose compartment.

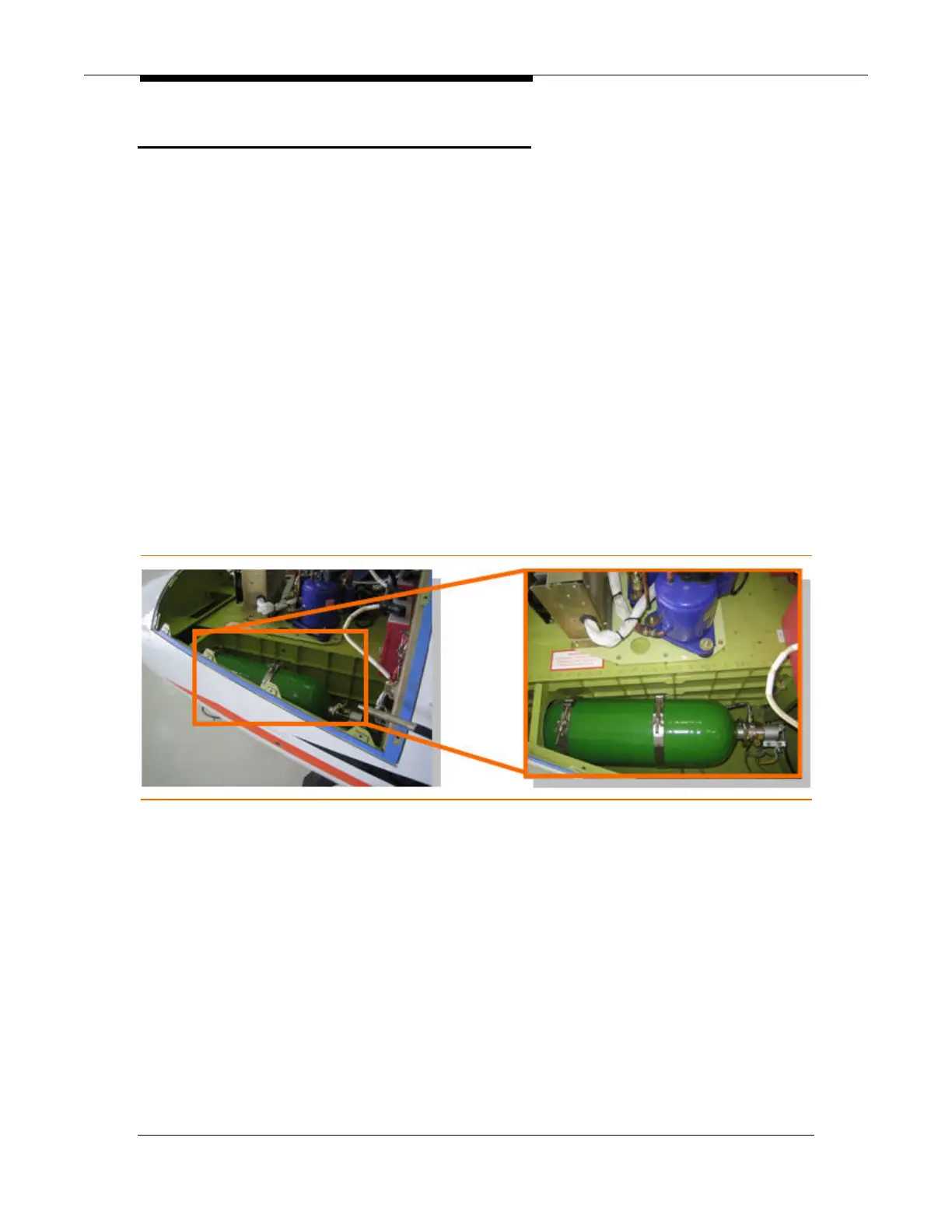

Figure 48. Oxygen Bottle Location (40 Cubic Foot)
