Section 5. Oxygen Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
76 Version 2.0 April 2007
5.5.4 Oxygen Service Panel

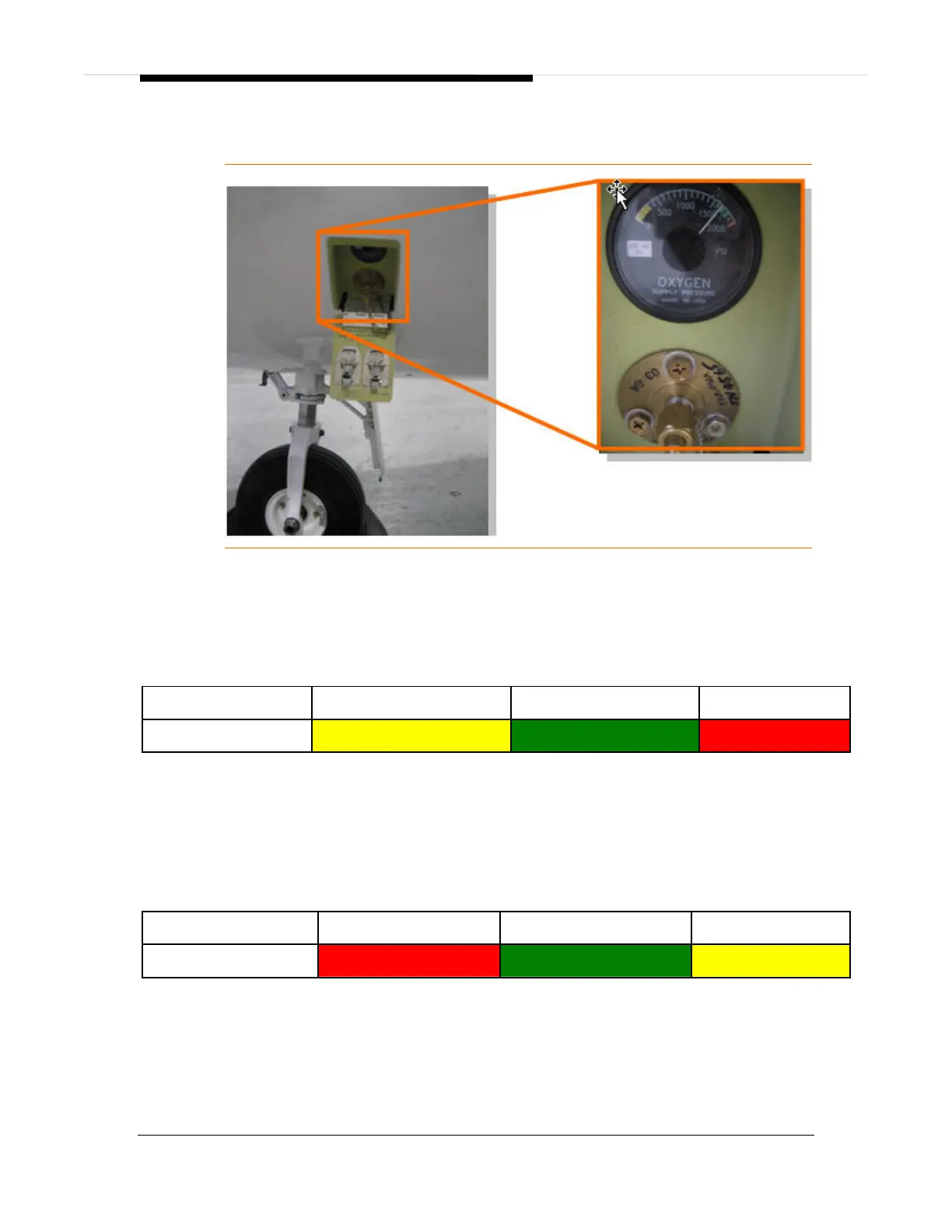

Figure 49. Oxygen Service Panel
An oxygen service panel is located on the left side of the nose. The service panel
contains an analog pressure gauge. The normal servicing range of 1550 to 1850 psi
is indicated by a green band. Low pressure (0 to 300 psi) is indicated by an amber
band. Overpressure (above 1850 psi) is indicated by a red band.
Instrument Caution Range (Yellow) Normal Range (Green) Max. Limit (Red)
Oxygen Pressure (psi) 0-300 psi 1,550-1,850 psi 1,850 psi – Full Scale
5.5.5 Cockpit Oxygen Gauge
Oxygen bottle pressure can also be read on a gauge on the left switch panel. The
caution range and maximum limit pressures are indicated differently than the exterior
service panel gauge. A low oxygen pressure of 0-200 psi is indicated in RED, while
overpressure, >1850 psi is indicated in amber. Normal operating range, 200-1850 psi
is green.
Instrument Caution Range (Red) Normal Range (Green) Max. Limit (Yellow)
Oxygen Pressure (psi) 0-200 psi 200-1,850 psi 1,850 psi – Full Scale
