USING THE ETEK5
14 ETEK5 MANUAL
THE ETEK5 NAVIGATION CONSOLE
The ETEK5 utilises a coloured LED (labelled
A
gure 9A) to display all of the
information that the user requires.
The console looks slightly different if you have upgraded to the ETEK5 OLED board
(see gure 9B). The LED colour information is further supported by the OLED display
(labelled
C
gure 9B).
The various functions of both the Select button
(labelled
B
gure 9A) and the
LED are outlined below.
The select button
is used to:
• Switch the ETEK5 on and off.
• Switch the BS (eye system) on and off.
• To scroll through parameters and edit parameters.
The LED on the navigation console is used to:
• Display the status of the BS (eye system).
• Display the value of a parameter.
• Display the status of the battery.
• Display power up and power down status.
• Display tournament lock status.
• Display that factory settings have been restored.
• To conrm whether a parameter value has been accepted or rejected.
Please note: the information displayed on the LED is different when the ETEK5 OLED
board is installed.

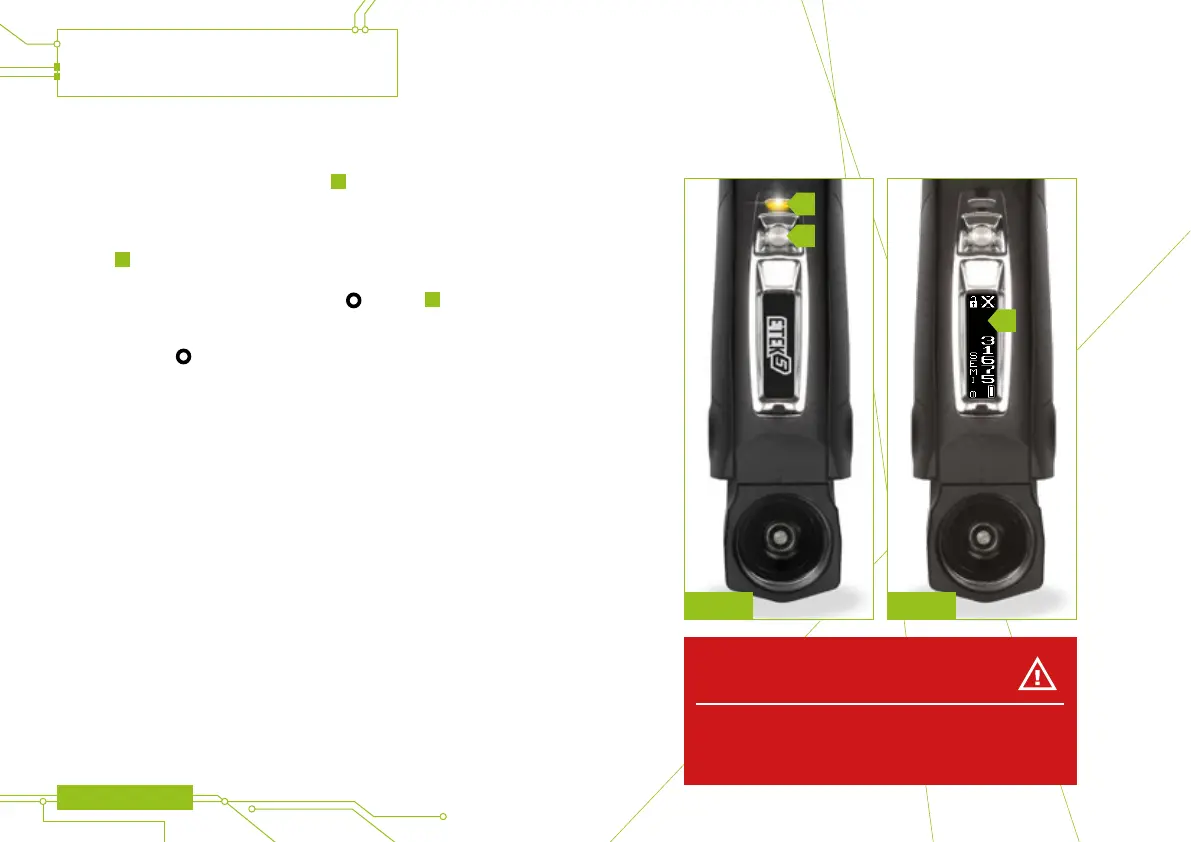

STANDARD CONSOLE OLED DISPLAY
FIG 9A FIG 9B
A
B
C
WARNING!
De-gas your marker, discharging any stored gas in a safe
direction, and remove the barrel, loader, air system and any
paintballs to make the marker easier and safer to work on.
