USING THE ETEK5
16 ETEK5 MANUAL
WARNING!
If the macroline becomes worn, damaged or is the wrong length, replace it
immediately.
Replace the macroline hose with the following grade or higher - 1/4” OD x
1/8”ID Semi Rigid Nylon 11.
If unsure contact your nearest Eclipse Service Centre.
STRAIGHT MACROLINE FITTINGS
A straight macroline tting can be found on the inline regulator swivel
(see gure 11A) and the On/Off Purge System (OOPS) (see gure 11B).
These ttings are secured using thread lock and DO NOT need to be removed
during regular maintenance.
MACROLINE HOSING
To aid the longevity of your macroline hosing, it is very important to remove it
from and install it back into the ttings in the correct manner:
Pull back the collet section of the hose tting and keep the collet depressed.
Pull the macroline hose out of the hose tting and release the collet.
Before installing the macroline hose into the tting ensure that the end has been
trimmed correctly and is the correct length to ensure a tight t in the hose tting.

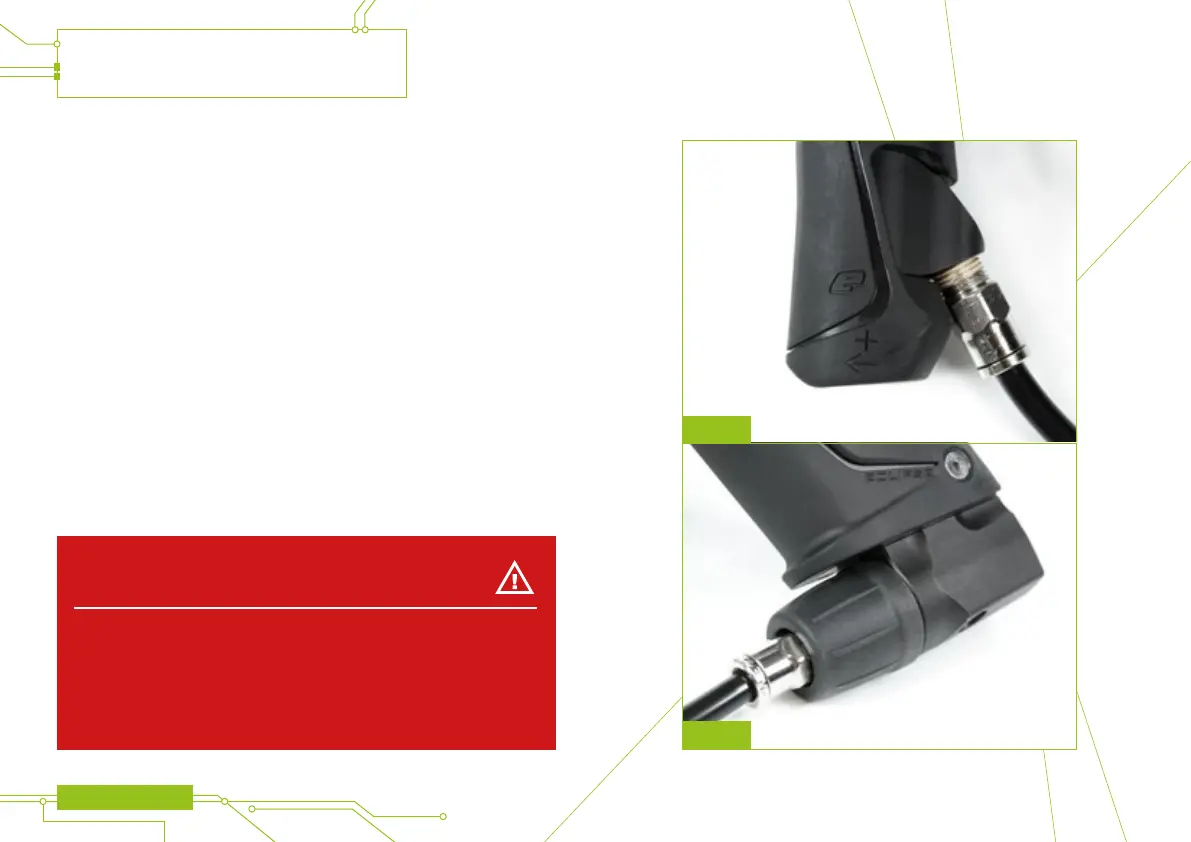

FIG 11A
FIG 11B
