MAINTENANCE
CONTINUED
Clean and check the condition of the single internal 005 NBR 90 o-ring in the
front of the OOPS insert and replace if necessary (see gure 31G). Lubricate this
o-ring liberally using Eclipse Grease.
Lubricate the narrow end of the OOPS pin with a smear of Eclipse Grease and
push the OOPS pin, narrow end rst, into the OOPS insert so that it sits in the
OOPS insert and pokes through to the front (see gures 31H & 31I).
Screw the OOPS insert back into the OOPS body ensuring that the o-ring end
goes in rst.
Replace the push rod into its designated slot (see gure 31J) then side 004 NBR
70 o-rings onto both ends of the push rod. Make sure the push rod is centred in
the OOPS body (see gure 31K).
Slide the OOPS knob over the OOPS body and screw the OOPS knob onto the
OOPS body (see gure 31L).
Reconnect the macroline hose to the tting on the OOPS body (see gure 31M).
You have now successfully cleaned and maintained your On/Off Purge System.

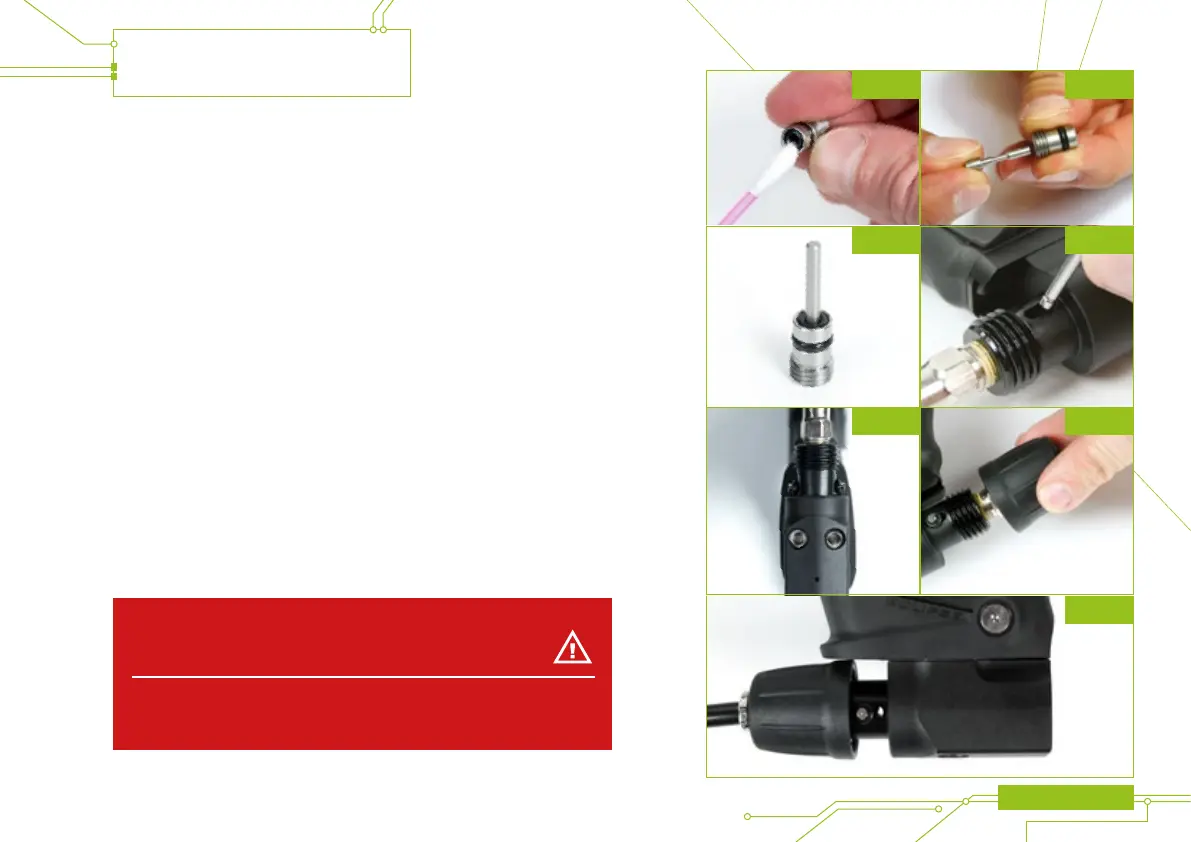

FIG 31G
FIG 31I
FIG 31H
FIG 31J
WARNING!
If you are unsure about performing a maintenance procedure please
contact your nearest service centre.
