THE SHAFT4 BARREL
The ETEK5 comes as standard with an Eclipse Shaft4 barrel.
1,4
The barrel screws into the front of the ETEK5 using a right hand thread meaning
that if you hold the ETEK5 pointing away from you the barrel screws into the body
in a counter-clockwise direction.
2

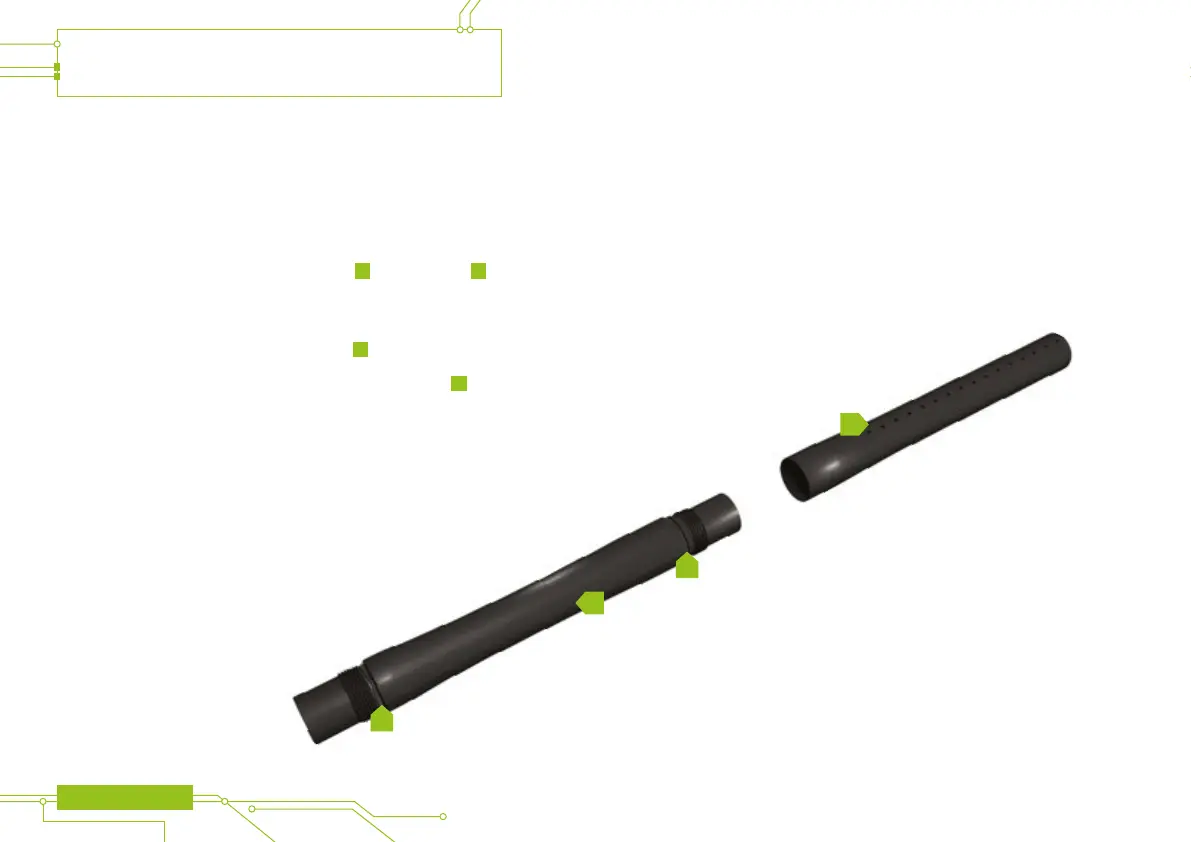

The barrel comprises of two parts, a barrel back
A
and a barrel tip
B
.
The two parts are joined together with a left hand thread meaning that if you hold
the barrel, with the back section nearest you, the barrel tip screws in a clockwise
direction.
On the barrel back there is a 016 NBR 70 o-ring
C
which prevents the Shaft4
barrel from vibrating loose from the ETEK5 body when the marker is red.
There is also a 016 NBR 70 o-ring on the front of the barrel back
D
helps with
alignment when the two barrel sections are screwed together.
Replace and lubricate these o-rings with Eclipse Grease as necessary.
1 The bore size of your Shaft4 may vary according to the model of ETEK5 that you have.
2 The ETEK5 will only accept COCKER threaded barrels. Do not use any other type of
barrel thread.
3 The Eclipse Shaft4 tip and back barrel sections are not interchangeable with older version
Shaft tip and back barrel sections (including Shaft3 barrel kits).
4 ThemodelofbarrelaccompanyingyourETEK5maydierfromthatstatedinthismanual.
TECHNICAL RESOURCES
66 ETEK5 MANUAL
B
A
C
D
