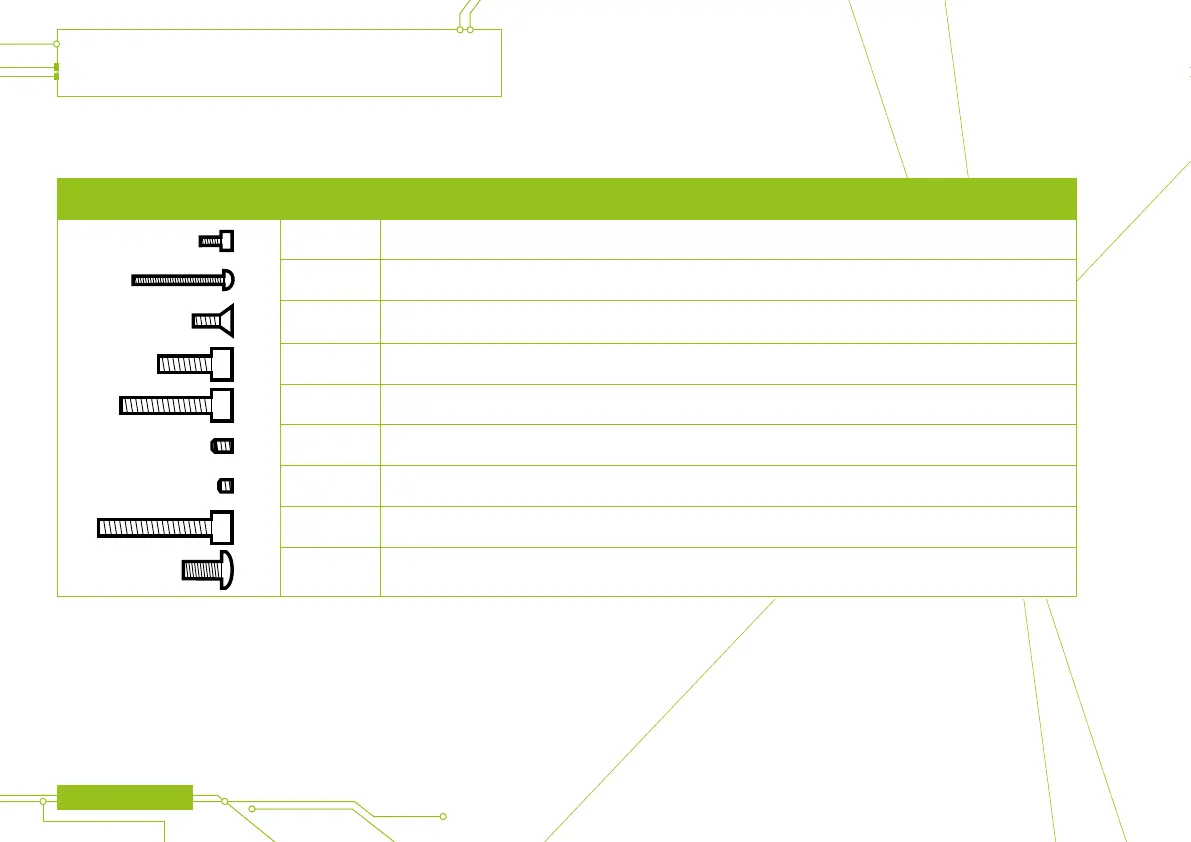

COMMON SCREW SIZE CHART
SCREW TYPE QTY DESCRIPTION
3
Solenoid manifold screws ( M2.5X5 cap head socket)
2
Solenoid screw (2) ( M1.6X16 Phillips button head )
6
Rubber grip screw (4), BS covers screw (2)
(6-32UNC x 5/16 countersunk socket)
1
Short feed neck screw (10-32UNF x 1/2” cap head socket)
1
Long feed neck screw (10-32UNF x 5/8” cap head socket)
3
Trigger adjustment screw (6-32UNC x 3/16” socket set screw)
1
Trigger pin retaining screw (6-32UNC x1/8” socket set screw)
2
OOPS screw (10-32UNF x 1” socket set screw)
2
Frame screw (10-32UNF x 3/8” socket button head)
