4.2.2.2 Mounting
You can attach a pole(not included) to a permanent structure and then
attach the sensor package to it (see Figure 8).
The U-Bolts will accommodate a pole diameter of 1.25-2 inches (pole
not included).
1. Install the base on a pole (1.25inch~2inch) as Figure 8.

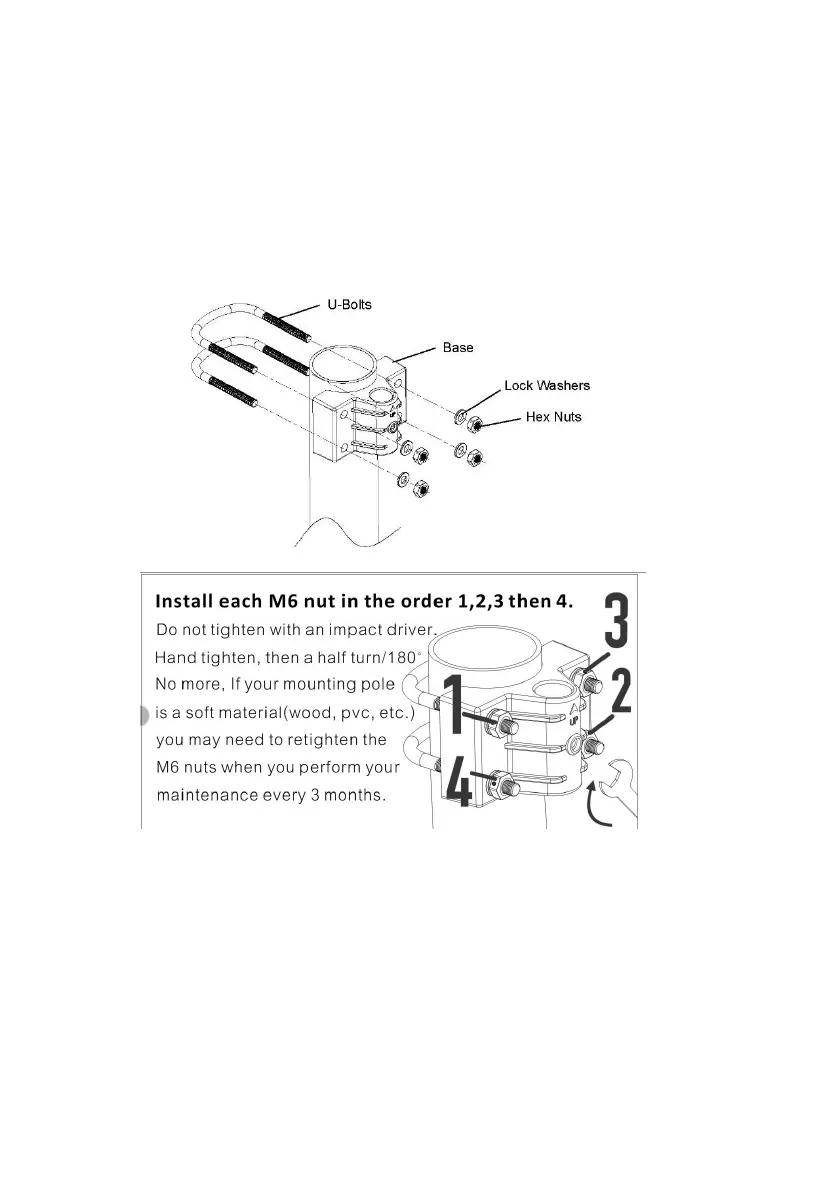

Figure 8: Sensor package mounting diagram 5-1
2. Pass the connector cord through the arm tube as Figure 9:
