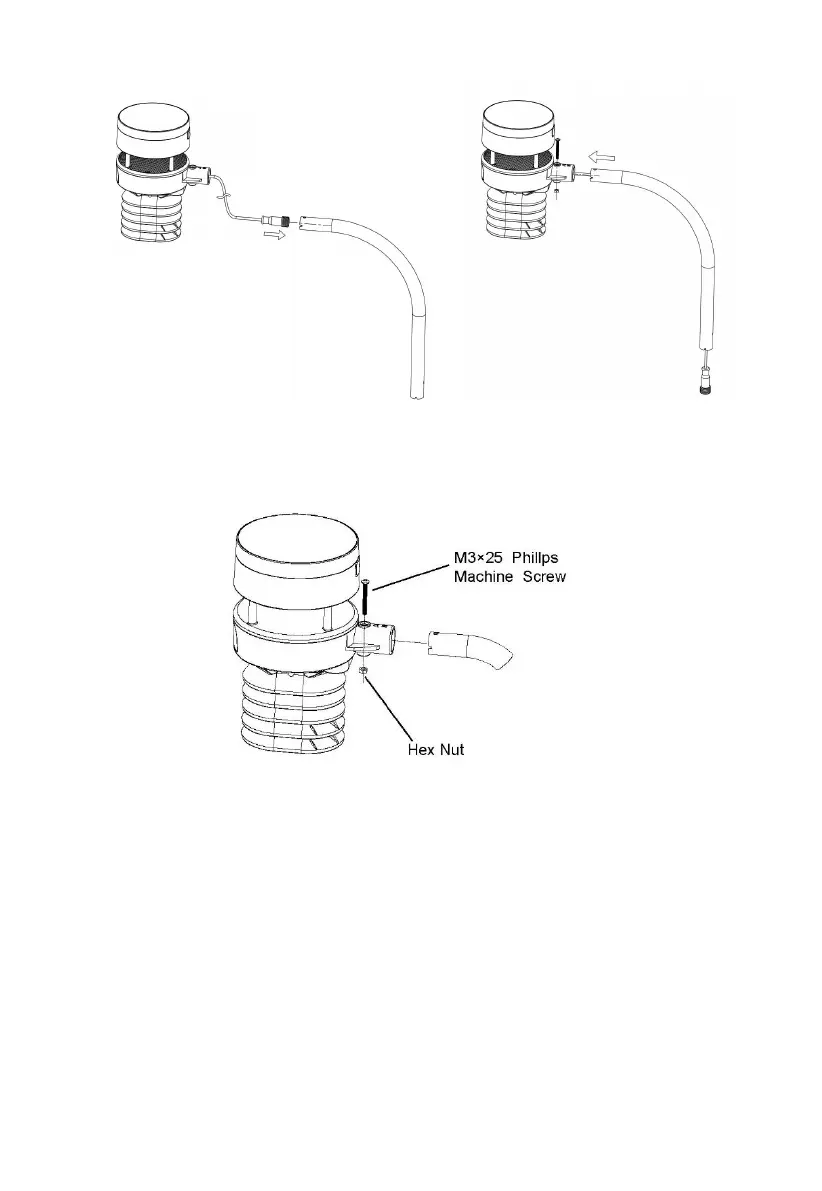

Figure 9: Sensor package mounting diagram 5-2
3. Attaching the arm tube to the Ultrasonic Sensor as Figure 10.
Figure 10: Sensor package mounting diagram 5-3
4. Insert the arm tube into the base as Figure 11. Be sure to line up the
small hole in the arm with the holes in the base. Insert the machine
screw through the holes in the base and arm. ( if you don’t need to
power up the heater, you should keep the power cord terminal inside
the mounting arm and this can make the installation looks neat and
tidy. You may take it out when needed. )
